SW-18B - Scag Walk-Behind Mower, 18hp Briggs & Stratton (SN: 0690 - 9999) CUTTER DECK SLM-48W Parts Diagram

Walk-Behind Mower, 18hp Briggs & Stratton

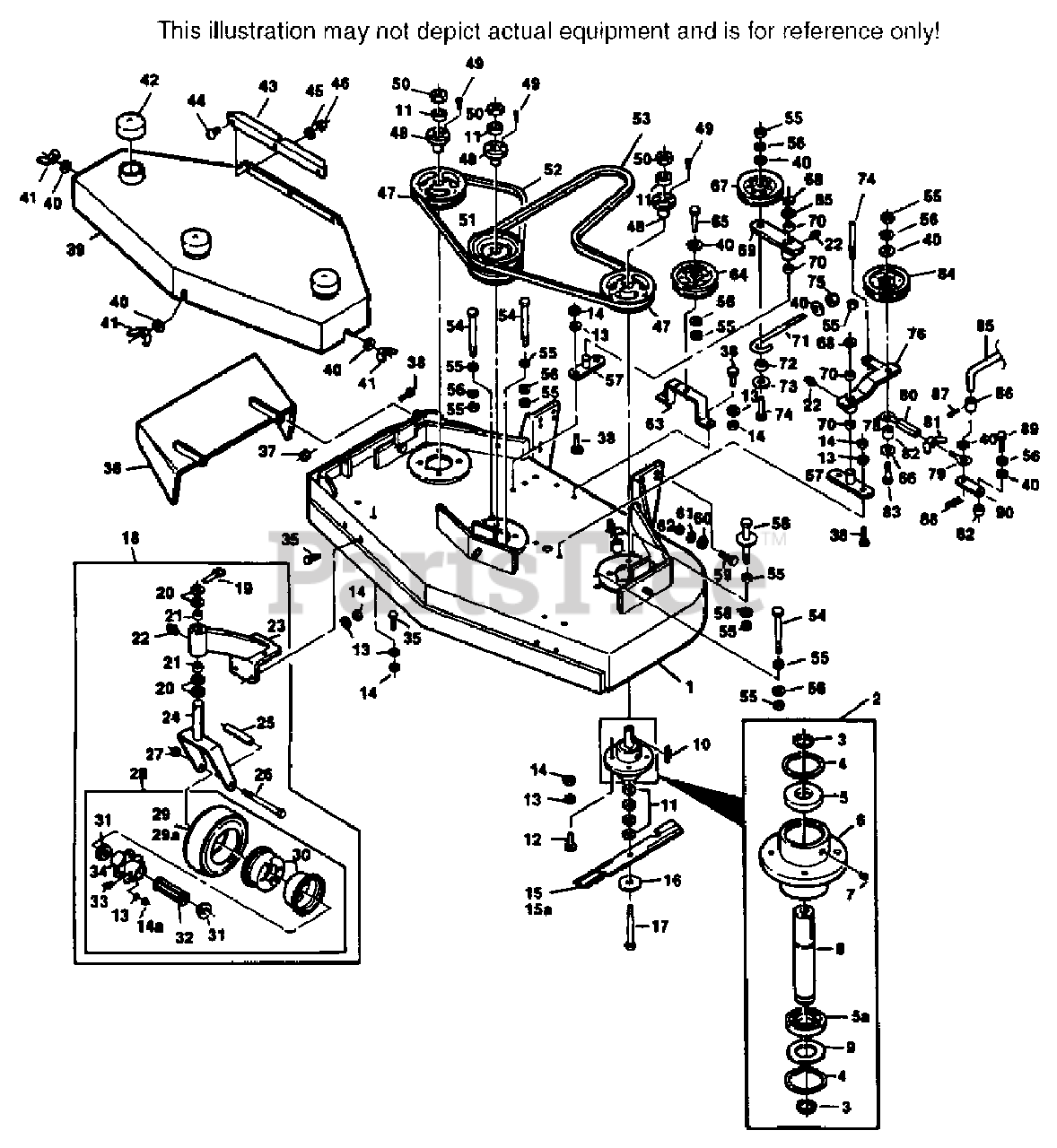

CUTTER DECK SLM-48W Parts Diagram

  • Title

1

Scag 46152

CUTTER DECK WLD(INCL. DECALS)

$

$

Not available

2

Scag 46020

CUTTER SPINDLE ASSY.(INCL. 3-9)
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

3

Scag 04050-04

RETAINING RING, 1" EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16 INT.-BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101

BEARING, CUTTER SPINDLE
(Superseded to 48101-02)

$24.99

$

Usually ships in 2-12 days

0

5A

UNKNOWN

$

$

Not available

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

7

Scag 48114-02

GREASE FITTING, STR. 5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$52.99

$

In Stock, only 3 left!

0

9

Scag 04041-02

WASHER, 1-15/16 X 2-13/32 X 16 GA.

$18.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

HEX HEAD BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14A

UNKNOWN

$

$

Not available

15

Scag 48110

CUTTER BLADE, 16-1/2" STD.
(Superseded to 481706)

$20.99

$

In Stock, Qty 20+

0

15A

Scag 48184

CUTTER BLADE, 16-1/2" HIGH LIFT
(Superseded to 481710)

$40.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

FLAT WASHER, 5/8W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.49

$

In Stock, Qty 16

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2 LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 20+

0

22

Scag 48114-01

GREASE FITTING, STR. 1/4-28
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-22)

$148.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE WLD.

$65.99

$

In Stock, Qty 11

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HEAD BOLT, 1/2-13 X 5-1/2

$4.49

$

In Stock, Qty 20+

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 48006-01

WHEEL ASSY.(INCL. 13-14, 29-34)
(Superseded to 48307)

$151.99

$

Usually ships in 2-12 days

0

29

Scag 48006-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

29A

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$20.99

$

In Stock, only 2 left!

0

30

Scag 48006-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, Qty 20+

0

33

Scag 48114-03

GREASE FITTING, 45' 1/4-28

$10.99

$

In Stock, Qty 16

0

34

Scag 48006-05

HUB ASSY. W/BOLTS, CASTER WHEEL
(Superseded to 481768)

$64.99

$

Usually ships in 2-12 days

0

35

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 45029

DISCHARGE CHUTE WLD.
(Superseded to 461292)

$68.99

$

In Stock, only 2 left!

0

37

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

38

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 46149

BELT COVER ASSY.(INCL. DECALS)

$

$

Not available

40

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

Scag 04022-04

WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

42

Scag 48098

SPINDLE SHIELD

$2.49

$

In Stock, Qty 13

0

43

Scag 42184

BELT COVER SKIRT

$19.99

$

Usually ships in 2-12 days

0

44

SLT. TRUSS HD.MACH.SCREW, 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

45

LOCKWASHER, SPRING 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

46

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

47

Scag 48127

PULLEY(INCL. 48-49)
(Superseded to 482744)

$

$

Not available

48

Scag 48141

TAPER HUB

$29.99

$

In Stock, Qty 5

0

49

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

51

Scag 48129

PULLEY, DOUBLE(INCL. 48-49)
(Superseded to 48923)

$110.99

$

In Stock, only 1 left!

0

52

Scag 48087

BELT, RH BLADE DRIVE

$43.99

$

In Stock, Qty 5

0

53

Scag 48088

BELT, BLADE DRIVE

$69.99

$

Usually ships in 2-12 days

0

54

HEX HEAD BOLT, 3/8-16 X 5

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

55

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

56

LOCKWASHER, SPRING, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

57

Scag 45037

IDLER PIVOT WLD.

$30.99

$

Usually ships in 2-12 days

0

58

Scag 45098

BELT GUIDE WLD.

$15.99

$

Usually ships in 2-12 days

0

59

HEX HEAD BOLT, 7/16-14 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

60

WASHER, 15/32 X 59/64 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

61

LOCKWASHER, SPRING, 7/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

62

HEX NUT, 7/16-14, ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

63

Scag 45012

IDLER PULLEY SUPPORT

$

$

Not available

64

Scag 48068

PULLEY, BELT GUIDE

$43.99

$

Usually ships in 2-12 days

0

65

HEX HD. BOLT, 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

67

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 20+

0

68

Scag 04050-02

RETAINING RING, 3/4 EXT.-"E"69

$0.99

$

In Stock, Qty 7

0

69

Scag 46081

IDLER ARM ASSY.(INCL. 22 & 70)

$46.99

$

Usually ships in 2-12 days

0

70

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, Qty 13

0

71

Scag 43028

ROD, IDLER PULL, J

$4.99

$

In Stock, only 2 left!

0

72

Scag 43077

SPACER, J PULL ROD

$4.99

$

In Stock, only 1 left!

0

73

Scag 04041-11

WASHER, 3/8 X 1-1/2 X 16 GA.

$1.99

$

In Stock, Qty 20+

0

74

HEX HEAD BOLT, 3/8-16 X 2-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

75

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

76

Scag 46080

IDLER ARM ASSY.(INCL. 22 & 70)
(Superseded to 46145)

$

$

Not available

76

Scag 46145

IDLER ARM ASSY.(INCL. 22 & 70)

$

$

Not available

?77

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

0

?78

Scag 04070-02

EYEBOLT, LH

$

$

Not available

79

Scag 04070-01

EYEBOLT, RH

$26.99

$

In Stock, only 1 left!

0

80

Scag 43025

TURNBUCKLE

$14.99

$

In Stock, only 1 left!

0

81

Scag 04022-02

WING NUT, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

82

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

83

HEX HEAD BOLT, 3/8-16 X 2-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE. 48150 STD. IDLER REQUIRES 46080 IDLER ARM ASSEMBLY AND 2-1/2" LONG IDLER MOUNTING BOLT. 48269 WIDE IDLER REQUIRES 46145 IDLER ARM ASS'Y AND 2-3/4" LONG IDLER MOUNTING BOLT.

$

$

Not available

84

Scag 48150

IDLER PULLEY, BELT CLUTCH - STD.
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

84

Scag 48269

IDLER PULLEY, BELT CLUTCH - WIDE
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

85

Scag 43067

BLADE CLUTCH ROD

$

$

Not available

86

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

87

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

88

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

89

HEX HEAD BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

90

Scag 45084

CAM LINK WLD.
(Superseded to 42057)

$84.99

$

Usually ships in 2-12 days

0
