SW-16BVE - Scag Walk-Behind Mower, 16hp Vanguard (SN: 50001 - 59999) INSTRUMENT PANEL Parts Diagram
Walk-Behind Mower, 16hp Vanguard

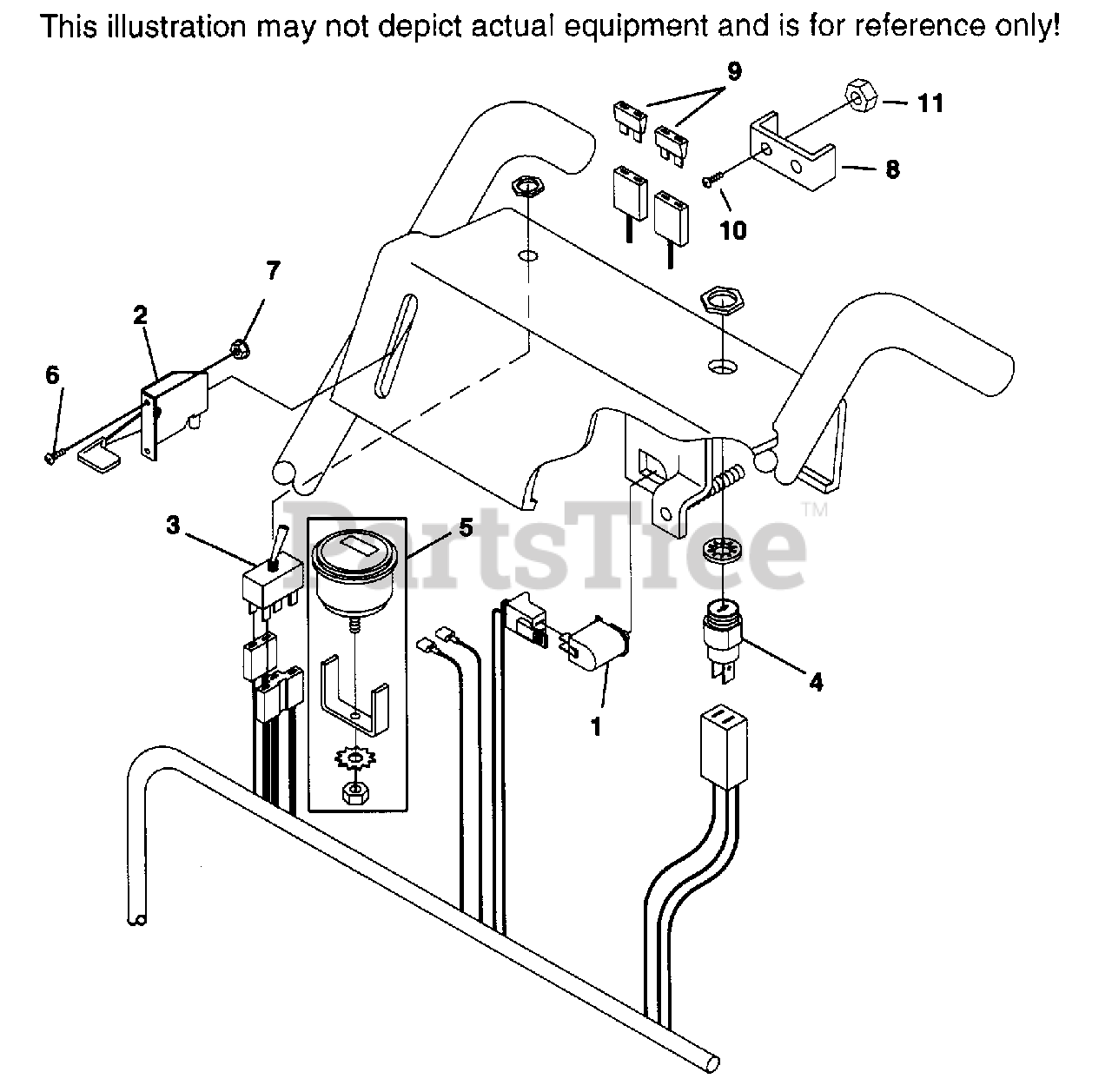

INSTRUMENT PANEL Parts Diagram
Scag 48717
SWITCH, NEUTRAL INTERLOCK
$9.99
$
In Stock, only 1 left!
Scag 48787
ENGAGEMENT SWITCH, ELECTRIC CLUTCH(INCLUDES
$37.99
$
In Stock, only 1 left!
Scag 48609
KEY SWITCH(INCLUDES HARDWARE)
$13.99
$
In Stock, only 1 left!
Scag 48023
HOUR METER(DEALER INSTALLED OPTION)
$157.99
$
Usually ships in 2-12 days
6
SCREW, #10-32 X .50 PHILLIPS WASHER HEAD
$
$
Not available
Scag 04019-01
NUT, #10-32 SERRATED FLANGE HEX HEAD
$0.99
$
Usually ships in 2-12 days
NS
CLAMP, WIRE HARNESS
Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.
$
$
Not available
