SW-16BVE - Scag Walk-Behind Mower, 16hp Vanguard (SN: 50001 - 59999) CUTTER DECK 32" Parts Diagram

Walk-Behind Mower, 16hp Vanguard

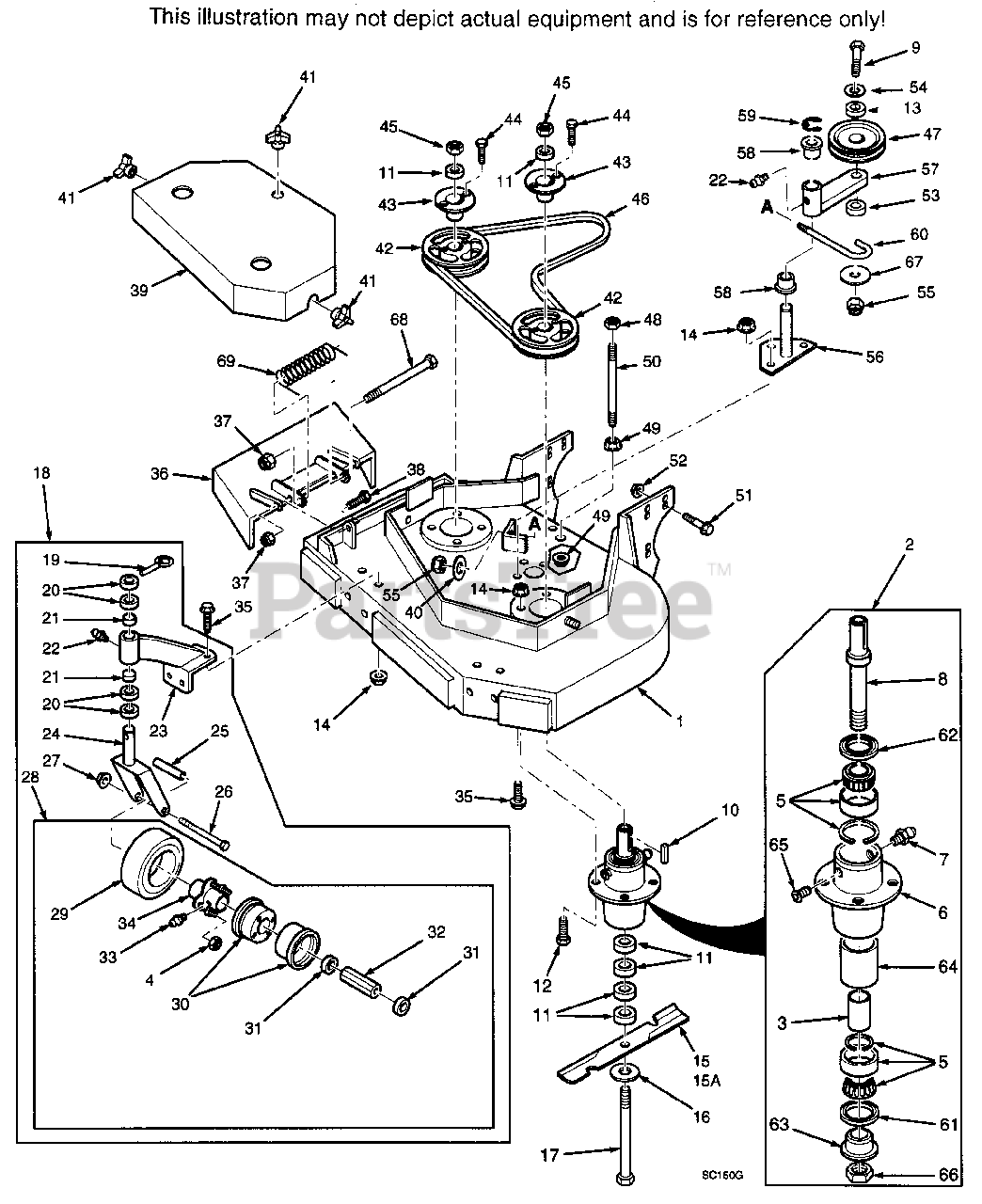

CUTTER DECK 32" Parts Diagram

  • Title

1

Scag 46740

CUTTER DECK(INCLUDES DECALS)
(Superseded to 461553)

$1391.99

$

Usually ships in 2-12 days

0

2

Scag 46631

CUTTER SPINDLE ASSEMBLY
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

3

Scag 43296

SPACER, INSIDE

$8.49

$

In Stock, only 2 left!

0

4

Scag 48307-08

TAPERED NUT, 5/16-24
(Superseded to 481771)

$1.99

$

Usually ships in 2-12 days

0

5

Scag 481022

TAPERED BEARING(TWO)

$61.99

$

In Stock, Qty 15

0

6

Scag 43294

SPINDLE HOUSING, TAPERED BEARING
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

7

Scag 48114-04

GREASE FITTING STR. 5/16

$1.49

$

In Stock, Qty 20+

0

8

Scag 43298

SPINDLE SHAFT
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

9

HEX HEAD BOLT, 3/8-16 X 3-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 04063-08

KEY, 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43278

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-10

HEX HEAD BOLT, 5/16-18 X 1-1/4"

$0.99

$

In Stock, Qty 14

0

13

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

14

Scag 04019-03

NUT, 5/16-18 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

15

Scag 48108

CUTTER BLADE, 18"
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

15A

Scag 48185

CUTTER BLADE, 18" HIGH LIFT
(Superseded to 481711)

$41.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

FLAT WASHER, 5/8" W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HD. BOLT, 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSEMBLY(INCLUDES 19-28)

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.99

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2" THICK

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 5

0

22

Scag 481050

SPRING, CHUTE RETURN
(Superseded to 482245)

$11.99

$

In Stock, Qty 5

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-23)

$152.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE

$67.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HD. BOLT, 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 15

0

27

Scag 04021-07

HEX LOCKNUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

28

Scag 48307

WHEEL ASSY.(INCL. 4,29-34)

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

Scag 48006-03

INNER TUBE ONLY(NOT SHOWN)
(Superseded to 481773)

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING 45 DEG., 1/4-28

$5.49

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSY.(INCL. BOLTS)
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

CAPSCREW, 5/16-18 X 3/4" SERR. FLANGE HEX

$0.99

$

In Stock, Qty 10

0

36

Scag 46725

DISCHARGE CHUTE
(Superseded to 461291)

$97.99

$

Usually ships in 2-12 days

0

37

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

38

HEX HEAD BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

39

Scag 46741

BELT COVER ASSEMBLY
(Superseded to 46797)

$349.99

$

Usually ships in 2-12 days

0

40

Scag 04041-07

FLAT WASHER, 3/8"(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

42

Scag 48924

PULLEY
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

43

Scag 48926

TAPERED HUB, 1.125 BORE

$31.99

$

In Stock, Qty 20+

0

44

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

Scag 48204

BELT, BLADE DRIVE

$41.99

$

In Stock, Qty 5

0

47

Scag 48269

PULLEY, BELT GUIDE
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

48

HEX NUT, CENTER LOCKNUT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

50

Scag 04004-02

SUPPORT, BELT COVER

$1.99

$

Usually ships in 2-12 days

0

51

Scag 04017-42

CAPSCREW, 7/16-14 X 1" SERR. FLANGE

$2.49

$

In Stock, Qty 10

0

52

Scag 04019-05

HEX NUT, 7/16-14 SERRATED FLANGE

$0.99

$

In Stock, Qty 12

0

53

Scag 43277

SPACER, J-HOOK

$6.49

$

In Stock, only 1 left!

0

54

Scag 04041-07

FLAT WASHER

$0.99

$

In Stock, Qty 20+

0

55

Scag 04021-09

NUT, 3/8-16 ELASTIC STOP

$0.99

$

In Stock, Qty 20+

0

56

Scag 45423

IDLER PIVOT

$77.99

$

Usually ships in 2-12 days

0

57

Scag 46748

IDLER ARM ASSY.(INCL. 22 & 58)

$100.99

$

Usually ships in 2-12 days

0

58

Scag 48100-02

BUSHING, 1-1/8 X 1.0 FLANGED

$3.99

$

In Stock, only 2 left!

0

59

Scag 04050-05

RETAINING RING, 1-1/8" EXT. "E"

$0.99

$

In Stock, Qty 20+

0

60

Scag 44078

J-HOOK

$6.99

$

In Stock, only 2 left!

0

61

Scag 481025

SEAL, CUTTER SPINDLE

$4.99

$

In Stock, Qty 20+

0

62

Scag 481024

SEAL, CUTTER SPINDLE

$4.99

$

In Stock, Qty 20+

0

63

Scag 43297

SPINDLE BUSHING

$9.99

$

In Stock, only 2 left!

0

64

Scag 43312

SPACER, OUTSIDE

$19.99

$

In Stock, only 1 left!

0

65

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$9.49

$

Usually ships in 2-12 days

0

66

Scag 481035

NUT,

$7.99

$

In Stock, only 3 left!

0

67

Scag 04041-12

FLAT WASHER

$0.99

$

In Stock, Qty 9

0

68

HEX HEAD BOLT, 5/16-18 X 4-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

69

UNKNOWN

$

$

Not available
