SW-16BV - Scag Walk-Behind Mower, 16hp Vanguard (SN: 70000 - 79999) Engine Deck Parts Diagram

Walk-Behind Mower, 16hp Vanguard

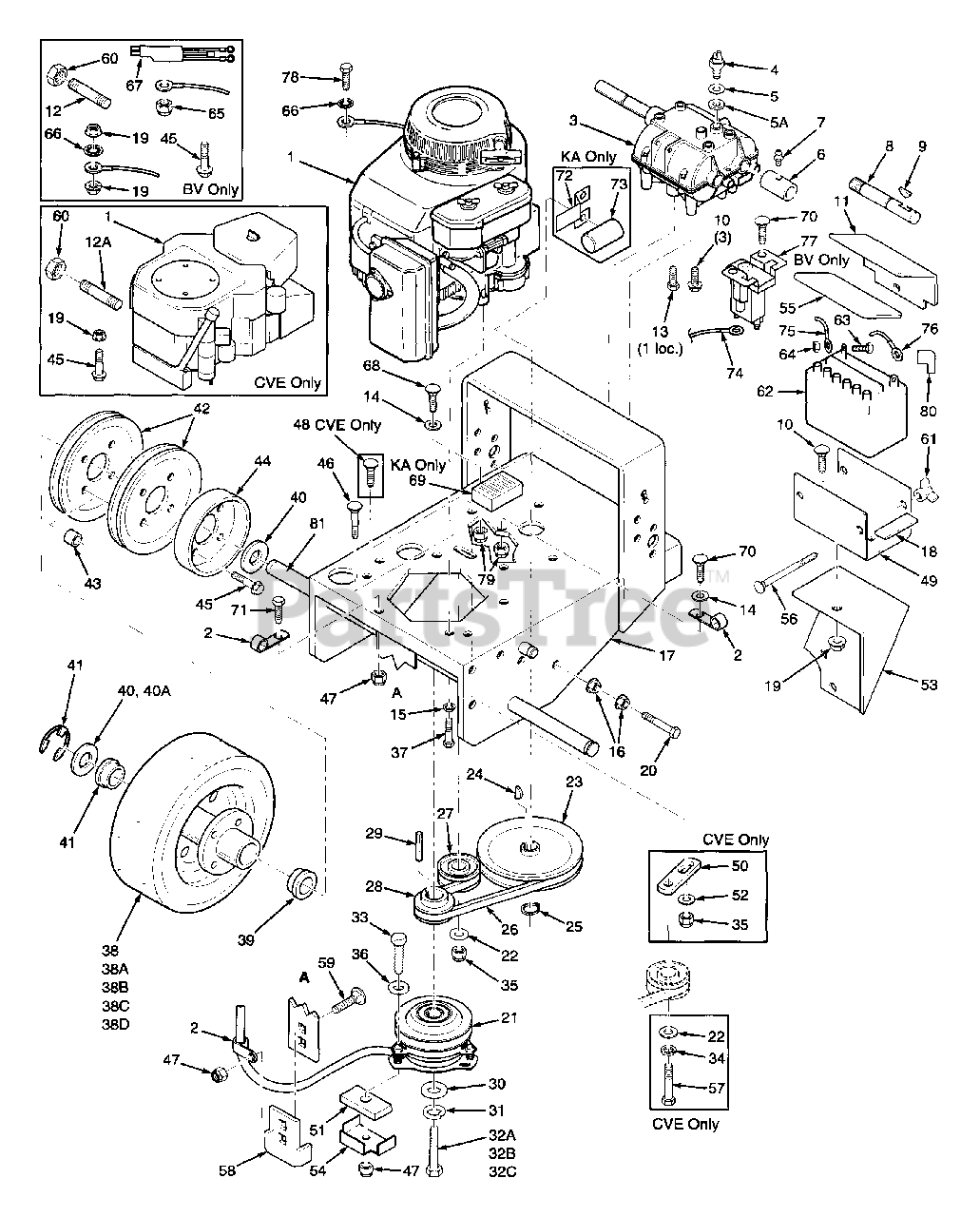

Engine Deck Parts Diagram

  • Title

1

Scag 481065

Engine, 16HP Briggs Vanguard

Note: 303772 0345 02

$

$

Not available

1

Scag 48766

Engine, 16HP BVE

$

$

Not available

1

Scag 481066

Engine, 18HP Briggs Vanguard

$

$

Not available

2

Scag 48030-09

Cable Clamp

$1.49

$

In Stock, Qty 5

0

3

Scag 48331

Transmission, 5-speed

Note: Peerless 700-026

$857.99

$

In Stock, only 1 left!

0

4

Scag 48231

Neutral Safety Switch

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

Fibre Washer, thin

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

Fibre Washer, thick

$0.99

$

Usually ships in 2-12 days

0

6

Scag 48851

Coupler, Jackshaft
(Superseded to 46513)

$54.99

$

Usually ships in 2-12 days

0

7

Scag 48114-05

Grease Fitting, straight 1/4-28

$1.49

$

In Stock, Qty 9

0

8

Scag 48242

Jackshaft

Note: Fits SW 52, 61 & 72

$40.99

$

Usually ships in 2-12 days

0

9

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

10

Scag 04003-12

Bolt, 5/16-18 X 3/4" Carriage

$0.99

$

In Stock, Qty 20+

0

11

Scag 421408

Battery Cover

$

$

Not available

12

Scag 48402-03

Oil Drain Extension 5-1/4"

$10.99

$

Usually ships in 2-12 days

0

12A

Scag 48402-04

Oil Drain Extension 4-3/4"

Note: Not used on this model.

$10.99

$

Usually ships in 2-12 days

0

13

Scag 04001-08

Bolt, 5/16-18 X 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-14

Flat Washer 1/4" (.312 X .75 X .065)

$0.99

$

In Stock, only 4 left!

0

15

Scag 04030-03

Lock Wshr. 5/16"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

17

Scag 46766

Engine Deck
(Superseded to 461539)

Note: Fits SW 52, 61 & 72

$

$

Not available

18

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

19

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 8

0

21

Scag 48786

Electric Clutch
(Superseded to 461074)

$507.99

$

Usually ships in 2-12 days

0

22

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

23

Scag 48197

Pulley, Transmission Input

$35.99

$

In Stock, only 1 left!

0

24

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 12

0

25

Scag 04050-09

Retaining Ring, 5/8" Ext, Basic

$0.99

$

In Stock, Qty 20+

0

26

Scag 48203

Belt, Transmission Drive

$27.99

$

In Stock, only 1 left!

0

27

Scag 481048

Idler Pulley, Transmission
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

28

Scag 48945

Pulley, Traction Drive
(Superseded to 481666)

$51.99

$

Usually ships in 2-12 days

0

29

Scag 04063-19

Key, 1/4 x 1/4 x 3/4"

$0.99

$

In Stock, only 2 left!

0

30

Scag 04041-18

Flat Washer, 7/16" Special

$

$

Not available

31

Scag 04030-05

Lock Washer, 7/16"

$0.99

$

In Stock, Qty 5

0

32A

Scag 04001-101

Bolt, 7/16-20 x 2-1/2" Hex Head

Note: Not used on this model.

$1.99

$

In Stock, only 3 left!

0

32B

Scag 04001-102

Bolt, 7/16-20 x 1-3/4" Hex Head

Note: Not used on this model.

$1.49

$

In Stock, Qty 11

0

32C

Scag 04002-08

Cpsrw, M10-1.5 x 60 Metric Hex Hd

Note: Not used on this model.

$2.49

$

Usually ships in 2-12 days

0

33

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

34

Scag 04030-04

Lockwasher, Spring 3/8"

Note: Not used on this model.

$0.99

$

In Stock, Qty 8

0

35

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

36

Scag 04040-15

Flat Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04018-01

Bolt, M8-1.25 x M25 Metric Hex Hd

Note: Not used on this model.

$

$

Not available

38

Scag 48192

Wheel Assembly

Note: incl. 38A-38B; Fits SW 36, 48, 52, 61 & 72

$342.99

$

Usually ships in 2-12 days

0

38

Scag 48253

Wheel Assembly

Note: incl 38C-38D, (SW 32);

$315.99

$

Usually ships in 2-12 days

0

38A

Scag 48192-02

Tire, 13 x 6.50-6, 2-ply
(Superseded to 481860)

Note: Fits SW 36, 48, 52, 61 & 72

$175.99

$

Usually ships in 2-12 days

0

38B

Scag 48192-03

Rim & Bearing Assembly
(Superseded to 481859)

Note: Incl 39; Fits SW 36, 48, 52, 61 & 72

$336.99

$

Usually ships in 2-12 days

0

38C

Scag 48253-02

Tire, 13 x 5.00-6 2-ply
(Superseded to 481861)

Note: SW 32 only; Not used on this model.

$110.99

$

Usually ships in 2-12 days

0

38D

Scag 48253-03

Rim Assembly
(Superseded to 481862)

Note: Incl 39, SW 32 only; Not used on this model.

$314.99

$

Usually ships in 2-12 days

0

39

Scag 48193-02

Wheel Brng. NWC (OD 1.984-1.980)

$

$

Not available

40

Scag 04042-05

Washer, 1-1/16 x 1-3/4 x 12 ga

$0.99

$

In Stock, Qty 18

0

40A

Scag 04041-14

Washer, 1-1/16 x 1-1/2 x 18 ga

$0.99

$

In Stock, Qty 15

0

41

Scag 04050-08

Retaining Ring, 1" Ext - "E"

$0.99

$

In Stock, Qty 12

0

42

Scag 48200

Pulley, Wheel Drive

$33.99

$

In Stock, only 1 left!

0

43

Scag 43088

Spacer, Wheel Pulley

$12.99

$

Usually ships in 2-12 days

0

44

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

45

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serrated Flange

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04003-03

Bolt, 3/8-16 x 2" Carriage

$1.49

$

In Stock, Qty 5

0

47

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

48

Scag 04003-11

Bolt, 3/8-16 x 1-1/4" Carriage

Note: Not used on this model.

$0.99

$

In Stock, Qty 7

0

49

Scag 421703

Battery Box
(Superseded to 423308)

$52.99

$

In Stock, only 1 left!

0

50

Scag 42330

Bracket, Idler Pulley

Note: Not used on this model.

$

$

Not available

51

Scag 48814

Rubber Pad, Clutch Stop

$

$

Not available

52

Scag 04041-11

Washer, 13/32 x 1-1/2 x 7 ga

Note: Not used on this model.

$1.99

$

In Stock, only 4 left!

0

53

Scag 45685

Battery Support Weldment
(Superseded to 423356)

$128.99

$

In Stock, only 1 left!

0

54

Scag 421564

Backing Plate

$86.99

$

Usually ships in 2-12 days

0

55

Scag 48099

Battery Cover Pad

Note: Not used on this model.

$5.99

$

Usually ships in 2-12 days

0

56

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

Note: Not used on this model.

$1.49

$

In Stock, Qty 10

0

57

Scag 04001-21

Bolt, 3/8-16 x 1-3/4" Hex Head

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

58

Scag 421370

Anti Rotation Bracket

$22.99

$

Usually ships in 2-12 days

0

59

Scag 04003-04

Bolt, 5/16-18 x 1" Carriage

$0.99

$

In Stock, Qty 9

0

60

Scag 48257

Pipe Cap

$2.49

$

In Stock, only 1 left!

0

61

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

62

Scag 48015

Battery

$

$

Not available

63

Scag 04001-44

Bolt, 1/4-20 x 1/2" Hex Head

$0.99

$

In Stock, Qty 6

0

64

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

65

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

66

Scag 04031-09

Lock Washer Internal Tooth

$0.99

$

In Stock, Qty 8

0

67

Scag 481077

Wire Harness Adapter, Man Start

$70.99

$

In Stock, only 1 left!

0

67

Scag 481054

Wire Harness Adapter, Elec Start

$20.99

$

Usually ships in 2-12 days

0

68

Scag 04001-59

Bolt, 1/4-20 x 1-1/4"

Note: Not used on this model.

$0.99

$

In Stock, Qty 5

0

69

Scag 21066-2071

Rectifier

Note: Order from Kawasaki; Not used on this model.

$

$

Not available

70

Scag 04003-02

Bolt, 1/4-20 x 3/4" Carriage

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

72

Scag 421390

Bracket, Capacitor
(Superseded to 422930)

Note: Not used on this model.

$

$

Not available

73

Scag 21013-2064

Condenser

Note: Order from Kawasaki; Not used on this model.

$

$

Not available

74

Scag 48029-06

Battery Cable, 18" Red

$12.99

$

Usually ships in 2-12 days

0

75

Scag 48029-11

Battery Cable, 27" Black

Note: Not used on this model.

$14.99

$

In Stock, only 1 left!

0

75

Scag 48029-15

Battery Cable, 36" Black

$17.99

$

In Stock, only 1 left!

0

75

Scag 48029-14

Battery Cable, 31" Black

Note: Not used on this model.

$16.99

$

Usually ships in 2-12 days

0

76

Scag 48029-02

Battery Cable, 31.5" Red

$15.99

$

Usually ships in 2-12 days

0

77

Scag 48016

Starter Solenoid

$86.99

$

Usually ships in 2-12 days

0

78

Scag 04002-07

Bolt, M8-1.25 x 1.0

Note: Not used on this model.

$0.99

$

In Stock, Qty 12

0

79

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

80

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

81A

Scag 43100

Wheel Axle

Note: SW 52, 61, 72

$

$

Not available

81B

Scag 43085

Wheel Axle

Note: SW 36, 48

$52.99

$

Usually ships in 2-12 days

0

81C

Scag 43104

Wheel Axle

Note: SW 32; Not used on this model.

$139.99

$

Usually ships in 2-12 days

0
