SW-16BV - Scag Walk-Behind Mower, 16hp Vanguard (SN: 60001 - 69999) Instrument Panel Parts Diagram

Walk-Behind Mower, 16hp Vanguard

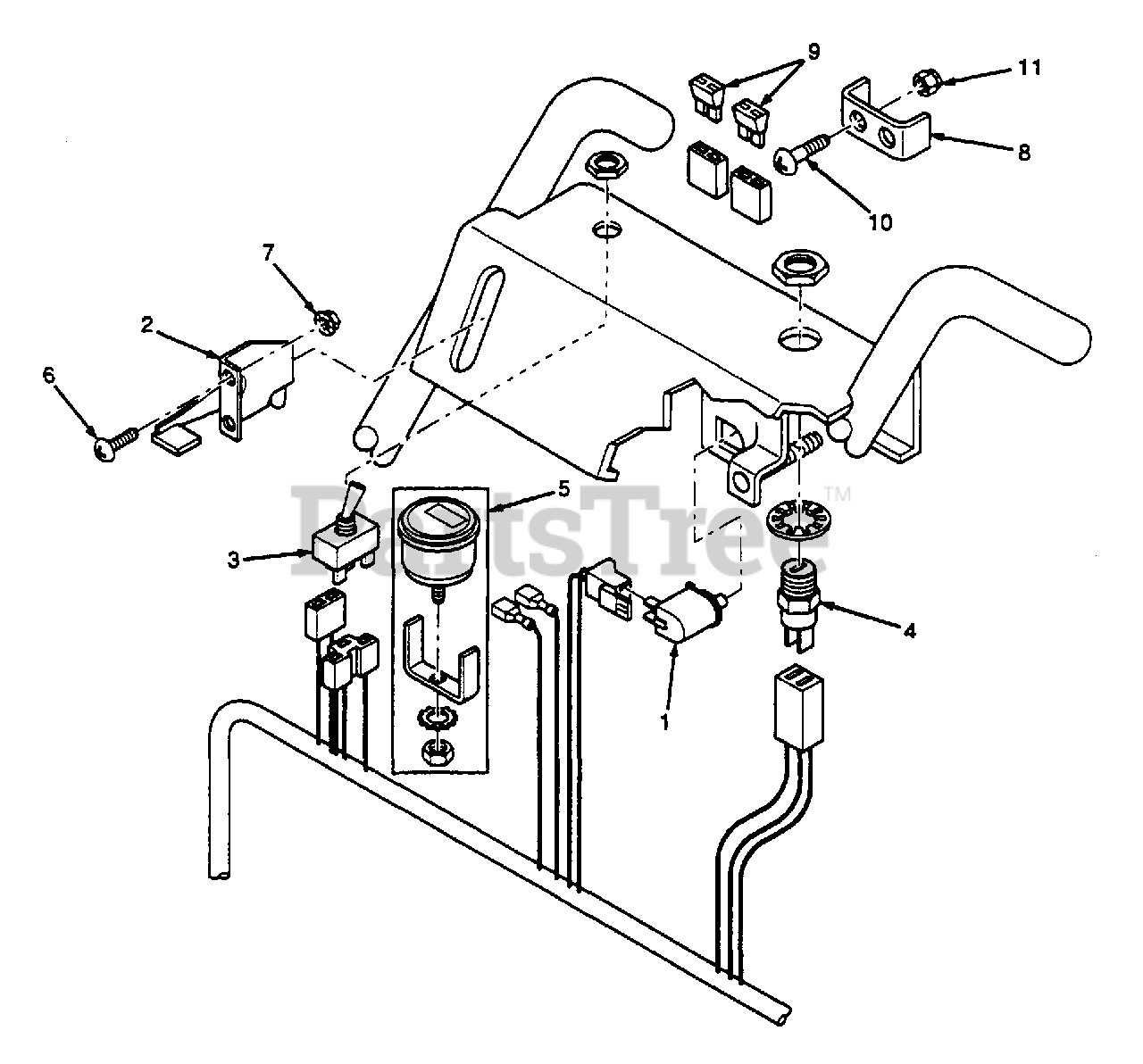

Instrument Panel Parts Diagram

  • Title

1

Scag 48717

Switch, Neutral Interlock

$9.99

$

In Stock, only 3 left!

0

2

Scag 48946

Throttle Control

$31.99

$

In Stock, Qty 10

0

3

Scag 48787

Engagement Switch, Electric Clutch

Note: Includes hardware

$37.99

$

In Stock, only 1 left!

0

4

Scag 48609

Key Switch

Note: Includes hardware

$13.99

$

In Stock, only 1 left!

0

5

Scag 48023

Hour Meter

Note: Dealer installed

$157.99

$

Usually ships in 2-12 days

0

6

Screw, #10-32 x .50 Phillips Washer Head

$

$

Not available

7

Scag 04019-01

Nut, 5/16-18 Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

8

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

9

Blade Fuse, 20A

$

$

Not available

10

Screw, #10-32 x 1.50

$

$

Not available

11

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

12

Scag 48951

Spring, Operator Presence

$0.99

$

In Stock, only 1 left!

0

Scag 48030-09

Clamp, Wire Harness

Note: Not shown

$1.49

$

In Stock, Qty 15

0
