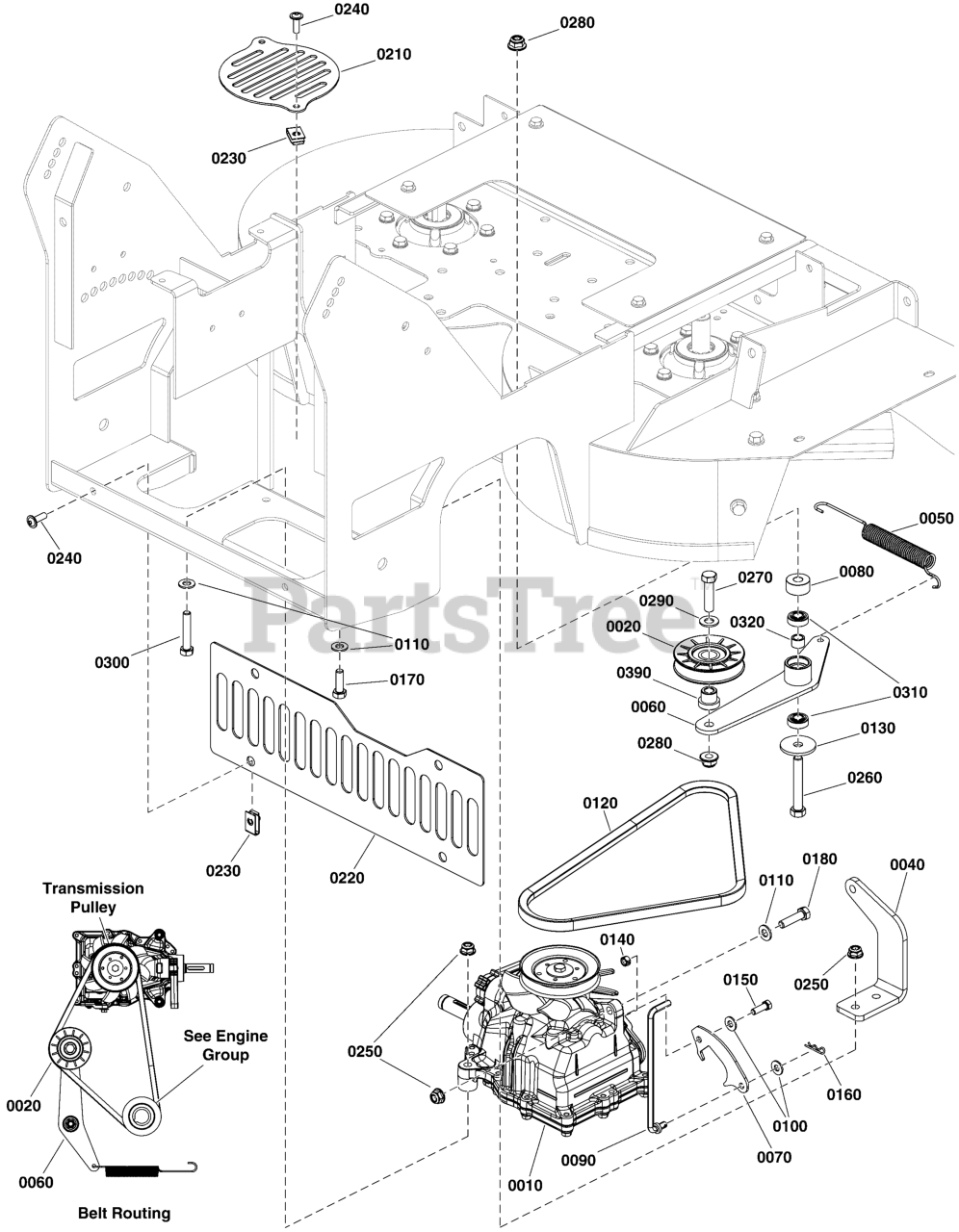

SW 15 (5901863) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Hydraulic Drive Group Parts Diagram

SW15 Series 32" Walk-Behind Mower, 10hp Honda

Hydraulic Drive Group Parts Diagram

  • Title

0010

Snapper Pro 5105873

TRANSMISSION, RT-310
(Superseded to 5105873FS)

$735.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5021079

Idler Pulley
(Superseded to 5021079SM)

$30.99

$

In Stock, only 1 left!

0

0040

Snapper Pro 5417525AA

BRACKET, TRANSMISSION MOUNT - BLK
(Superseded to 5417525AAFS)

$14.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 1758045

SPRING, EXTENSION
(Superseded to 1758045YP)

$8.49

$

In Stock, only 4 left!

0

0060

Snapper Pro 5417807AA

WELD, HYDRO IDLER - BLK
(Superseded to 5417807AAFS)

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5418882AA

PLATE, HYDRO RELEASE ARM - BLK
(Superseded to 5418882AAFS)

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

0090

Snapper Pro 5107506

ROD, NEUTRAL LOCK, FW15
(Superseded to 5107506FS)

$9.49

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0120

Snapper Pro 5106382

BELT, A-SEC, 32.1" EL, ARAMID WRAP
(Superseded to 5106382FS)

$28.99

$

In Stock, only 2 left!

0

0130

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5025287

NUT, Hex, Side Locking, 1/4-20
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

0150

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0160

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0170

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0180

Snapper Pro 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5417682AA

PLATE, GUARD, HYDRO PULLEY - BLK
(Superseded to 5417682AAFS)

$10.99

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5419037D

PLATE, REAR GUARD, SW15 - RED
(Superseded to 5419037DFS)

$24.99

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0270

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0290

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

0310

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

0320

Snapper Pro 5103676

SPACER, .39 X .55 X .38, PM, CZ
(Superseded to 5103676YP)

$6.49

$

Usually ships in 2-12 days

0

0390

Snapper Pro 5021879

INSERT, Bearing, Shoulder
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0
