SW 15 (5901863) - Snapper Pro SW15 Series 32" Walk-Behind Mower, 10hp Honda Cut Height Adjustment Group Parts Diagram

SW15 Series 32" Walk-Behind Mower, 10hp Honda

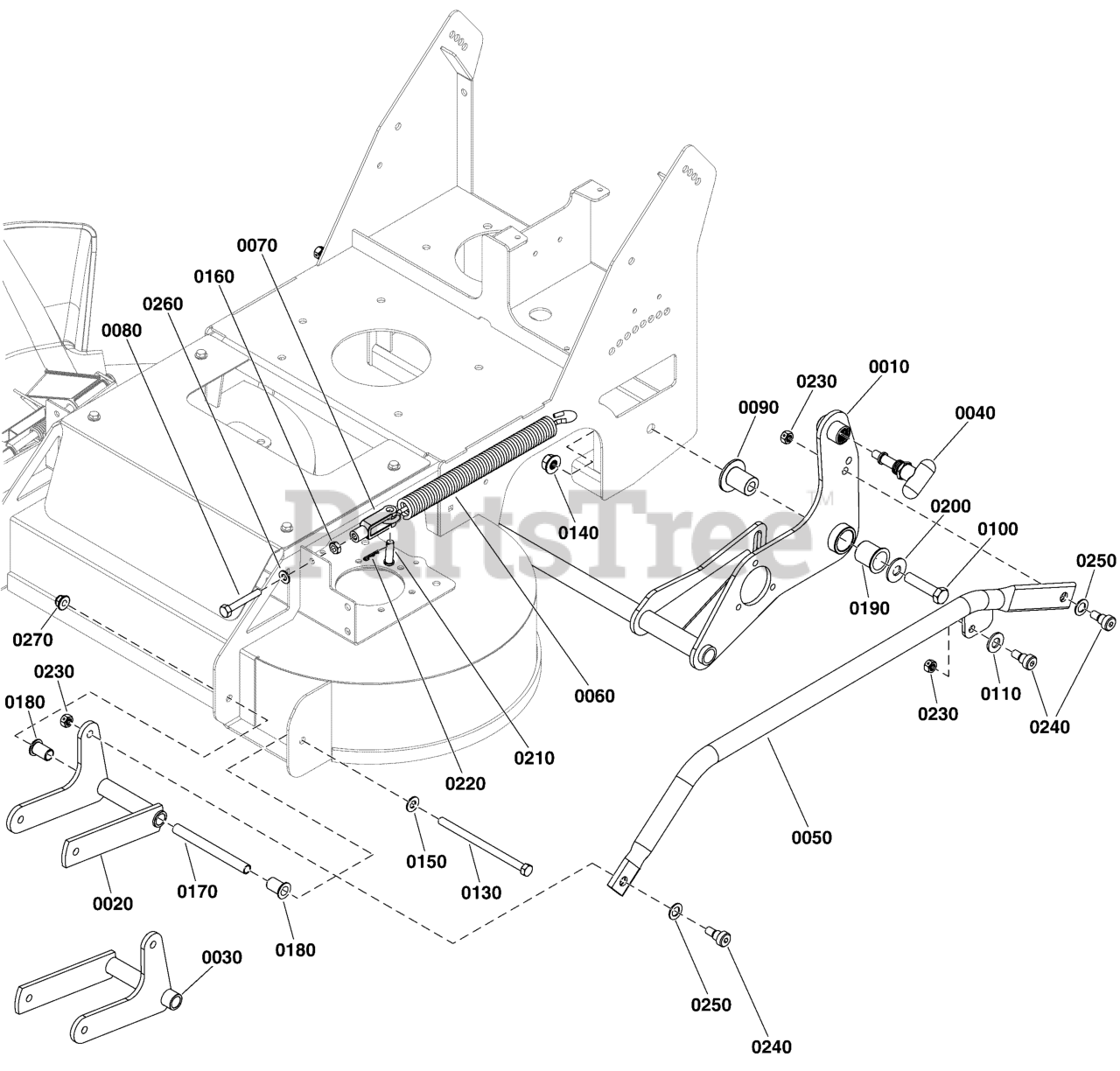

Cut Height Adjustment Group Parts Diagram

  • Title

0010

Snapper Pro 5417551D

WELD, REAR DIFF MOUNT, SW15 - RED
(Superseded to 5417551DFS)

$201.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5417553D

WELD, LH FRONT WHEEL MOUNT - RED
(Superseded to 5417553DFS)

$58.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5417552D

WELD, RH FRONT WHEEL MOUNT - RED
(Superseded to 5417552DFS)

$58.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5104609

PULL PIN, 3/8" DIA X 9/16" STROKE
(Superseded to 5104609FS)

$39.99

$

In Stock, only 1 left!

0

0050

Snapper Pro 5417776AA

WELD, DECK HEIGHT TUBE, FW15 - BLK
(Superseded to 5417776AAFS)

$66.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

0080

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0090

Snapper Pro 5106380

SPACER, SHOULDER, WALK
(Superseded to 5106380FS)

$13.99

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

0140

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0150

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

0180

Snapper Pro 5107528

BUSHING, FLG, .5 ID X 5/8 OD X 1 LG
(Superseded to 5107528FS)

$2.49

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5025214X8

PIN-CLEVIS, 3/8 X 1 YZ
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0230

Snapper Pro 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

0240

Snapper Pro 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

0250

Snapper Pro 80003590

WASHER,.516IDX.875ODX.06,FLAT,ZC/CL
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0270

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
