SVT2400 (0416-0) - Generac 2,400 Watt Portable Generator Generator SVT 4200 Parts Diagram

2,400 Watt Portable Generator

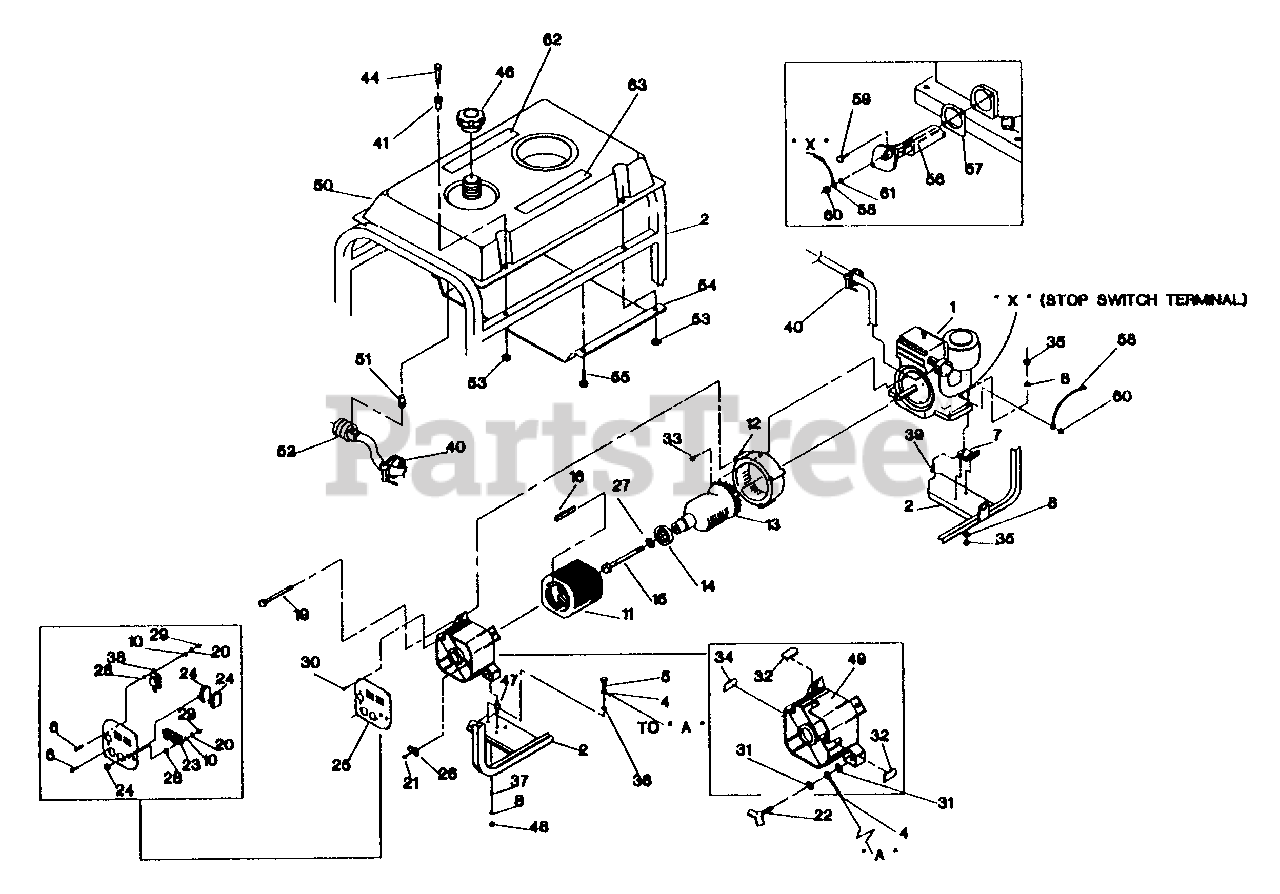

Generator SVT 4200 Parts Diagram

  • Title

1

Briggs & Stratton 96299

Briggs & Stratton Engine

$

$

Currently unavailable

2

Briggs & Stratton 91020

Cradle Assembly
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

4

14353621

Ground Wire

$

$

Not available

5

Briggs & Stratton 86292

#10 Self Drilling Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

M4-0.7 x 10 Pan Head Machine Screw

$

$

Not available

7

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91838

Stator Assembly
(Superseded to 690291)

$

$

Not available

12

Briggs & Stratton 66365

Engine Adaptor Housing
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91836

Rotor Assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 36180

5/16"-24 x 6.37 Rotor Bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81917

M4 x 10 Pin Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 86308

M6-1.00 x 115mm Stator Bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

#8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.80 x 16mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494

M6 x 16 Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 Volts AC, 20 Amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

20 Amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 83859

Sheet Metal Control Panel

$

$

Currently unavailable

26

Briggs & Stratton 91825

Brush & Bridge Rectifier Assembly

$

$

Not available

27

Briggs & Stratton 67451

Flat Washer (Special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.80 x 10mm Taptite Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 26850

1/4" Shakeproof Washer

$

$

Not available

32

Briggs & Stratton 84242

RBC Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16" x 3/4" Hex Head Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 22769

#10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 68867

120/240 Volt Twistlock Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76222

M8 x 40 Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 48031C

1/4" Hose Clamp

$

$

Not available

41

Briggs & Stratton 83465

Mounting Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 70031B

M6-1.0 x 60 Long Hex Head Capscrew

$

$

Currently unavailable

46

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

47

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 25244

5/16"-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66825C

Rear Bearing Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 77374

Fuel Tank

$

$

Currently unavailable

51

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 78298

Plastic Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 78951

Heat Shield

$

$

Currently unavailable

55

Briggs & Stratton 56892

#10-24 x 3/8" Crimptite Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 88977

Low Oil Shut Down Switch

$

$

Currently unavailable

57

Briggs & Stratton 91841

Gasket

$

$

Not available

58

Briggs & Stratton 91842A

LOS Wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 24679

#10-32 x 3/4" Taptite Screw
(Superseded to 24679GS)

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22471

#8-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 92982

Danger Decal
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93826

Operating Instructions Decal
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0
