SVRII-61V-37BV-EFI - Scag V-Ride II 61" Stand-On Mower, 37hp Vanguard (SN: R2100001 - R2199999) (Rev 01) SVRII-61V-37BV-EFI HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

V-Ride II 61" Stand-On Mower, 37hp Vanguard

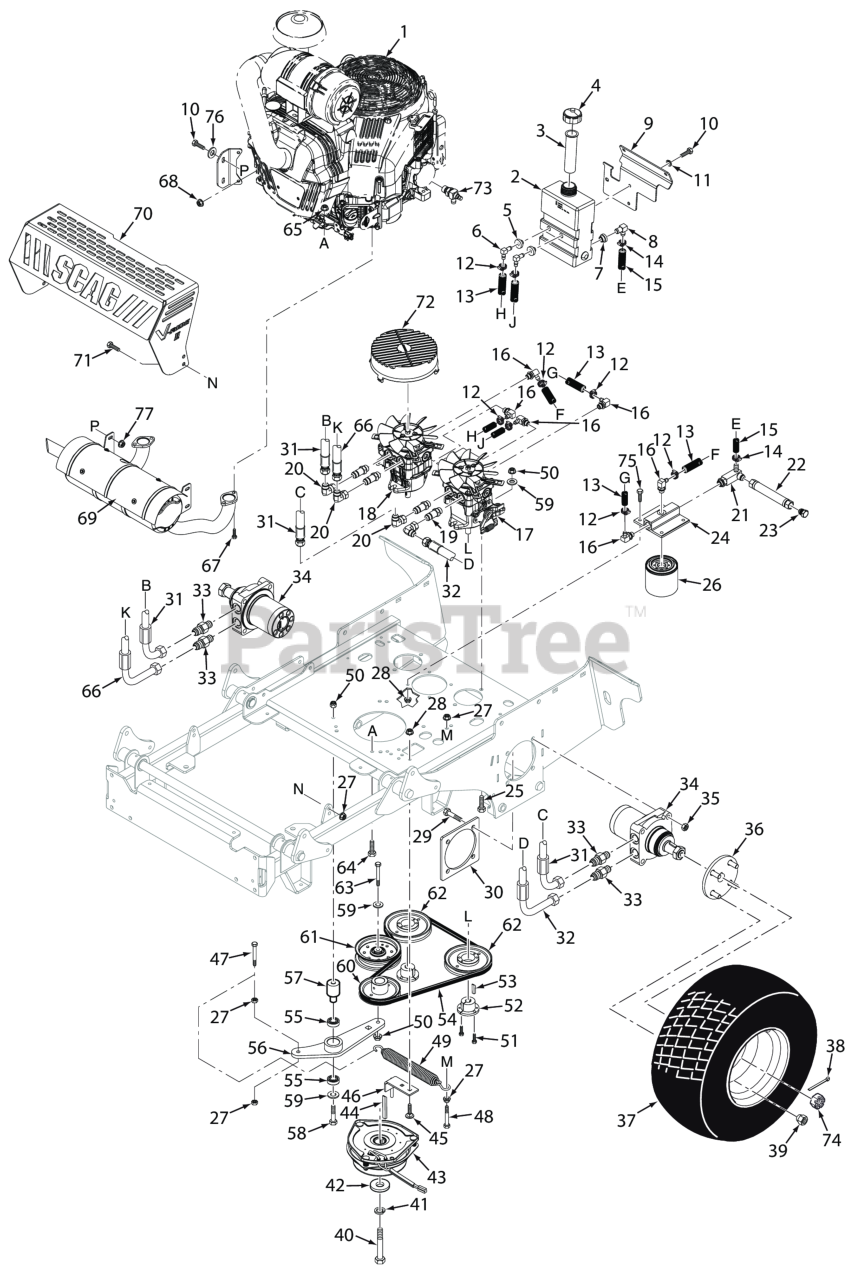

SVRII-61V-37BV-EFI HYDRAULICS AND ENGINE COMPONENTS Parts Diagram

  • Title

1

Scag 486516

Engine, Briggs & Stratton 37 BV-EFI (61E8770002J1)

Note: Order through Engine Manufacturer

$

$

Currently unavailable

2

Scag 462946

Hydro Tank Assy., SVRII

$188.99

$

Usually ships in 2-12 days

0

3

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

4

Scag 481164

CAP, HYDRAULIC TANK

$17.99

$

In Stock, Qty 8

0

5

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 482572

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$9.99

$

Usually ships in 2-12 days

0

7

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 2 left!

0

8

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

In Stock, only 1 left!

0

9

Scag 427280

Bracket, Hydro Tank Mounting

$21.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

13

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

15

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 12

0

16

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$31.99

$

Usually ships in 2-12 days

0

17

Scag 485838

Pump, LH - SVRII

$1126.99

$

Usually ships in 2-12 days

0

18

Scag 485839

Pump, RH - SVRII

$1110.99

$

Usually ships in 2-12 days

0

19

Scag 485830

Union, O-Ring to JIC

$10.99

$

Usually ships in 2-12 days

0

20

Scag 481203-02

Elbow, 1/2 JIC Female to 1/2 JIC Male

$12.99

$

In Stock, only 1 left!

0

21

Scag 485847

Tee, 3/4" O-Ring

$27.99

$

Usually ships in 2-12 days

0

22

Scag 485870

Drain, Hose Assembly

$46.99

$

Usually ships in 2-12 days

0

23

Scag 48771-02

Plug, JIC 3/4-16 UNF

$2.99

$

Usually ships in 2-12 days

0

24

Scag 482417

Filter Head Assembly

$125.99

$

Usually ships in 2-12 days

0

25

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

26

Scag 48462-01

OIL FILTER, SPECIAL

$25.99

$

In Stock, Qty 20+

0

27

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

28

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-52

Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower)

$1.49

$

Usually ships in 2-12 days

0

30

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

31

Scag 485792

Hose Assy., 27-1/2"

$79.99

$

In Stock, only 2 left!

0

32

Scag 484509

Hose Assy., 15-1/4"

$83.99

$

Usually ships in 2-12 days

0

33

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

34

Scag 485788

Wheel Motor, SVRII

$972.99

$

Usually ships in 2-12 days

0

34

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

35

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

36

Scag 462999

Wheel Hub Assy., SVRII

$109.99

$

Usually ships in 2-12 days

0

36

Scag 04008-01

Bolt, Serr. Flange 1/2-20 x 4.563"

$3.49

$

In Stock, Qty 20+

0

37

Scag 485952

Wheel Assembly, 24 x 12-12 (SPZ61)

$361.99

$

Usually ships in 2-12 days

0

37

Scag 485953

Tire, 24 x 12-12 (SPZ61)

$262.99

$

Usually ships in 2-12 days

0

37

Scag 482414

(52") Rim 481851 (61") Rim w/Stem

$137.99

$

In Stock, only 1 left!

0

38

Scag 04061-06

Pin, Cotter 9/16" x 1-1/2"

$0.99

$

In Stock, Qty 11

0

39

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

40

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$1.99

$

In Stock, Qty 12

0

41

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

42

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

43

Scag 462339

Clutch w/Tag GT3.5--FE05 (61)

$457.99

$

In Stock, only 1 left!

0

44

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

45

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

46

Scag 452923

ANTI-ROTATION WLMT, SVRII

$20.99

$

In Stock, only 2 left!

0

47

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

48

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

49

Scag 483526

Spring, Transmission Idler

$25.99

$

In Stock, only 3 left!

0

50

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

51

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

52

Scag 482085

Hub, Tapered, 15mm Bore

$27.99

$

Usually ships in 2-12 days

0

53

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 5

0

54

Scag 486322

Belt, Pump Drive (37BV-EFI)

$31.99

$

In Stock, only 2 left!

0

55

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

56

Scag 463158

Idler Arm Assy.

Note: (Incl. #55)

$69.99

$

Usually ships in 2-12 days

0

57

Scag 43683

Pivot, Idler

$45.99

$

Usually ships in 2-12 days

0

58

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 12

0

59

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

60

Scag 483802

Pulley, 4-3/4" OD - 1.125 Bore

$76.99

$

Usually ships in 2-12 days

0

61

Scag 483213

Pulley, Idler 4-1/2"

$52.99

$

Usually ships in 2-12 days

0

62

Scag 482649

Pulley, 5.45 OD - Tapered Bore"

$48.99

$

In Stock, only 1 left!

0

63

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

64

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

64

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

65

Scag 04134-03

Nut, Flanged Top Lock 3/8-16

$0.99

$

Usually ships in 2-12 days

0

66

Scag 485791

Hose Assy., 30"

$89.99

$

In Stock, only 1 left!

0

67

Scag 04119-02

Bolt, Hex Head M8 - 1.25 x 20

$1.49

$

In Stock, only 2 left!

0

68

Scag 04121-01

Nut, M6-1.0 Hex Flange

$0.99

$

Usually ships in 2-12 days

0

69

Scag 486558

Muffler, Vanguard 37 EFI - SVRII
(Superseded to 486868)

$248.99

$

Usually ships in 2-12 days

0

70

Scag 428234

Heatshield Muffler - Vanguard 37 EFI

$89.99

$

Usually ships in 2-12 days

0

71

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

72

Scag 485564

Fan Cover, Pump

$18.99

$

Usually ships in 2-12 days

0

73

Scag 483017

Oil Drain, 35BV & 37BV-EFI - Briggs & Stratton

$46.99

$

In Stock, only 2 left!

0

73

Scag 483280

Tubing, Oil Drain (order by inch)

$3.49

$

Usually ships in 2-12 days

0

74

Scag 48680

Nut, Hex Castle 1.0-20 UNEF

$16.99

$

In Stock, only 3 left!

0

75

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

76

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

77

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

Scag 48028-02

DISCONTINUED

Note: Item not Shown

$

$

Not available
