SVRII-61V-31FX - Scag V-Ride II 61" Stand-On Mower, 31hp Kawasaki (SN: T5900001 - T5999999) (Rev 02) SVRII-48V / 52V / 61V HYDRAULIC PUMP Parts Diagram

V-Ride II 61" Stand-On Mower, 31hp Kawasaki

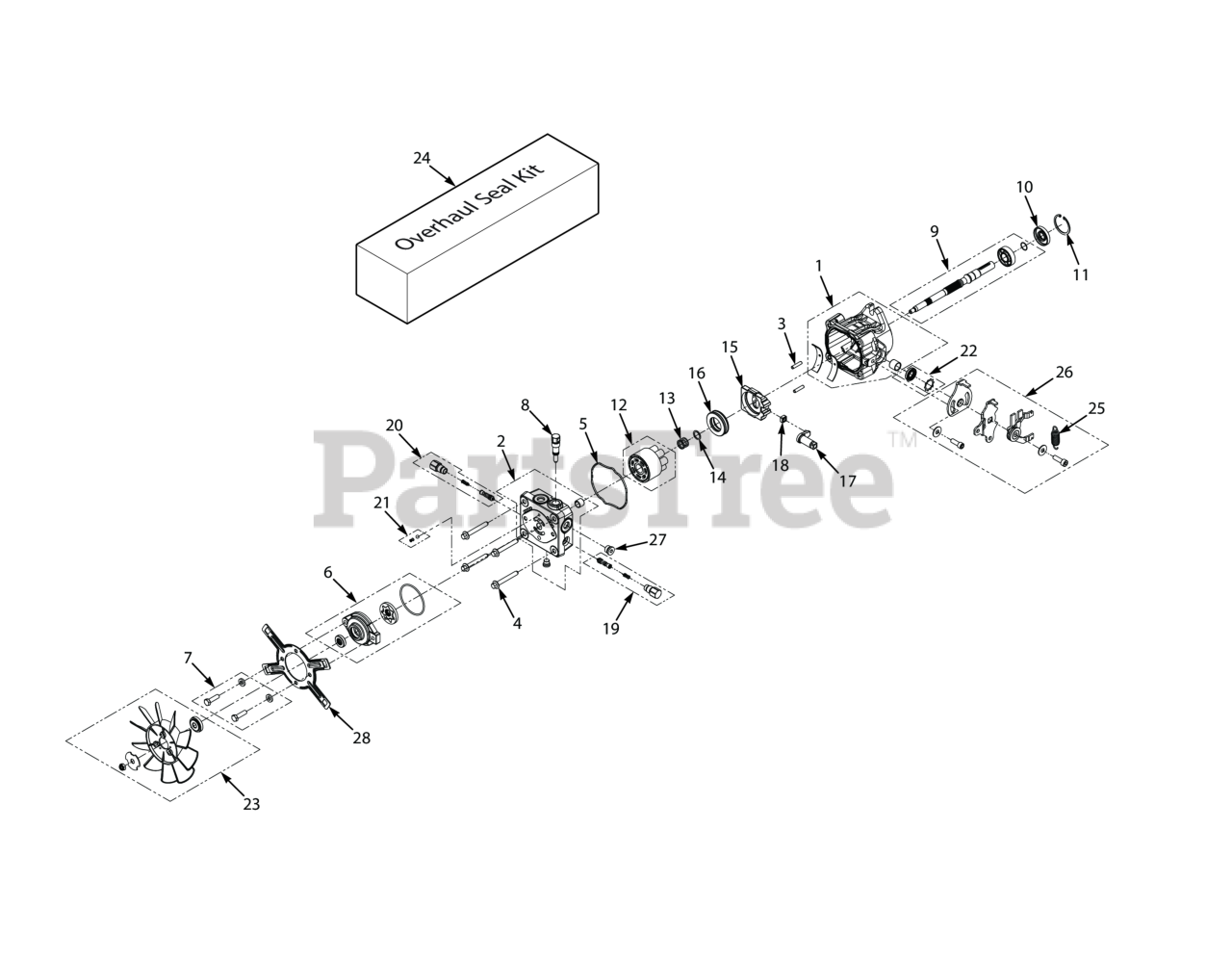

SVRII-48V / 52V / 61V HYDRAULIC PUMP Parts Diagram

  • Title
1

Scag HG72267

Kit, Housing

$

$

Currently unavailable

2

Scag HG 72011

Kit, End Cap

$

$

Currently unavailable

3

Scag HG 50641

Straight Headless Pin

$

$

Not available

4

Scag HG 50969

Hex Flange Bolt, M8-1.25 x 60mm

$5.49

$

Usually ships in 2-12 days

0

5

Scag HG 54022

Gasket, Housing

$8.99

$

In Stock, only 2 left!

0

6

Scag HG70622

Kit, Charge Pump

$

$

Currently unavailable

7

Scag HG 72254

Kit, Charge Pump Bolts

$

$

Currently unavailable

8

Scag HG 2513030

Bypass Valve Kit

$43.99

$

Usually ships in 2-12 days

0

9

Scag HG 70620

Pumpshaft Kit

$

$

Currently unavailable

10

Scag HG 51161

Seal, Lip 17 x 40 x 7

$9.99

$

Usually ships in 2-12 days

0

11

Scag HG 50329

R i n g , Retaining 2.06 Internal

$5.49

$

Usually ships in 2-12 days

0

12

Scag HG 71971

Assembly, Block 7 Piston

$

$

Currently unavailable

13

Scag HG 2003014

Spring, Block

$

$

Not available

14

Scag HG 2003017

Washer, Flat .59 x .79 x .04

$

$

Not available

15

Scag HG53998

Swashplate

$

$

Currently unavailable

16

Scag HG 53502

Bearing, Thrust

$

$

Currently unavailable

17

Scag HG 52866

Trunnion Arm

$

$

Currently unavailable

18

Scag HG 2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

19

Scag HG 70743

System Check Relief Kit, port "B" on Left Hand Pump, port "A" on Right Hand Pump

$109.99

$

Usually ships in 2-12 days

0

20

Scag HG 70743

System Check Relief Kit, port "B" on Left Hand Pump, port "A" on Right Hand Pump

$109.99

$

Usually ships in 2-12 days

0

21

Scag HG 70403

Kit, Charge Relief

$8.99

$

Usually ships in 2-12 days

0

22

Scag HG 2513043

Trunnion Seal with Retainer

$12.99

$

In Stock, only 1 left!

0

23

Scag HG 70811

Fan Assembly

$

$

Currently unavailable

24

Scag HG 70525

Overhaul Seal Kit

$67.99

$

Usually ships in 2-12 days

0

25

Scag HG 52401

Spring, Extension

$

$

Currently unavailable

26

Scag HG 71716

RTN Kit (Std Scissor, Std Spring)

$

$

Currently unavailable

27

Scag HG9005110-5600

Straight Thread Plug

$

$

Currently unavailable

28

Scag HG 52355

Bracket, 7"

$

$

Currently unavailable
