SVRII-61V-31CV-EFI - Scag V-Ride II 61" Stand-On Mower, 31hp Kohler (SN: R6200001 - R6299999) SVRII ELECTRICAL SCHEMATIC - ELECTRIC START MODELS Parts Diagram

V-Ride II 61" Stand-On Mower, 31hp Kohler

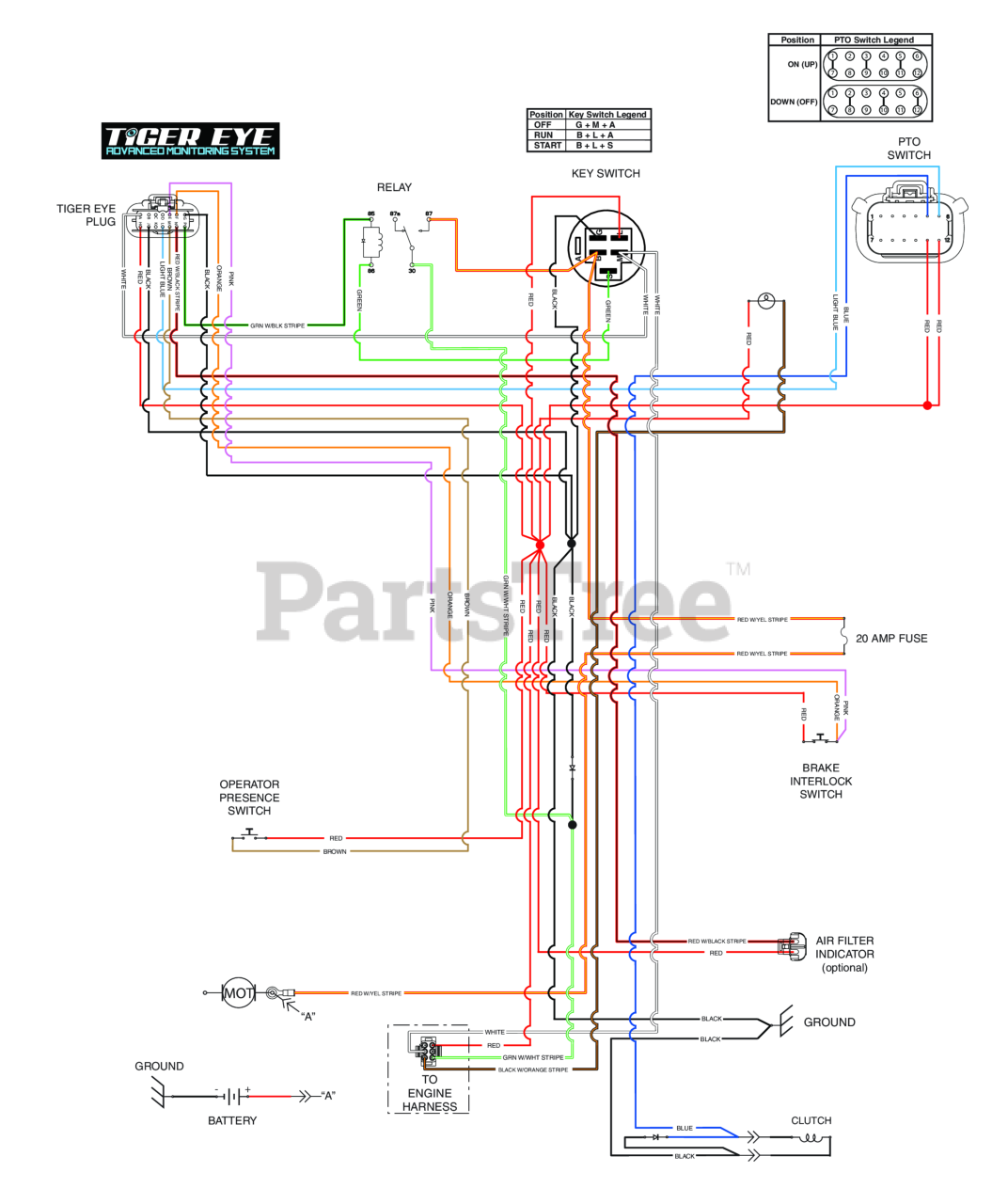

SVRII ELECTRICAL SCHEMATIC - ELECTRIC START MODELS Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
