SVRII-61V-25FX - Scag V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX (SN: N0000001 - N0099999) SVRII Fuel System Parts Diagram

V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX

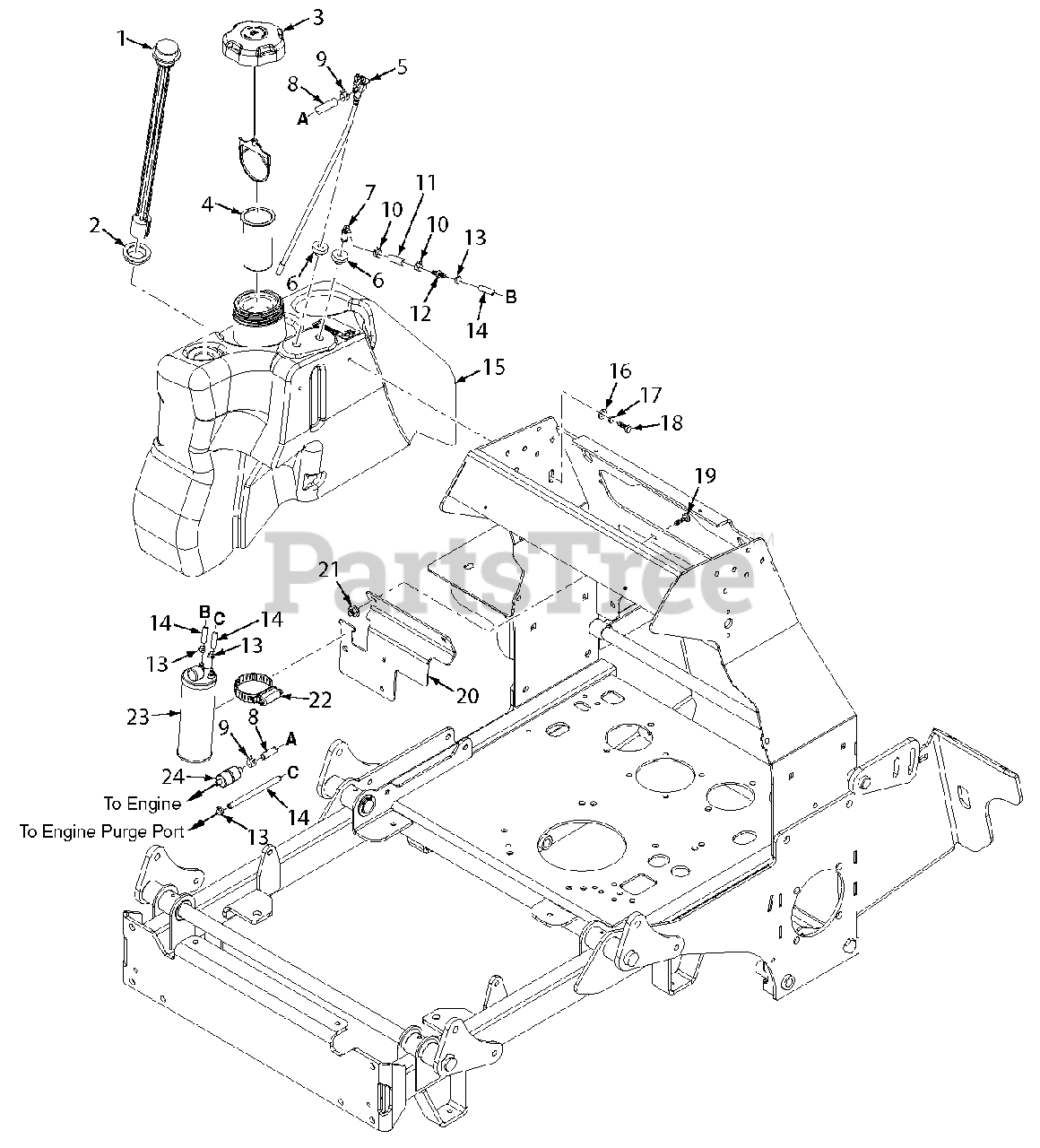

SVRII Fuel System Parts Diagram

  • Title

1

Scag 485914

Fuel Gauge Assy., 15-1/2" (36)

Note: (Incl. #2)

$73.99

$

Usually ships in 2-12 days

0

1

Scag 484246

Fuel Gauge Assy., 16-1/2"

Note: (Incl. #2)

$87.99

$

In Stock, only 1 left!

0

2

Scag 484242

Seal, Fuel Gauge

$21.99

$

In Stock, Qty 10

0

3

Scag 484286

Fuel Cap, Tethered

$53.99

$

In Stock, Qty 7

0

3

Scag 484297-01

Fuel Cap, Tethered - CA models only

$

$

Currently unavailable

4

Scag 484079-01

Tube, Fuel Tank Insert

$

$

Currently unavailable

5

Scag 485913

Valve, Fuel Shutoff (36)

$39.99

$

Usually ships in 2-12 days

0

5

Scag 483896

Valve, Fuel Shutoff

$50.99

$

Usually ships in 2-12 days

0

6

Scag 482571

Bushing, .56 Viton

$12.99

$

In Stock, Qty 20+

0

7

Scag 485923

Remote Vent
(Superseded to 486852)

$1.99

$

Usually ships in 2-12 days

0

8

Scag 483617

Fuel Hose, 1/4" ID (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

10

Scag 48059-02

Clamp, Fuel Hose 7/32" ID

$0.99

$

In Stock, Qty 19

0

11

Scag 484347

Hose, Vapor Recovery 1/4" (order by inch)

$0.99

$

In Stock, Qty 20+

0

12

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

13

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 4 left!

0

14

Scag 484345

Hose, Vapor Recovery 3/16"

$0.99

$

In Stock, Qty 20+

0

15

Scag 462956

Fuel Tank Assy., SVRII-36
(Superseded to 463052)

Note: (Incl. #1,2,5,6,7)

$556.99

$

Usually ships in 2-12 days

0

15

Scag 462928

Fuel Tank Assy., SVRII
(Superseded to 463054)

Note: (Incl. #1,2,5,6,7)

$596.99

$

Usually ships in 2-12 days

0

16

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

17

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 427280

Bracket, Hydro Tank Mounting

$21.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 48136-17

Clamp, 3-1/2"

$7.49

$

Usually ships in 2-12 days

0

23

Scag 484342

Carbon Canister

$101.99

$

In Stock, Qty 6

0

24

Fuel Filter

Note: Order through Engine Manufacturer

$

$

Not available
