SVRII-61V-25FX - Scag V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX (SN: N0000001 - N0099999) SVRII-48V / 52V / 61V Hydraulic Pump Parts Diagram

V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX

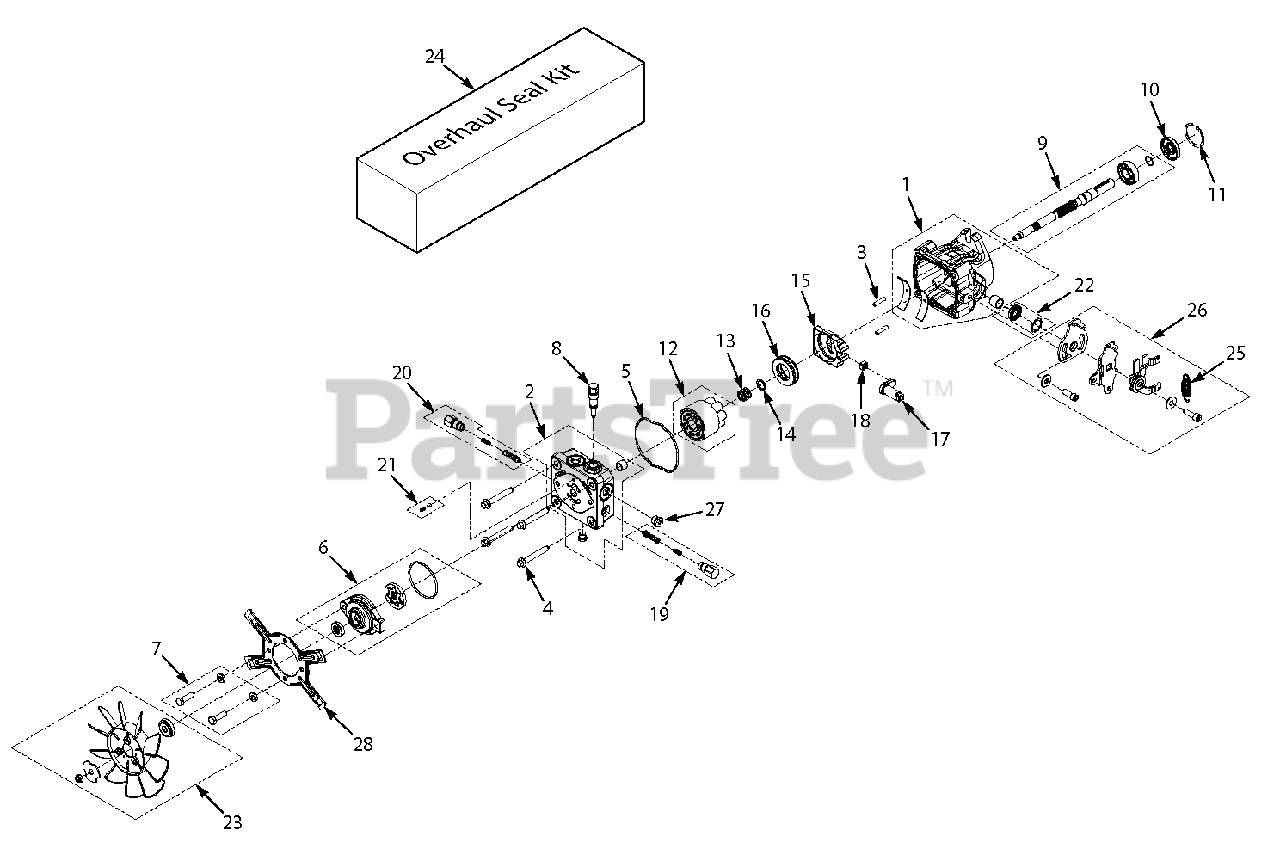

SVRII-48V / 52V / 61V Hydraulic Pump Parts Diagram

  • Title
1

Scag HG72267

Kit, Housing

$

$

Currently unavailable

2

HG72011

Kit, End Cap

$

$

Not available

3

Scag HG50641

Pin, .219 x 1.000

$

$

Not available

4

Scag HG50969

Bolt, M8 X 1.25 mm

$5.49

$

Usually ships in 2-12 days

0

5

Scag HG54022

Gasket, Housing

$8.99

$

In Stock, only 2 left!

0

6

Scag HG70622

Kit, Charge Pump

$

$

Currently unavailable

7

HG72254

Kit, Charge Pump Bolts

$

$

Not available

8

Scag HG2513030

By-Pass Valve

$43.99

$

Usually ships in 2-12 days

0

9

HG70620

Kit, Shaft

$

$

Not available

10

Scag HG51161

Seal, 17 x 40 x 7 Lip

$9.99

$

Usually ships in 2-12 days

0

11

Scag HG50329

Ring, Retaining .156 Internal

$5.49

$

Usually ships in 2-12 days

0

12

HG71971

Kit, Block 12cc

$

$

Not available

13

Scag HG2003014

Spring, Block

$

$

Not available

14

Scag HG2003017

Washer, .59 x .79 x .04

$

$

Not available

15

Scag HG53998

Swashplate

$

$

Currently unavailable

16

HG53502

Bearing, Thrust

$

$

Not available

17

HG52866

Trunnion Arm

$

$

Not available

18

Scag HG2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

19

Scag HG70838

Kit, Shock Valve - 160 Bar (.031 Orifice)

$

$

Currently unavailable

20

Scag HG70838

Kit, Shock Valve - 160 Bar (.031 Orifice)

$

$

Currently unavailable

21

Scag HG70403

Kit, Charge Relief

$8.99

$

Usually ships in 2-12 days

0

22

Scag HG2513043

Kit, Seal - Trunnion Arm

$12.99

$

In Stock, only 1 left!

0

23

HG70811

Fan Assembly

$

$

Not available

24

Scag HG70525

Seal Kit

$67.99

$

Usually ships in 2-12 days

0

25

HG52401

Spring

$

$

Not available

26

HG71716

Kit, RTN

$

$

Not available

27

Scag HG9005110-5600

Plug, 9/16-18

$

$

Currently unavailable

28

HG52355

Bracket, 7"

$

$

Not available
