SVRII-61V-25FX - Scag V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX (SN: N0000001 - N0099999) SVRII-48V / 52V / 61V Electrical System Parts Diagram

V-Ride II 61" Stand-On Mower, 25hp Kawasaki 801FX

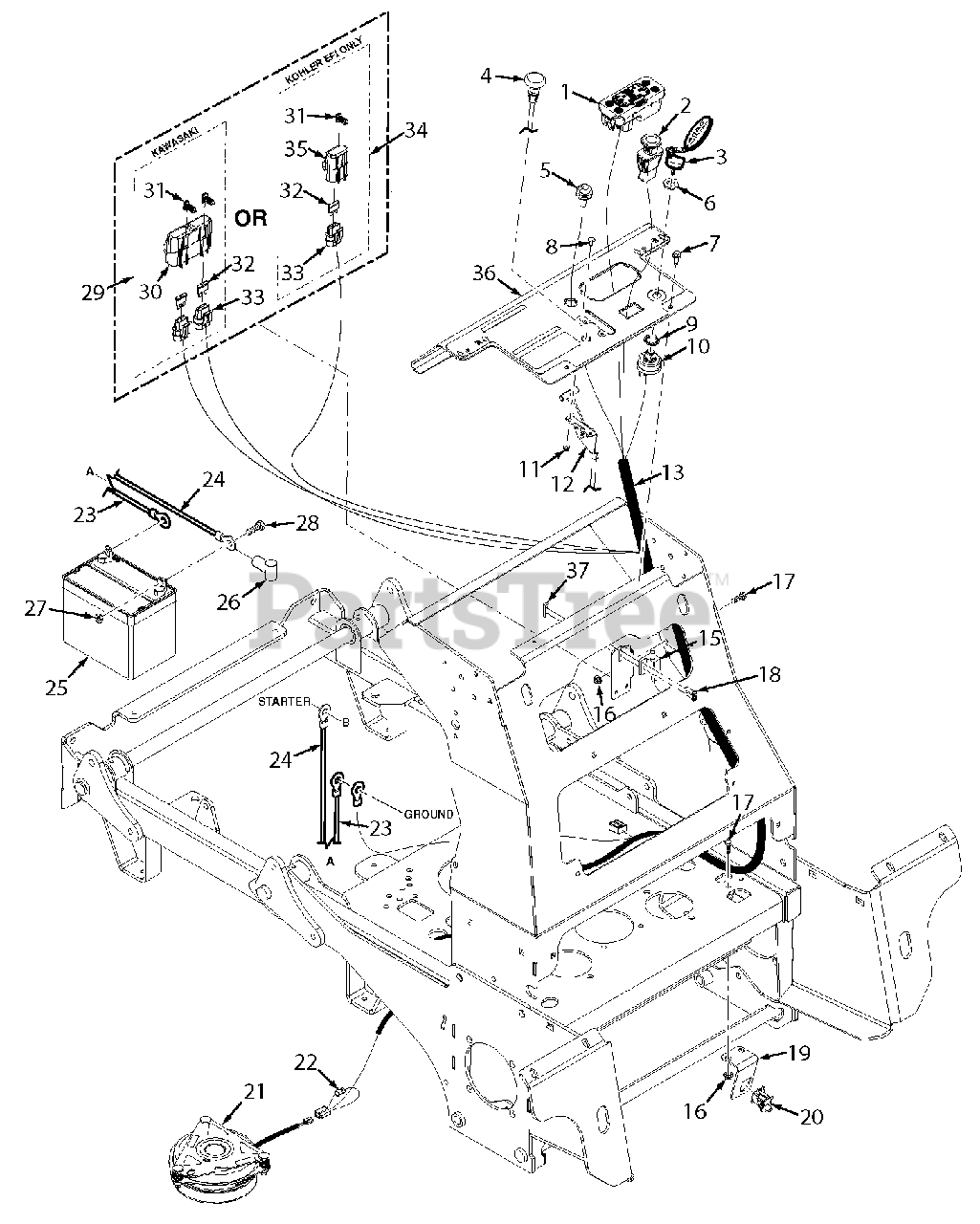

SVRII-48V / 52V / 61V Electrical System Parts Diagram

  • Title

1

Scag 484721

Tiger Eye, Cluster Gauge

$374.99

$

In Stock, only 3 left!

0

2

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

3

Scag 462069

Key Assy., w/Fob

$8.49

$

In Stock, Qty 20+

0

4

Scag 483976

Choke Control (excludes EFI models)

$22.99

$

In Stock, only 2 left!

0

5

Scag 481182

Indicator Light (EFI models only)

$47.99

$

Usually ships in 2-12 days

0

6

Scag 48017-04

Nut, Special 5/8-32

$1.49

$

In Stock, Qty 5

0

7

Scag 04011-14

Screw, 1/4-20 x 3/4" Taptite

$0.99

$

In Stock, Qty 13

0

8

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 9

0

9

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 6

0

10

Scag 48798

Switch, Key

$27.99

$

In Stock, Qty 20+

0

11

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 10

0

12

Scag 483975

Throttle Control

$24.99

$

In Stock, Qty 20+

0

13

Scag 485875

Wire Harness, SVRII

$284.99

$

Usually ships in 2-12 days

0

13

Scag 485822

Wire Harness, SVRII-EFI

$275.99

$

Usually ships in 2-12 days

0

14

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

15

Scag 481637

Switch, N/O

$9.99

$

In Stock, Qty 20+

0

16

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04010-12

Screw, #10-32 x 3/4" Taptite

$0.99

$

In Stock, only 1 left!

0

19

Scag 427249

Switch Bracket, Operator Presence

$9.49

$

Usually ships in 2-12 days

0

20

Scag 48717

Switch

$9.99

$

In Stock, only 3 left!

0

21

Scag 462166

Clutch w/Tag GT2.5-FE02 (48 / 52)

$388.99

$

In Stock, Qty 5

0

21

Scag 462339

Clutch w/Tag GT3.5--FE05 (61)

$457.99

$

In Stock, Qty 5

0

22

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

23

Scag 48029-24

Battery Cable, 39" Black

$17.99

$

Usually ships in 2-12 days

0

24

Scag 48029-30

Battery Cable, 44" Red w/Braid

$32.99

$

In Stock, only 2 left!

0

25

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available

26

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

27

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 483642

Double Fuse Assy,\\\.

Note: (Incl. #30, 31, 32, 33)

$43.99

$

Usually ships in 2-12 days

0

30

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

31

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

32

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

33

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

34

Scag 485739

Single Fuse Assy.

Note: (Incl. #31, 33, 35)

$33.99

$

Usually ships in 2-12 days

0

35

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

36

Scag 462970

Control Panel w/Decal

$

$

Not available

37

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0
