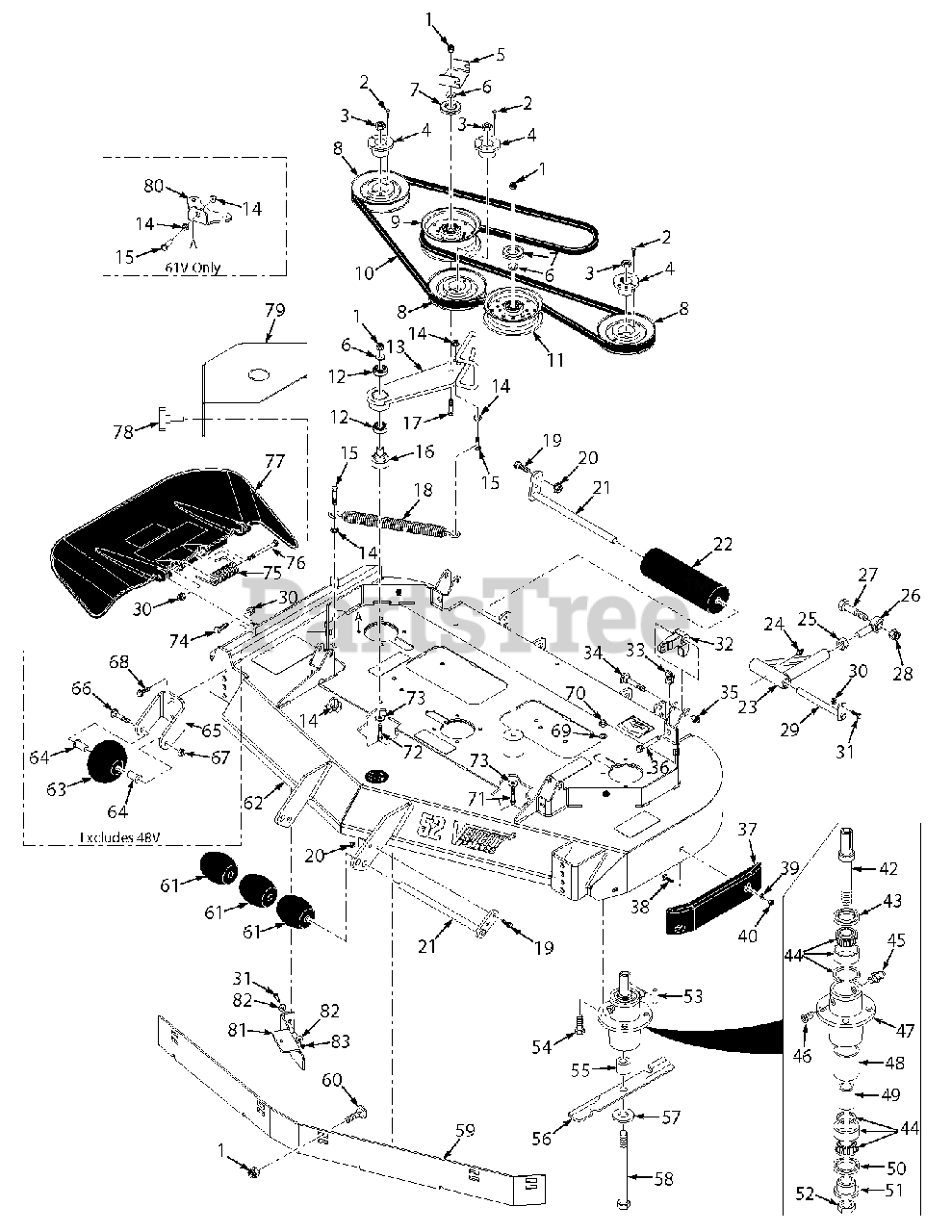

SVRII-52V-25CV-EFI - Scag V-Ride II 52" Stand-On Mower, 25hp Kohler (SN: M9900001 - M9999999) 48V, 52V & 61V Cutter Decks Parts Diagram

V-Ride II 52" Stand-On Mower, 25hp Kohler

48V, 52V & 61V Cutter Decks Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

3

Scag 04020-09

Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

5

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

6

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

7

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

8

Scag 483282

Pulley, 5.13" Dia. - 48V

$36.99

$

Usually ships in 2-12 days

0

8

Scag 483284

Pulley, 5.73" Dia. - 52V

$37.99

$

In Stock, only 1 left!

0

8

Scag 483286

Pulley, 6.32" Dia - 61V

$37.99

$

In Stock, Qty 10

0

9

Scag 483210

Pulley, 5" Idler

$55.99

$

In Stock, only 2 left!

0

10

Scag 483966

Belt, Cutter Deck - 48V

$86.99

$

In Stock, Qty 18

0

10

Scag 484100

Belt, Cutter Deck - 52V

$93.99

$

Usually ships in 2-12 days

0

10

Scag 485880

Belt, Cutter Deck - 61V
(Superseded to 486586)

$84.99

$

Usually ships in 2-12 days

0

11

Scag 483215

Pulley, 5" Idler

$60.99

$

In Stock, Qty 20+

0

12

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

13

Scag 462973

Idler Arm Assy. - 48V

Note: (Incl. #12)

$68.99

$

Usually ships in 2-12 days

0

13

Scag 462975

Idler Arm Assy. - 52V

Note: (Incl. #12)

$64.99

$

In Stock, only 1 left!

0

13

Scag 462333

Idler Arm Assy. - 61V

Note: (Incl. #12)

$

$

Not available

14

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

16

Scag 43681

Pivot, Idler

$23.99

$

In Stock, only 1 left!

0

17

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

18

Scag 484020

Spring

$63.99

$

In Stock, only 1 left!

0

19

Scag 04001-09

Bolt, Hex Head 5/16-18 x1"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

21

Scag 45944

Shaft Weldment

$21.99

$

In Stock, Qty 20+

0

22

Scag 48038

Guide Roller

$28.99

$

In Stock, only 2 left!

0

23

Scag 462323

Pusharm Assy, LH

$121.99

$

In Stock, only 1 left!

0

23

Scag 462324

Pusharm Assy, RH

$121.99

$

In Stock, only 1 left!

0

24

Scag 48114-08

Grease Fitting, 90 Degree

$3.99

$

Usually ships in 2-12 days

0

25

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

26

Scag 48763

Rod End, 5/8 Male RH

$57.99

$

In Stock, Qty 6

0

27

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

28

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

29

Scag 451724

Shaft Weldment, Pusharm Mounting

$35.99

$

In Stock, only 2 left!

0

30

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

32

Scag 485528

Lever, Deck Level

$22.99

$

Usually ships in 2-12 days

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

35

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

36

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 8

0

37

Scag 483176

Pad, Wear

$33.99

$

In Stock, Qty 20+

0

38

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

40

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

41

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

42

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

43

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

44

Scag 481022

Bearing, Tapered

$59.99

$

In Stock, Qty 15

0

45

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

46

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

47

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

48

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

49

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

50

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

51

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

52

Scag 481035

Nut, 1.06 - 18

$7.99

$

In Stock, only 3 left!

0

53

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

54

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 10

0

55

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

56

Scag 482877

Cutter Blade, 16-1/2" (48V)

$22.99

$

In Stock, Qty 20+

0

56

Scag 482878

Cutter Blade, 18" (52V)

$23.99

$

In Stock, Qty 20+

0

56

Scag 482881

Cutter Blade, 21" (61V)

$28.99

$

In Stock, only 4 left!

0

57

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

58

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

59

Scag 424839

Baffle, Flange - 48V

$84.99

$

In Stock, only 1 left!

0

59

Scag 424840

Baffle, Flange - 52V

$101.99

$

Usually ships in 2-12 days

0

59

Scag 424841

Baflle, Flange - 61V

$119.99

$

Usually ships in 2-12 days

0

60

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

61

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

62

Scag 462972

Cutter Deck w/Decals - 48V

$1293.99

$

Usually ships in 2-12 days

0

62

Scag 462974

Cutter Deck w/Decals - 52V

$1314.99

$

Usually ships in 2-12 days

0

62

Scag 462976

Cutter Deck w/Decals - 61V

$1726.99

$

Usually ships in 2-12 days

0

63

Scag 481632

Wheel, Anti-Scalp

Note: (Incl. #64)

$21.99

$

In Stock, Qty 20+

0

64

Scag 48100-15

Bushing, Bronze

$4.99

$

In Stock, Qty 20+

0

65

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

66

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

67

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

68

Scag 04017-27

Bolt, Hex Head Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

69

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

70

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-47

Bolt, Hex Head 3/8-16 x 5"

$3.49

$

Usually ships in 2-12 days

0

72

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

73

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

In Stock, Qty 8

0

74

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

75

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

0

76

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

77

Scag 461844

Discharge Chute Assy. - 48V

$66.99

$

In Stock, only 2 left!

0

77

Scag 461845

Discharge Chute Assy. - 52V

$66.99

$

In Stock, only 1 left!

0

77

Scag 461846

Discharge Chute Assy. - 61V

$66.99

$

In Stock, only 1 left!

0

78

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

79

Scag 427310

Belt Cover, RH - 48V

$107.99

$

Usually ships in 2-12 days

0

79

Scag 427306

Belt Cover, LH - 48V

$107.99

$

Usually ships in 2-12 days

0

79

Scag 427264

Belt Cover - 52V

$51.99

$

In Stock, only 3 left!

0

79

Scag 427363

Belt Cover, RH - 61V

$104.99

$

Usually ships in 2-12 days

0

79

Scag 427362

Belt Cover, LH - 61V

$58.99

$

Usually ships in 2-12 days

0

80

Scag 427399

Anchor Bracket - 61V

$9.99

$

Usually ships in 2-12 days

0

81

Scag 424677

Turbo Baffle - 48V / 52V

$31.99

$

In Stock, only 1 left!

0

81

Scag 424209

Turbo Baffle - 61V

$70.99

$

In Stock, only 1 left!

0

82

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

83

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+
