SVRII-36A-19FX - Scag V-Ride II 36" Stand-On Mower, 19hp Kawasaki 600FX (SN: T9200001 - T9299999) SVRII-32A / 36A ELECTRICAL SYSTEM Parts Diagram

V-Ride II 36" Stand-On Mower, 19hp Kawasaki 600FX

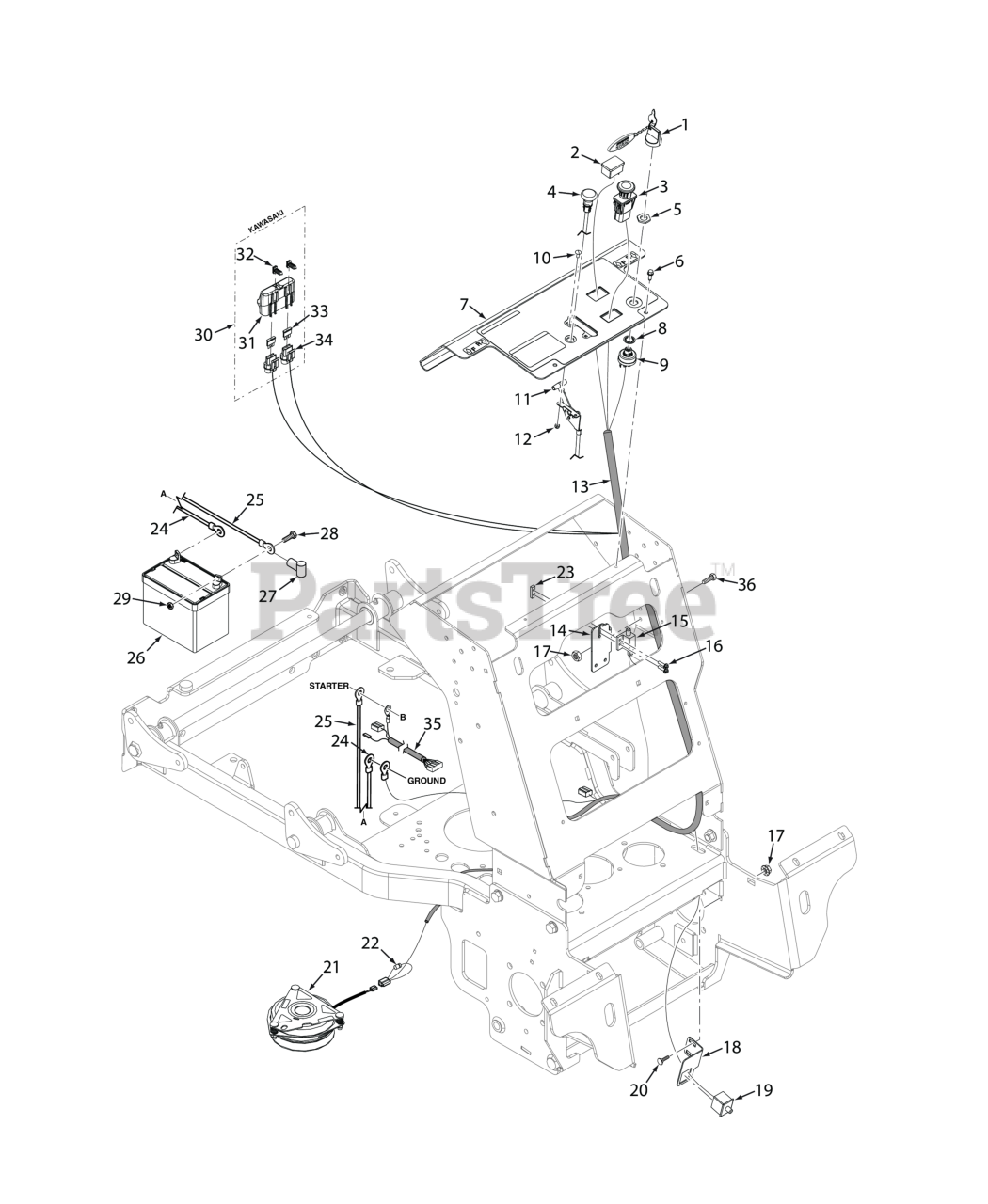

SVRII-32A / 36A ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

2

Scag 484565

Hour Meter, Inductive

$51.99

$

In Stock, only 1 left!

0

3

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, only 1 left!

0

4

Scag 483976

Choke Control (excludes EFI models)

$22.99

$

In Stock, only 2 left!

0

5

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

6

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

7

Scag 462985

Instrument Panel w/Decal - SVRII36

$

$

Not available

8

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

9

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

Note: (INCL. #5,8)

$27.99

$

In Stock, Qty 20+

0

10

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

11

Scag 483975

Throttle Control, SVR

$24.99

$

In Stock, only 3 left!

0

12

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

13

Scag 486105

Wire Harness, SVRII-36

$124.99

$

Usually ships in 2-12 days

0

14

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

15

Scag 481545

Switch, Interlock (see below)

$16.99

$

In Stock, only 2 left!

0

16

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

17

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

18

Scag 427481

Switch Bracket, OPC Switch -SVRII-36

$6.99

$

Usually ships in 2-12 days

0

19

Scag 484497

Switch, Double Pole OPC - SVRII-36

$16.99

$

In Stock, only 1 left!

0

20

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 462166

Clutch w/Tag GT2.5-FE02 (48 / 52)

$388.99

$

In Stock, only 1 left!

0

22

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

23

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

24

Scag 48029-24

Battery Cable, 39" Black (26EFI) - Kohler

$17.99

$

Usually ships in 2-12 days

0

25

Scag 48029-30

Battery Cable, 44" Red w/Braid (26EFI) - Kohler

$32.99

$

In Stock, only 2 left!

0

26

Scag 483665

Battery, 350 CCA (not available through Scag)

Note: (not available through Scag)

$

$

Not available

27

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

28

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

29

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 10

0

30

Scag 483642

Double Fuse Assy.

Note: (Incl. #31, 32, 33, 34)

$43.99

$

Usually ships in 2-12 days

0

31

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

32

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

33

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

34

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

35

Scag 485678

Wire Harness Adapter, Kawasaki FX & FT

$23.99

$

In Stock, only 1 left!

0

36

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18
