SVRII-36A-19FX - Scag V-Ride II 36" Stand-On Mower, 19hp Kawasaki 600FX (SN: S4000001 - S4099999) (Rev 02) SVRII-32A/36A ELECTRICAL SCHEMATIC Parts Diagram

V-Ride II 36" Stand-On Mower, 19hp Kawasaki 600FX

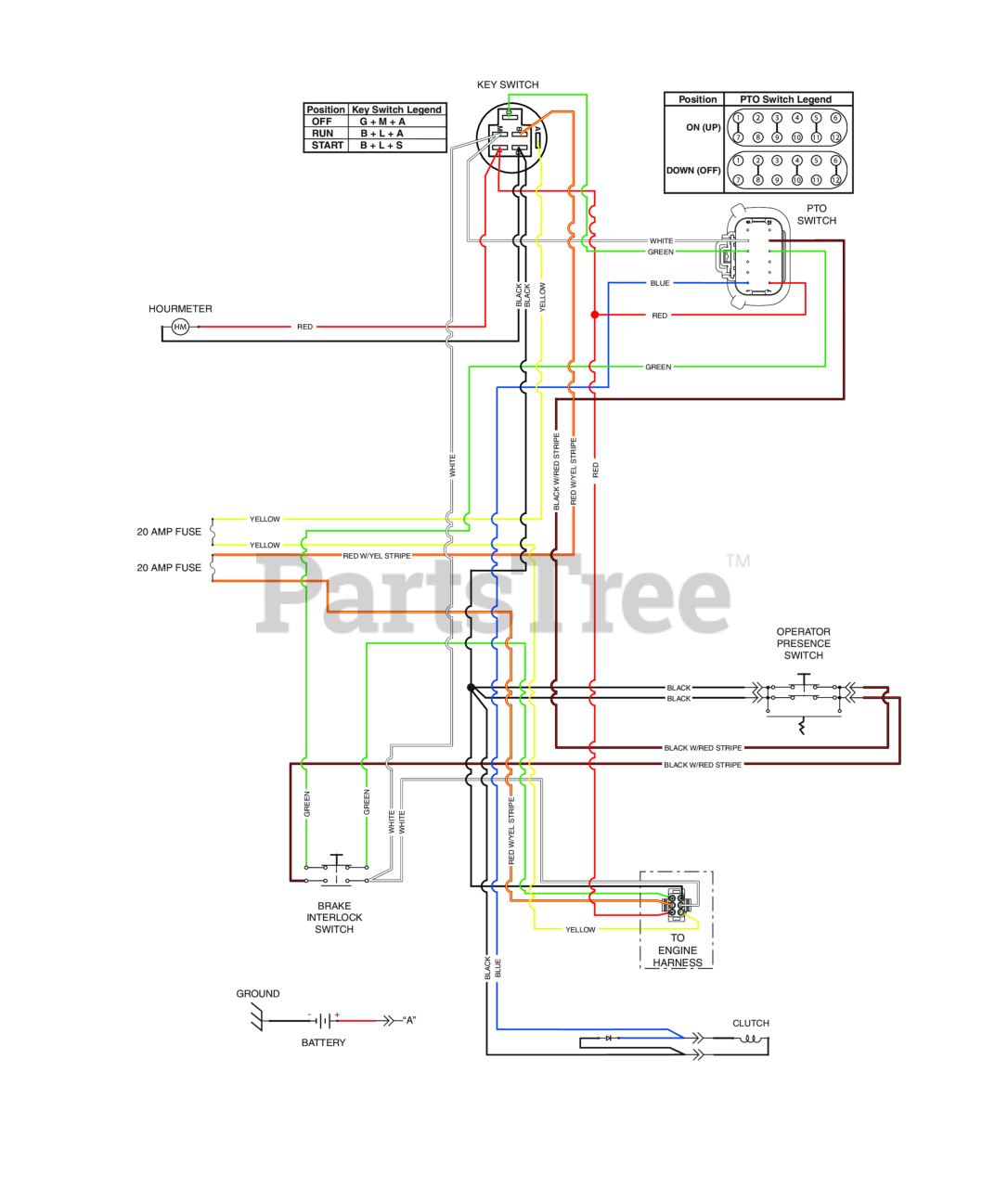

SVRII-32A/36A ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
