SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: N5900001 - N5999999) SVRII CUTTER DECK CONTROLS Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

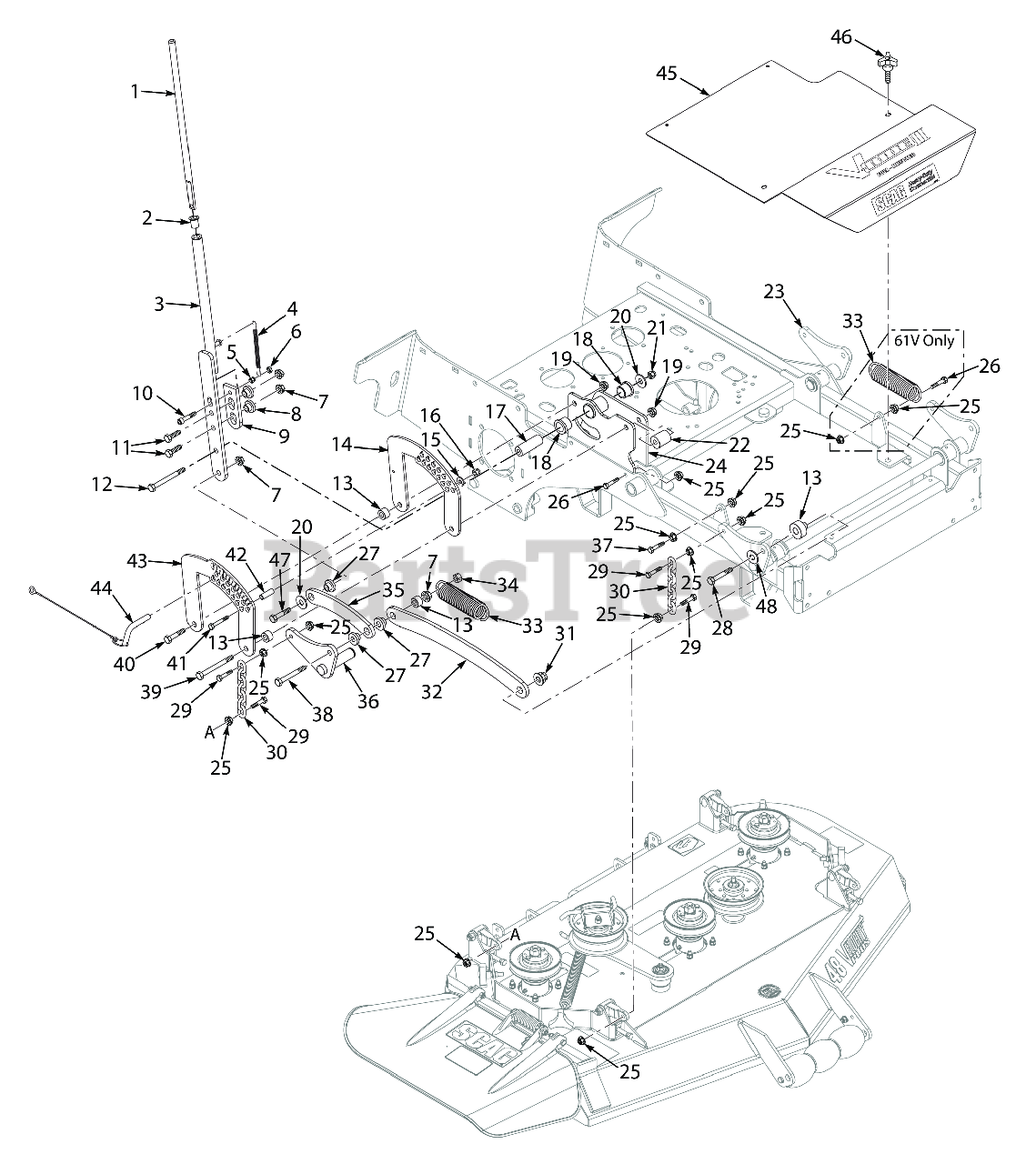

SVRII CUTTER DECK CONTROLS Parts Diagram

  • Title
1

Scag 43747

Actuator Rod, Deck Latch

$38.99

$

Usually ships in 2-12 days

0

2

Scag 483453-14

Bearing, .625 ID Plastic

$4.49

$

In Stock, only 2 left!

0

3

Scag 452811

Handle Weldment, Deck Latch

$79.99

$

In Stock, only 2 left!

0

4

Scag 483600

Spring, Deck Latch

$15.99

$

In Stock, only 2 left!

0

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

7

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 11

0

8

Scag 43748

Bushing, Deck Latch
(Superseded to 431087)

$1.49

$

In Stock, Qty 16

0

9

Scag 424652

Deck Latch, Outer

$20.99

$

Usually ships in 2-12 days

0

10

Scag 04015-41

Capscrew, Socket Head 3/8-16 x 1-3/4"

$0.99

$

Usually ships in 2-12 days

0

11

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 4 left!

0

12

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$5.49

$

In Stock, Qty 8

0

13

Scag 431064

Bushing. Deck Latch
(Superseded to 431088)

$3.49

$

In Stock, Qty 7

0

14

Scag 427219

Bracket, Deck Height

$36.99

$

Usually ships in 2-12 days

0

15

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 43872

Sleeve, Brake Pivot

$22.99

$

Usually ships in 2-12 days

0

18

Scag 483453-03

Bearing, Plastic

$7.99

$

Usually ships in 2-12 days

0

19

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 11

0

20

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

21

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

22

Scag 43666

Spacer, Foot Pedal SZC

$13.99

$

Usually ships in 2-12 days

0

23

Scag 452808

Arm Weldment, LH

$41.99

$

Usually ships in 2-12 days

0

24

Scag 462951

Deck Lift Pivot Assy.

$80.99

$

Usually ships in 2-12 days

0

25

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

27

Scag 43748

Bushing, Deck Latch
(Superseded to 431087)

$1.49

$

In Stock, Qty 16

0

28

Scag 04001-52

Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower)

$1.99

$

Usually ships in 2-12 days

0

29

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

30

Scag 485864

Chain
(Superseded to 462940)

$7.99

$

Usually ships in 2-12 days

0

31

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

0

32

Scag 427221

Link, Deck Lift

$45.99

$

In Stock, only 2 left!

0

33

Scag 484038

Spring, Deck Lift

$26.99

$

In Stock, only 1 left!

0

34

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 10

0

35

Scag 427220

Link, Deck Lift

$41.99

$

In Stock, only 1 left!

0

36

Scag 452809

Arm Weldment, RH

$41.99

$

Usually ships in 2-12 days

0

37

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

38

Scag 04001-52

Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower)

$1.99

$

Usually ships in 2-12 days

0

39

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4" (lower)

$2.99

$

In Stock, Qty 10

0

40

Scag 04001-72

Hex Head Bolt, 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

41

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

42

Scag 43668

Bushing, .502 O.D.

$2.99

$

Usually ships in 2-12 days

0

43

Scag 427288

Bracket, Deck Height - Outer

$43.99

$

Usually ships in 2-12 days

0

44

Scag 485857

Pin Assy. w/Lanyard

$18.99

$

In Stock, only 1 left!

0

45

Scag 462971

Belt Cover w/Decals
(Superseded to 463315)

$104.99

$

In Stock, Qty 5

0

46

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

47

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 4 left!

0

48

Scag 04043-08

Washer, Flat, 1/2-.562 x 1.375 x .109 HD

$1.49

$

In Stock, Qty 9

0
