SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: M9500001 - M9599999) SVRII Sheet Metal Components Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

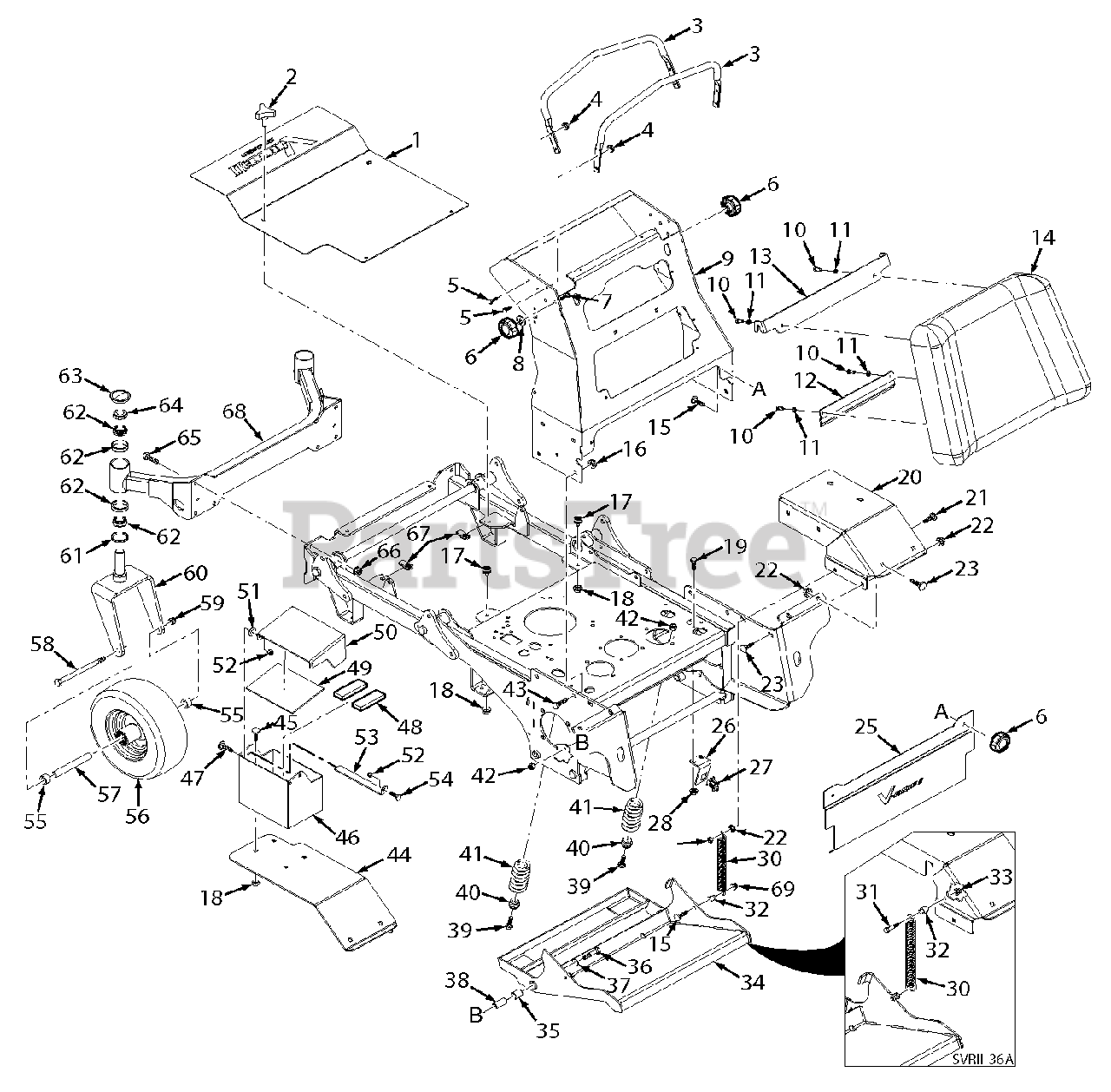

SVRII Sheet Metal Components Parts Diagram

  • Title

1

Scag 462971

Belt Cover w/Decals
(Superseded to 463315)

$101.99

$

In Stock, Qty 5

0

2

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 427189

Reference Bar

$53.99

$

Usually ships in 2-12 days

0

4

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 481885-06

Knob, 5/16-18

$14.99

$

In Stock, Qty 6

0

7

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

8

Scag 04024-03

Nut, Push-On 5/16

$1.49

$

In Stock, Qty 16

0

9

Scag 452872

Handlebar Weldment, SVRII-36

$343.99

$

Usually ships in 2-12 days

0

9

Scag 452832

Handlebar Weldment, SVRII

$365.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

12

Scag 427292

Bracket, Knee Pad - Lower

$17.99

$

Usually ships in 2-12 days

0

13

Scag 427289

Bracket, Knee Pad - Upper

$34.99

$

Usually ships in 2-12 days

0

14

Scag 462960

Operator Pad Assy, SVRII-36
(Superseded to 463330)

$356.99

$

In Stock, only 2 left!

0

14

Scag 462950

Operator Pad Assy, SVRII
(Superseded to 463291)

$359.99

$

Usually ships in 2-12 days

0

15

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04112-05

Nut, Spiral Lock 1/2-13

$2.99

$

Usually ships in 2-12 days

0

17

Scag 481284

Rubber Bumper

$16.99

$

In Stock, only 3 left!

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

20

Scag 427253

Fender, RH

$69.99

$

Usually ships in 2-12 days

0

20

Scag 427457

Fender, RH - SVRII-36

$61.99

$

Usually ships in 2-12 days

0

21

Scag 04003-05

Bolt, Carriage 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

22

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

24

Scag 462987

Mainframe Assy. - SVRII-36

$

$

Not available

24

Scag 462964

Mainframe Assy. - SVRII
(Superseded to 463218)

$2215.99

$

Usually ships in 2-12 days

0

25

Scag 427472

Guard, Foot - SVRII-36

$52.99

$

Usually ships in 2-12 days

0

25

Scag 427256

Guard, Foot -SVRII
(Superseded to 428479)

$41.99

$

Usually ships in 2-12 days

0

26

Scag 427481

Switch Bracket, OPC Switch -SVRII-36

$6.99

$

Usually ships in 2-12 days

0

26

Scag 427249

Switch Bracket, OPC Switch

$9.49

$

Usually ships in 2-12 days

0

27

Scag 484497

Switch, Double Pole OPC - SVRII-36

$16.99

$

In Stock, only 1 left!

0

27

Scag 48717

Switch, OPC - SVRII

$9.99

$

In Stock, only 1 left!

0

28

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

29

Scag 04117-02

Nut, Flange Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 48755

Spring

$10.99

$

In Stock, only 2 left!

0

31

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

32

Scag 43602

Spacer

$2.99

$

In Stock, only 2 left!

0

33

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 462959

Footplate Assy, SVRII-36

Note: (Incl. #35)

$319.99

$

Usually ships in 2-12 days

0

34

Scag 462949

Footplate Assy, SVRII

Note: (Incl. #35)

$226.99

$

Usually ships in 2-12 days

0

35

Scag 483453-04

Bearing

$3.99

$

In Stock, Qty 18

0

36

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

37

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

38

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

39

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 43867

Mount, Spring

$17.99

$

Usually ships in 2-12 days

0

41

Scag 484479

Spring, Suspension Platform

$41.99

$

Usually ships in 2-12 days

0

42

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

43

Scag 04017-36

Bolt, Hex Head Serrated Flange 1/2-13 x 1"

$2.99

$

In Stock, only 2 left!

0

44

Scag 427456

Fender, LH - SVRII-36

$65.99

$

Usually ships in 2-12 days

0

44

Scag 427252

Fender, LH

$69.99

$

Usually ships in 2-12 days

0

45

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 427316

Battery Box, Lower

$144.99

$

Usually ships in 2-12 days

0

47

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

48

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

49

Scag 485692

Insulation, Battery Cover

$4.49

$

Usually ships in 2-12 days

0

50

Scag 427317

Battery Box, Upper
(Superseded to 428066)

$18.99

$

Usually ships in 2-12 days

0

51

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

52

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

53

Scag 427318

Battery Box Latch

$9.99

$

Usually ships in 2-12 days

0

54

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

55

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

56

Scag 9276

Caster Wheel Assy., 11 x 4 (36)

$112.99

$

Usually ships in 2-12 days

0

56

Scag 9277

Caster Wheel Assy., 13 x 5 (48 / 52)

$174.99

$

In Stock, Qty 20+

0

56

Scag 9278

Caster Wheel Assy., 13 X 6.5 (61)

$191.99

$

In Stock, Qty 20+

0

57

Scag 43844

Sleeve, Caster Wheel (36)

$21.99

$

In Stock, only 4 left!

0

57

Scag 43581

Sleeve, Caster Wheel (48 / 52)

$9.49

$

In Stock, Qty 20+

0

57

Scag 43583

Sleeve, Caster Wheel (61)

$13.99

$

In Stock, Qty 20+

0

58

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2" (36)

$5.99

$

In Stock, Qty 20+

0

58

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48 / 52)

$5.49

$

In Stock, Qty 20+

0

58

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61)

$5.99

$

In Stock, Qty 20+

0

59

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

60

Scag 452034

Yoke Weldment (36)

$87.99

$

In Stock, only 1 left!

0

60

Scag 451471

Yoke Weldment (48 / 52)

$143.99

$

Usually ships in 2-12 days

0

60

Scag 451658

Yoke Weldment (61)

$111.99

$

In Stock, only 1 left!

0

61

Scag 481025

Seal, 2" x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

62

Scag 48668

Bearing w/ Race

$23.99

$

In Stock, Qty 20+

0

63

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

64

Scag 04021-20

Nut, Elastic Stop 1" - 14 Jam

$4.99

$

In Stock, Qty 20+

0

65

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

66

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

67

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

68

Scag 452870

Caster Support Weldment (36)

$326.99

$

Usually ships in 2-12 days

0

68

Scag 452861

Caster Support Weldment (48)

$461.99

$

Usually ships in 2-12 days

0

68

Scag 452805

Caster Support Weldment (52)

$318.99

$

Usually ships in 2-12 days

0

68

Scag 452806

Caster Support Weldment (61)

$335.99

$

Usually ships in 2-12 days

0

69

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0
