SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: M9500001 - M9599999) SVRII-36A Hydraulic Pump Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

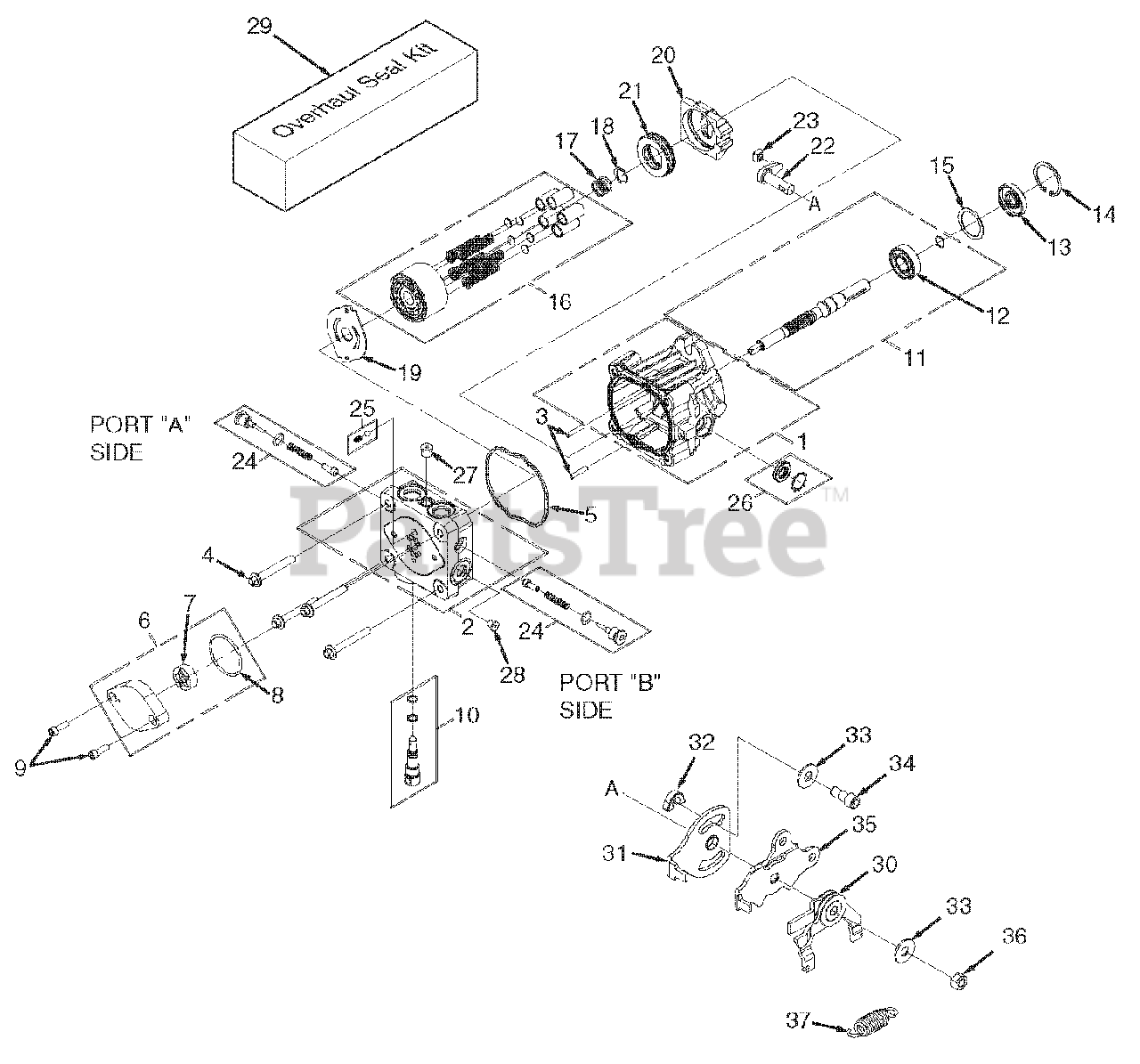

SVRII-36A Hydraulic Pump Parts Diagram

  • Title

1

Scag HG72598

Kit, Housing

$

$

Currently unavailable

2

Scag HG70517

Kit, End Cap

$300.99

$

In Stock, only 1 left!

0

3

Scag HG50641

Pin, .219 x 1.000

$

$

Not available

4

Scag HG50969

Bolt, M8 X 1.25 mm

$5.49

$

Usually ships in 2-12 days

0

5

Scag HG54022

Gasket, Housing

$8.99

$

In Stock, only 2 left!

0

6

Scag HG2513027

Kit, Charge Pump

$159.99

$

Usually ships in 2-12 days

0

7

Scag HG50273

Gerotor Assembly

$

$

Not available

8

Scag HG9004101-1340

O-Ring

$2.49

$

Usually ships in 2-12 days

0

9

Scag HG5095

Screw, Socket Head M6 X 1.0 - 20mm

$

$

Currently unavailable

10

Scag HG2513030

Kit, By-Pass

$43.99

$

Usually ships in 2-12 days

0

11

Scag HG70521

Kit, Shaft

$184.99

$

In Stock, only 1 left!

0

12

Scag HG50315

Bearing
(Superseded to 483948)

$24.99

$

In Stock, only 1 left!

0

13

Scag HG51161

Seal, 17 x 40 x 7 Lip

$9.99

$

Usually ships in 2-12 days

0

14

Scag HG50329

Ring, Retaining .156 Internal

$5.49

$

Usually ships in 2-12 days

0

15

Scag HG50951

Washer, 1.23 x 1.57 x .04

$3.99

$

Usually ships in 2-12 days

0

16

Scag HG70331

Kit, Block 10cc

$108.99

$

Usually ships in 2-12 days

0

17

Scag HG2003014

Spring, Block

$

$

Not available

18

Scag HG2003017

Washer, .59 x .79 x .04

$

$

Not available

19

Scag HG51444

Plate, Valve 10cc

$55.99

$

Usually ships in 2-12 days

0

20

Scag HG2003087

Swashplate

$

$

Not available

21

Scag HG50551

Bearing, Thrust

$24.99

$

Usually ships in 2-12 days

0

22

HG52866

Arm, Trunion

$

$

Not available

23

Scag HG2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

24

Scag HG2510027

Kit, Check Valve (.031 Orifice)

$44.99

$

Usually ships in 2-12 days

0

25

Scag HG70402

Kit, Charge Relief

$6.49

$

In Stock, only 1 left!

0

26

Scag HG2513043

Kit, Seal

$12.99

$

In Stock, only 1 left!

0

27

Scag HG9005110-4400

Plug, 7/16-20

$

$

Not available

28

Scag HG9005110-5600

Plug, 9/16-18

$

$

Currently unavailable

29

Scag HG70525

Seal Kit

$67.99

$

Usually ships in 2-12 days

0

30

Scag HG52413

RTN Assembly

$

$

Currently unavailable

31

Scag HG51391

Arm, Return

$

$

Currently unavailable

32

Scag HG51561

Spacer

$

$

Currently unavailable

33

Scag HG44130

Washer

$

$

Not available

34

Scag HG51400

Screw, 5/16-24 x 3/4" w/Patch

$

$

Currently unavailable

35

Scag HG51394

Control Arm

$

$

Currently unavailable

36

Scag HG52506

Nut, Center Lock 5/16-24 UNF

$

$

Currently unavailable

37

HG52401

Spring, External

$

$

Not available
