SVRII-36A-15FS - Scag V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS (SN: M9500001 - M9599999) SVRII-36A Electrical System Parts Diagram

V-Ride II 36" Stand-On Mower, 15hp Kawasaki 541FS

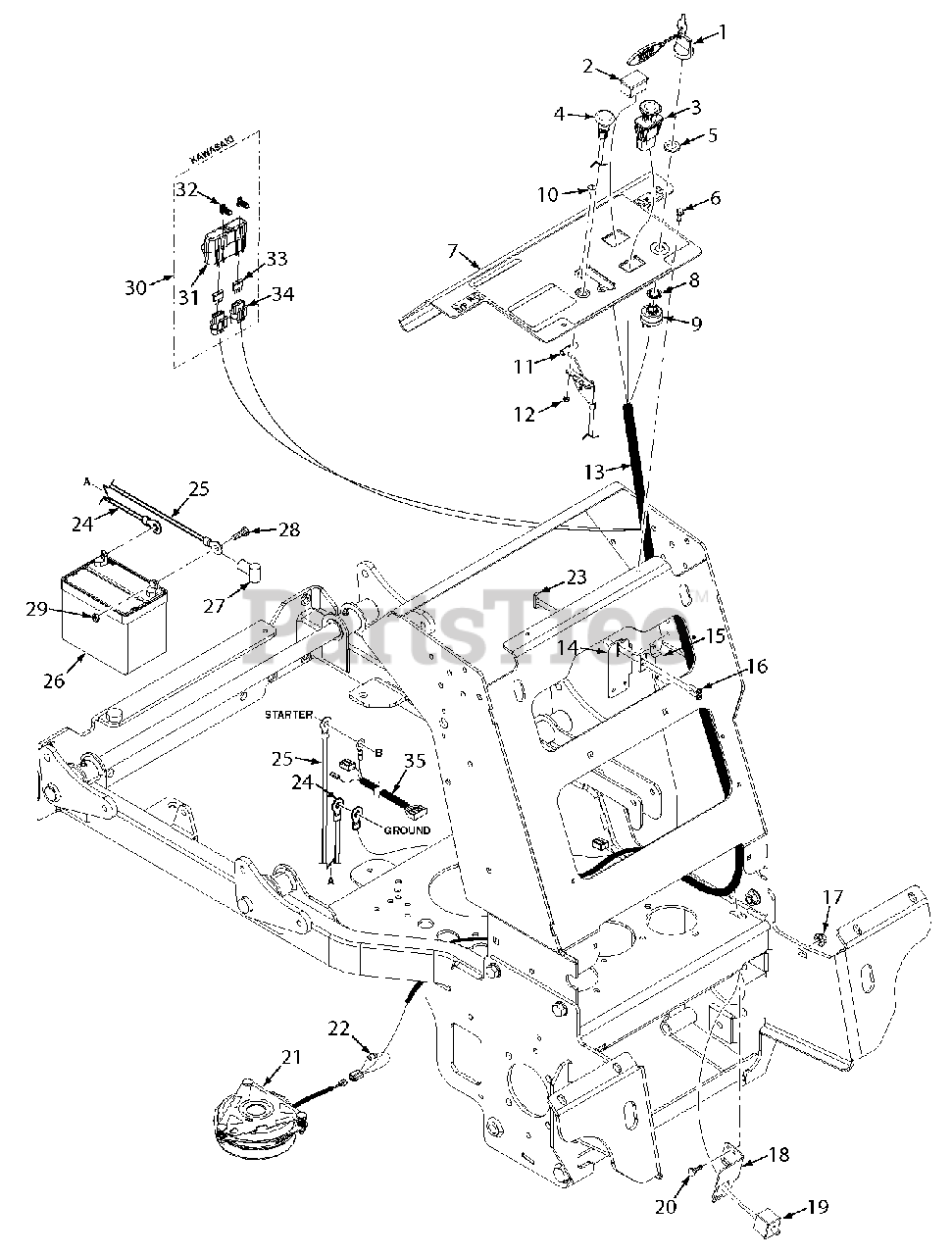

SVRII-36A Electrical System Parts Diagram

  • Title

1

Scag 462069

Key Assy. w/Fob

$8.49

$

In Stock, Qty 20+

0

2

Scag 484565

Hourmeter, Inductive

$51.99

$

In Stock, only 1 left!

0

3

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

4

Scag 483976

Choke Control

$22.99

$

In Stock, only 2 left!

0

5

Scag 48017-04

Nut, Special 5/8-32

$1.49

$

In Stock, Qty 5

0

6

Scag 04011-14

Screw, 1/4-20 x 3/4" Taptite

$0.99

$

In Stock, Qty 13

0

7

Scag 462985

Instrument Panel w/Decal - SVRII

$

$

Not available

8

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 6

0

9

Scag 48798

Switch, Key

$27.99

$

In Stock, Qty 20+

0

10

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

11

Scag 483975

Throttle Control

$24.99

$

In Stock, only 3 left!

0

12

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

13

Scag 485938

Wire Harness, SVRII-36

$325.99

$

Usually ships in 2-12 days

0

14

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

15

Scag 481545

Switch, Interlock - DPDT

$16.99

$

In Stock, only 2 left!

0

16

Scag 04010-12

Screw, #10-24 x 3/4" Taptite

$0.99

$

In Stock, only 1 left!

0

17

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

18

Scag 427481

Switch Bracket, Operator Presence

$6.99

$

Usually ships in 2-12 days

0

19

Scag 484497

Switch, Double Pole - N.O. / N.O.

$16.99

$

In Stock, only 1 left!

0

20

Scag 04003-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

21

Scag 462166

Clutch w/Tag GT2.5-FE02

$388.99

$

In Stock, only 1 left!

0

22

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

23

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

24

Scag 48029-24

Cable, Battery - Black 39"

$17.99

$

Usually ships in 2-12 days

0

25

Scag 48029-30

Cable, Battery - Red 44" w/Braid

$32.99

$

In Stock, only 2 left!

0

26

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available

27

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

28

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

29

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

30

Scag 483642

Double Fuse Assy.

Note: (Incl. #31, 32, 33, 34)

$43.99

$

Usually ships in 2-12 days

0

31

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

32

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

33

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

34

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

35

Scag 482543

Wire Harness Adaper - Kawasaki

$30.99

$

In Stock, only 1 left!

0
