SVRII-32A-16FX - Scag V-Ride II 32" Stand-On Mower, 16hp Kawasaki (SN: S3900001 - S3999999) (Rev 02) SVRII-32A / 36A SHEET METAL COMPONENTS Parts Diagram

V-Ride II 32" Stand-On Mower, 16hp Kawasaki

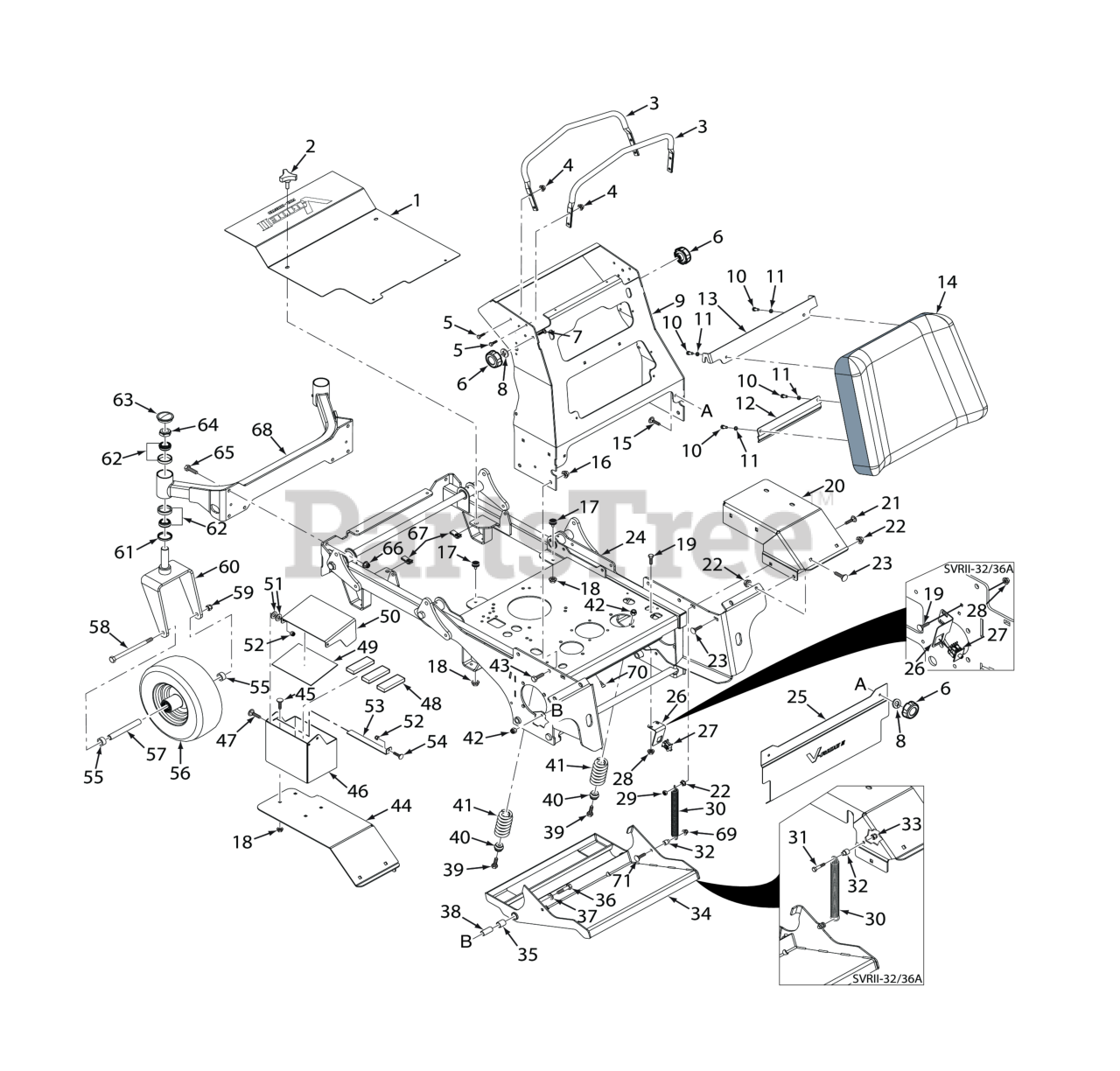

SVRII-32A / 36A SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 463315

Belt Cover w/Decals

$101.99

$

In Stock, Qty 5

0

2

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

3

Scag 427189

Reference Bar

$53.99

$

Usually ships in 2-12 days

0

4

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 481885-06

Knob, 5/16-18

$14.99

$

In Stock, Qty 6

0

7

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

8

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

9

Scag 452872

Handlebar Weldment, SVRII-36

$343.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 427292

Bracket, Knee Pad - Lower

$17.99

$

Usually ships in 2-12 days

0

13

Scag 427289

Bracket, Knee Pad - Upper

$34.99

$

Usually ships in 2-12 days

0

14

Scag 463330

Operator Pad Assy, (32/36)

Note: (INCL.10,11,12,13)

$356.99

$

In Stock, only 2 left!

0

15

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

16

Scag 04112-05

Locknut, 1/2-13 Spiral Lock

$2.99

$

Usually ships in 2-12 days

0

17

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 428068

Fender, RH - (32/36)

$84.99

$

Usually ships in 2-12 days

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

22

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

24

Scag 463172

Mainframe Assy. - SVRII- (32/36)

$1639.99

$

Usually ships in 2-12 days

0

25

Scag 427

Guard, Foot

$

$

Currently unavailable

26

Scag 427481

Switch Bracket, OPC Switch -SVRII-36

$6.99

$

Usually ships in 2-12 days

0

27

Scag 484497

Switch, Double Pole OPC - SVRII-36

$16.99

$

In Stock, only 1 left!

0

28

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

29

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, only 2 left!

0

31

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

32

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

33

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 462959

Footplate Assy, SVRII-36

Note: (Incl. #35)

$319.99

$

Usually ships in 2-12 days

0

35

Scag 483453-04

Bearing, .750 I.D. Plastic

$3.99

$

In Stock, Qty 18

0

36

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

38

Scag 43572

Yoke, Front Caster Wheel

$1.99

$

In Stock, Qty 5

0

39

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

40

Scag 43867

Mount, Spring

$17.99

$

Usually ships in 2-12 days

0

41

Scag 484479

Spring, Suspension Platform

$41.99

$

Usually ships in 2-12 days

0

42

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

43

Scag 04017-36

Capscrew, 1/2-13 x 1" Serrated Flange Hex Head

$2.99

$

In Stock, only 2 left!

0

44

Scag 428067

Fender, LH - (32/36)

$73.99

$

Usually ships in 2-12 days

0

45

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

46

Scag 427316

Battery Box, Lower

$144.99

$

Usually ships in 2-12 days

0

47

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

48

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

49

Scag 485692

Insulation, Battery Cover (Gas Only)

$4.49

$

Usually ships in 2-12 days

0

50

Scag 428066

Battery Box, Upper

$18.99

$

Usually ships in 2-12 days

0

51

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

52

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

53

Scag 427318

Battery Box Latch

$9.99

$

Usually ships in 2-12 days

0

54

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

55

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

56

Scag 921D

Caster Wheel Assembly, 11 x 4.0-5 (52V)

$125.99

$

Usually ships in 2-12 days

0

57

Scag 43844

Sleeve, Caster Wheel (52V)

$21.99

$

In Stock, only 4 left!

0

58

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2" (52V)

$5.99

$

In Stock, Qty 20+

0

59

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

60

Scag 453208

Yoke Weldment (32/36)

$71.99

$

Usually ships in 2-12 days

0

61

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

62

Scag 48668

Bearing Set

$23.99

$

In Stock, Qty 20+

0

63

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

64

Scag 04021-20

Nut, Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

65

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

66

Scag 04117-05

Nut, 7/16-14 Flange Elastic Stop

$0.99

$

Usually ships in 2-12 days

0

67

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

68

Scag 452870

Caster Support Weldment (36)

$326.99

$

Usually ships in 2-12 days

0

69

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

70

Scag 485846

BUMPER, PLUG

$8.99

$

Usually ships in 2-12 days

0

71

Scag 04003-13

Bolt, Carriage, 5/16-18 x 1½"

$

$

Currently unavailable
