SVRII-32A-16FX - Scag V-Ride II 32" Stand-On Mower, 16hp Kawasaki (SN: R5500001 - R5599999) SVRII 32A FUEL SYSTEM Parts Diagram

V-Ride II 32" Stand-On Mower, 16hp Kawasaki

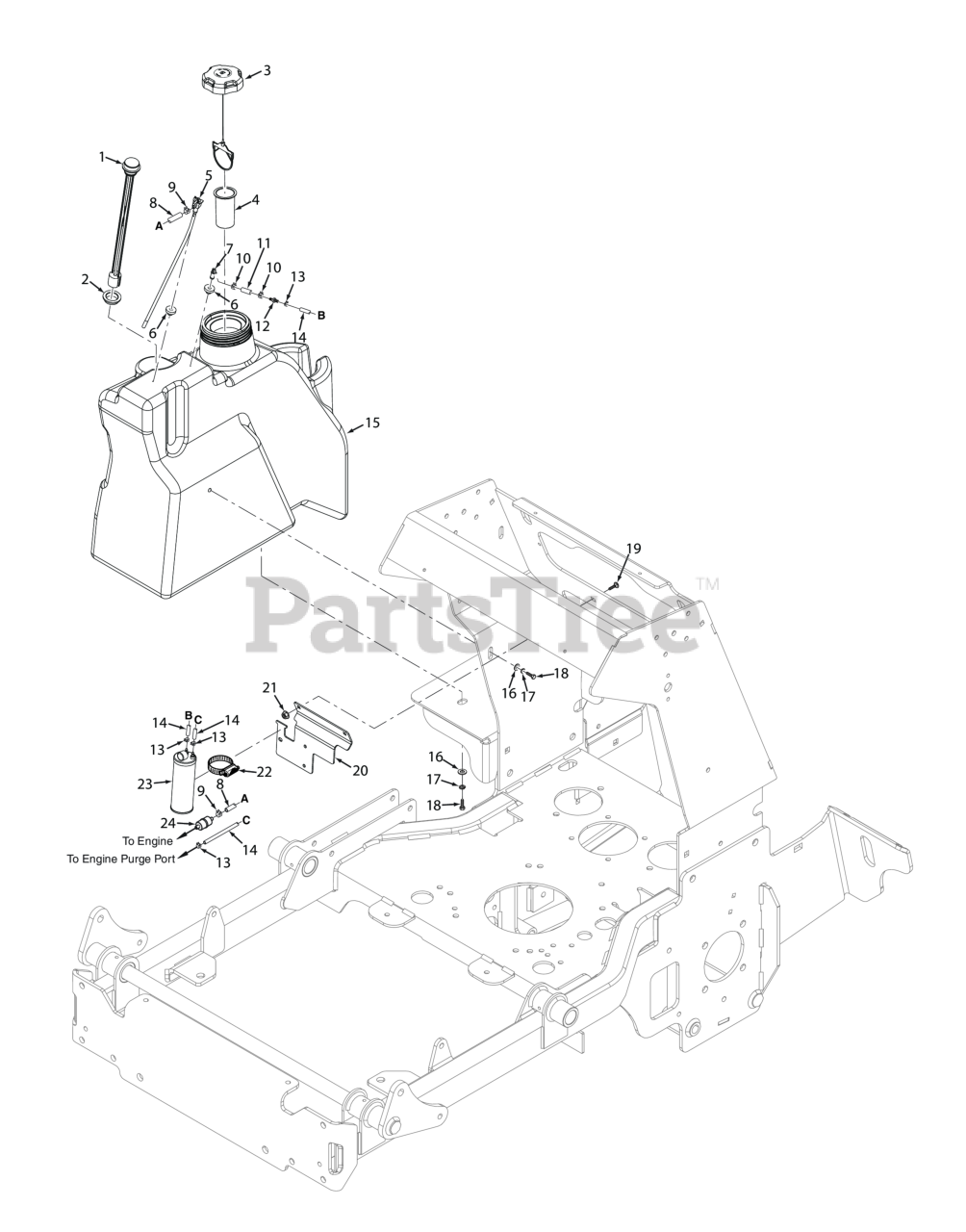

SVRII 32A FUEL SYSTEM Parts Diagram

  • Title

1

Scag 486461

Fuel Gauge Assy., 14.6" (32)
(Superseded to 485914)

$73.99

$

Usually ships in 2-12 days

0

2

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

3

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$53.99

$

Usually ships in 2-12 days

0

Scag 484297-01

Fuel Cap, Tethered - CA models only

$

$

Currently unavailable

4

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0

5

Scag 486460

Valve, Fuel Shutoff (32)

$62.99

$

Usually ships in 2-12 days

0

6

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

7

Scag 485923

Remote Vent
(Superseded to 486852)

$1.99

$

Usually ships in 2-12 days

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

10

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

11

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

12

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

13

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

14

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

15

Scag 463167

Fuel Tank Assy., SVRII-32

$542.99

$

Usually ships in 2-12 days

0

16

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

20

Scag 427280

Bracket, Hydro Tank Mounting

$21.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

22

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

23

Scag 484342

Carbon Canister - SVR-52V / SVR-61V

$101.99

$

In Stock, only 3 left!

0

Scag 484366

Dust Filter, Carbon Canister

$2.99

$

In Stock, Qty 14

0

24

Fuel Filter

Note: Order through Engine Manufacturer

$

$

Not available
