SVRII-32A-16FX - Scag V-Ride II 32" Stand-On Mower, 16hp Kawasaki (SN: P8000001 - P8099999) (Rev 01) SVRII STEERING CONTROLS Parts Diagram

V-Ride II 32" Stand-On Mower, 16hp Kawasaki

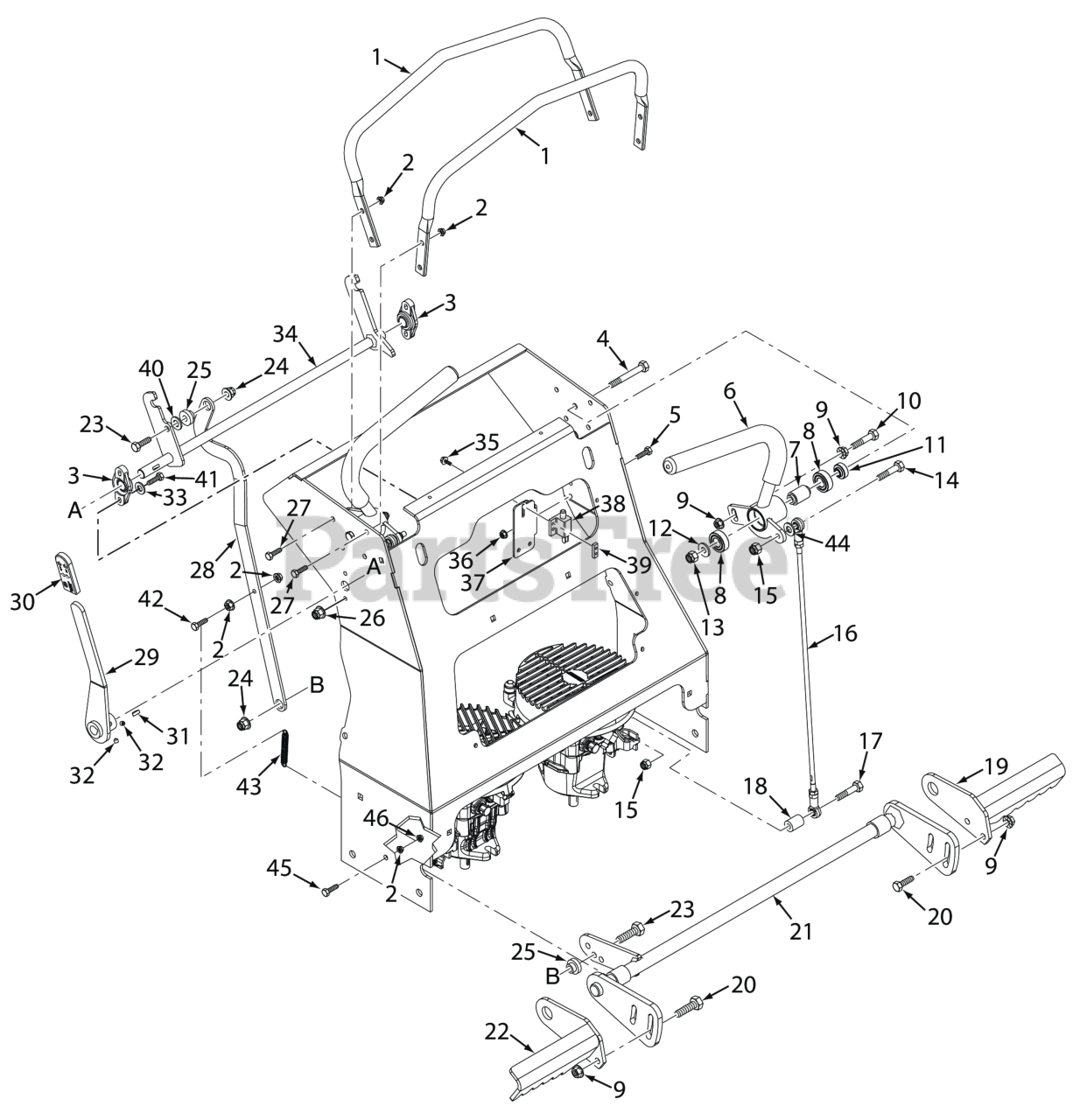

SVRII STEERING CONTROLS Parts Diagram

  • Title

1

Scag 427189

Reference Bar

$54.99

$

Usually ships in 2-12 days

0

2

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

3

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

4

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 15

0

5

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

6

Scag 462912

Handlebar Assy., LH

$115.99

$

Usually ships in 2-12 days

0

6

Scag 462913

Handllevar Assy., RH

$118.99

$

Usually ships in 2-12 days

0

7

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

8

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

9

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

11

Scag 431024

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

12

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

15

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 485842

Linkage Assy., Steering

$69.99

$

Usually ships in 2-12 days

0

17

Scag 04108-02

Hex Head Socket, 5/16-18 x 1" (36)

$2.49

$

Usually ships in 2-12 days

0

17

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

18

Scag 43976

Spacer (excludes SVRII-36A)

$1.99

$

Usually ships in 2-12 days

0

19

Scag 452883

Brake Paddle Weldment, RH (36)

$23.99

$

Usually ships in 2-12 days

0

19

Scag 452842

Brake Paddle Weldment, RH

$52.99

$

Usually ships in 2-12 days

0

20

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

21

Scag 453139

Bellcrank Weldment, Brake (32/36)

$160.99

$

Usually ships in 2-12 days

0

21

Scag 452829

Bellcrank Weldment, Brake

$206.99

$

Usually ships in 2-12 days

0

22

Scag 452882

Brake Paddle Weldment, LH

$32.99

$

Usually ships in 2-12 days

0

22

Scag 452841

BRAKE PADDLE WLMT, LH

$36.99

$

Usually ships in 2-12 days

0

23

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 14

0

24

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-30

BUSHING, BRONZE - .376 ID X .627 OD

$1.99

$

Usually ships in 2-12 days

0

26

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

27

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 427538

Link, Brank Engage (36)

$14.99

$

Usually ships in 2-12 days

0

28

Scag 427547

Link, Brake Engage

$31.99

$

In Stock, only 1 left!

0

29

Scag 463020

Brake Lever Assy. - SVRII (Incl. #30)
(Superseded to 463265)

$51.99

$

In Stock, only 1 left!

0

30

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

31

Scag 04063-12

KEY, WOODRUFF #61, 3/16 X 5/8

$0.99

$

In Stock, Qty 12

0

32

Scag 04012-15

Set Screw 1/4-20 x 1/4"

$0.99

$

In Stock, Qty 12

0

33

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 8

0

34

Scag 452830

Lock Weldment, Neutral

$74.99

$

Usually ships in 2-12 days

0

35

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

36

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

37

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

38

Scag 481545

Switch, Interlock (see below)

$17.99

$

In Stock, only 2 left!

0

38

Scag 481637

Switch, Interlock, Park Brake Normally Open

$9.99

$

In Stock, Qty 20+

0

39

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

40

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

42

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

43

Scag 484038

Spring, Deck Lift

$26.99

$

In Stock, only 1 left!

0

44

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

45

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

46

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

46

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0
