SVRII-32A-16FX - Scag V-Ride II 32" Stand-On Mower, 16hp Kawasaki (SN: P8000001 - P8099999) (Rev 01) SVRII-32A / 36A HYDRAULIC PUMP Parts Diagram

V-Ride II 32" Stand-On Mower, 16hp Kawasaki

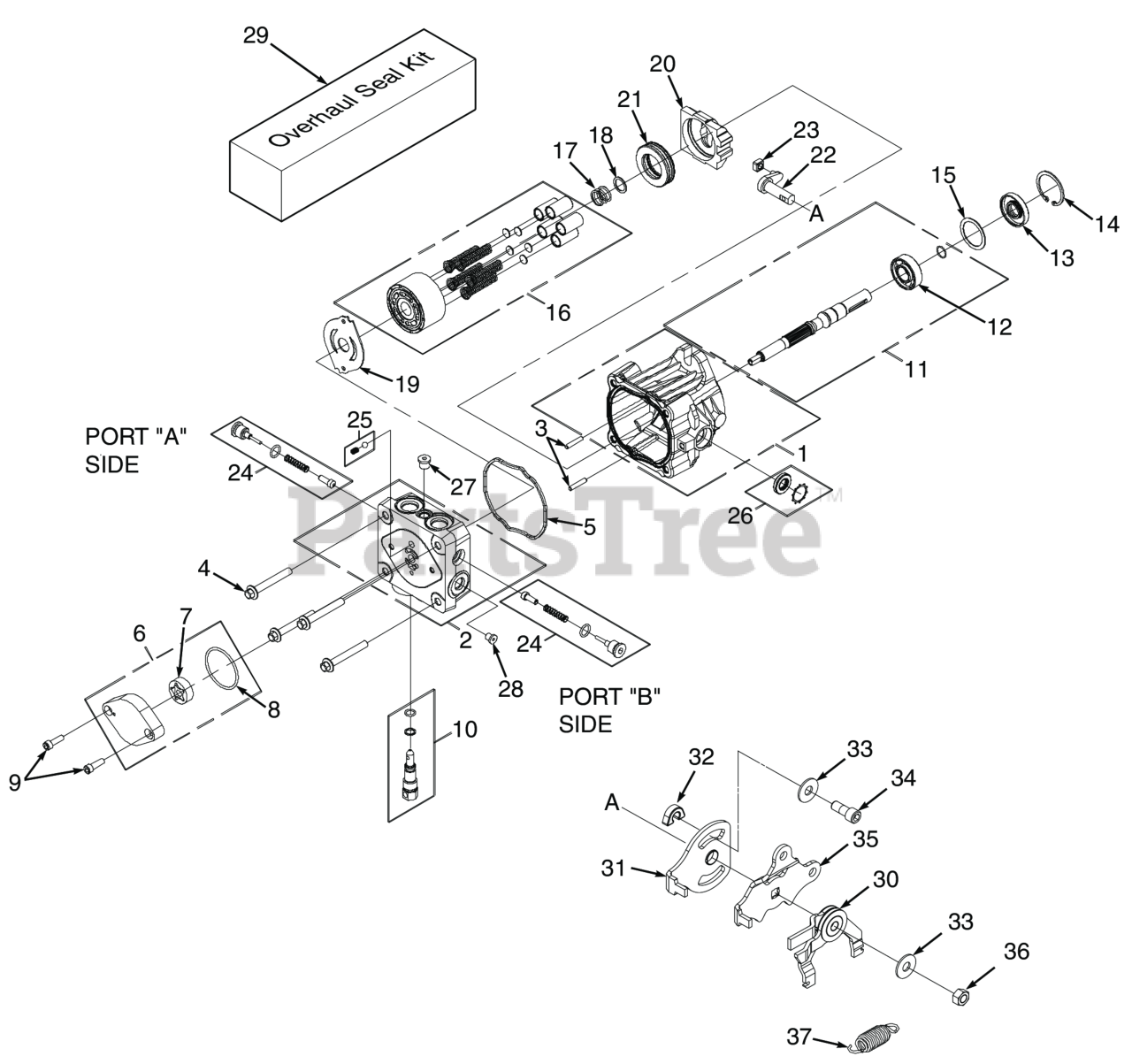

SVRII-32A / 36A HYDRAULIC PUMP Parts Diagram

  • Title

1

Scag HG72598

Kit, Housing

$

$

Currently unavailable

2

Scag HG70517

Kit, End Cap

$308.99

$

In Stock, only 1 left!

0

3

Scag HG 50641

Straight Headless Pin

$

$

Not available

4

Scag HG 50969

Hex Flange Bolt, M8-1.25 x 60mm

$6.49

$

Usually ships in 2-12 days

0

5

Scag HG 54022

Gasket, Housing

$8.99

$

In Stock, only 2 left!

0

6

Scag HG 2513027

Charge Pump Cover

$162.99

$

Usually ships in 2-12 days

0

7

Scag HG 50273

Gerotor Assembly (1.9 cc)

$

$

Not available

8

Scag HG 9004101-1340

O-Ring

$

$

Currently unavailable

9

Scag HG5095

Screw, Socket Head M6 X 1.0 - 20mm

$

$

Currently unavailable

10

Scag HG 2513030

Bypass Valve Kit

$44.99

$

Usually ships in 2-12 days

0

11

Scag HG 70521

Pumpshaft Kit

$228.99

$

In Stock, only 1 left!

0

12

Scag HG 50315

Bearing, Ball 17 x 40 x 12 Open

$25.99

$

In Stock, only 1 left!

0

13

Scag HG 51161

Seal, Lip 17 x 40 x 7

$12.99

$

Usually ships in 2-12 days

0

14

Scag HG 50329

R i n g , Retaining 2.06 Internal

$6.49

$

Usually ships in 2-12 days

0

15

Scag HG 50951

Washer, 1.23 x 1.56 x .04

$4.99

$

Usually ships in 2-12 days

0

16

Scag HG 70331

Cylinder Block Kit

$134.99

$

Usually ships in 2-12 days

0

17

Scag HG 2003014

Spring, Block

$

$

Not available

18

Scag HG 2003017

Washer, Flat .59 x .79 x .04

$

$

Not available

19

Scag HG 51444

Plate, Valve 10cc

$56.99

$

Usually ships in 2-12 days

0

20

Scag HG 2003087

Variable Swash Plate

$

$

Not available

21

Scag HG 50551

Ball Thrust Bearing

$25.99

$

Usually ships in 2-12 days

0

22

Scag HG 52866

Trunnion Arm

$

$

Currently unavailable

23

Scag HG 2000015

Slot Guide

$9.49

$

Usually ships in 2-12 days

0

24

Scag HG 2510027

Kit, Check Valve (.031 Orifice)

$55.99

$

Usually ships in 2-12 days

0

25

Scag HG 70402

Charge Relief Valve Kit

$8.49

$

In Stock, only 1 left!

0

26

Scag HG 2513043

Trunnion Seal with Retainer

$14.99

$

In Stock, only 1 left!

0

27

Scag HG 9005110-4400

Straight Thread Plug

$

$

Currently unavailable

28

Scag HG9005110-5600

Straight Thread Plug

$

$

Currently unavailable

29

Scag HG 70525

Overhaul Seal Kit

$69.99

$

Usually ships in 2-12 days

0

30

Scag HG52413

Assembly, RTN

$

$

Currently unavailable

31

Scag HG51391

Arm, Return

$

$

Currently unavailable

32

Scag HG51561

Spacer

$

$

Currently unavailable

33

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

34

Scag HG51400

Screw, 5/16-24 x 3/4" w/Patch

$

$

Currently unavailable

35

Scag HG51394

Control Arm

$

$

Currently unavailable

36

Scag HG52506

Nut, Center Lock 5/16-24 UNF

$

$

Currently unavailable

37

Scag HG 52401

Spring, Extension

$

$

Currently unavailable
