SVR61V-801FX - Scag V-Ride 61" Stand-On Mower, Kawasaki 801FX (SN: H4000001 - H4099999) SVR61V Cutter Deck Controls Parts Diagram

V-Ride 61" Stand-On Mower, Kawasaki 801FX

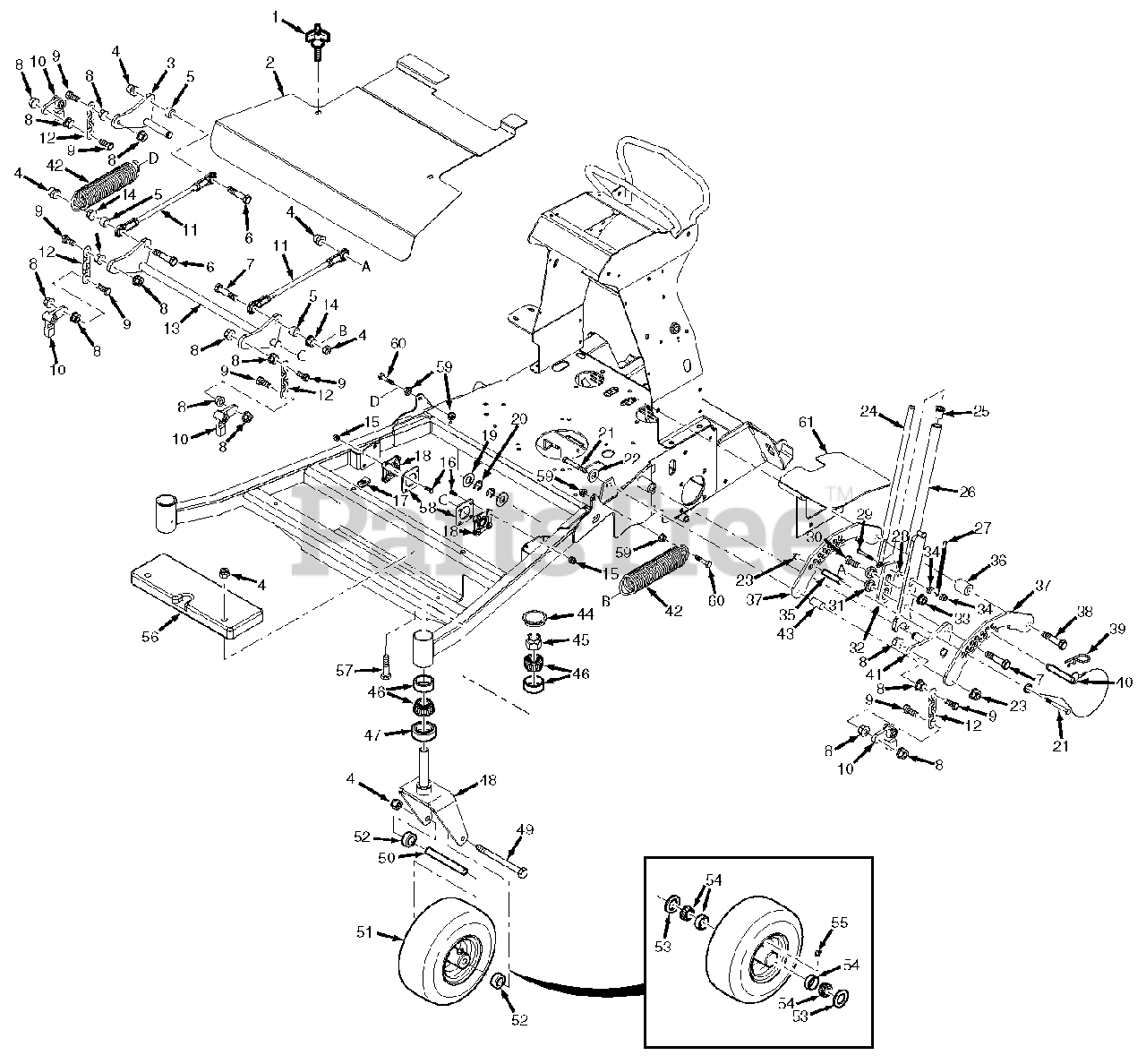

SVR61V Cutter Deck Controls Parts Diagram

  • Title

1

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

2

Scag 491616

Belt Cover w/Decals (61V)
(Superseded to 462640)

$137.99

$

Usually ships in 2-12 days

0

3

Scag 452063

Arm Weldment, RH

$33.99

$

Usually ships in 2-12 days

0

4

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

5

Scag 43806

Spacer

$10.99

$

Usually ships in 2-12 days

0

6

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

0

7

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

8

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 483361

Lever, Deck Level

$21.99

$

In Stock, only 1 left!

0

11

Scag 484274

Linkage, Deck Lift (61V)

$88.99

$

Usually ships in 2-12 days

0

12

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

13

Scag 452161

Deck Lift Weldment (61V))

$112.99

$

Usually ships in 2-12 days

0

14

Scag 04019-06

Nut, Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

15

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

18

Scag 483334

Bearing, Deck Lift - 61V

$15.99

$

In Stock, only 2 left!

0

19

Scag 04041-08

Flatwasher, 3/4-.766 x 1.25 x .0598

$0.99

$

In Stock, Qty 20+

0

20

Scag 04050-02

Retaining Ring, .750 "E"

$0.99

$

In Stock, Qty 7

0

21

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

22

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 43747

Actuator Rod

$37.99

$

Usually ships in 2-12 days

0

25

Scag 483453-14

Bearing

$4.49

$

In Stock, only 2 left!

0

26

Scag 452061

Handle Weldment, Deck Latch

$94.99

$

In Stock, only 2 left!

0

27

Scag 483600

Spring, Deck Latch

$15.99

$

In Stock, only 2 left!

0

28

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

29

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

31

Scag 43748

Bushing, Deck Latch
(Superseded to 431087)

$1.49

$

In Stock, Qty 16

0

32

Scag 424652

Deck Latch, Outer

$20.99

$

Usually ships in 2-12 days

0

33

Scag 04019-06

Nut, Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

34

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

35

Scag 43554

Spacer

$9.49

$

Usually ships in 2-12 days

0

36

Scag 43666

Spacer

$13.99

$

Usually ships in 2-12 days

0

37

Scag 425468

Bracket, Deck Height (61V)

$38.99

$

Usually ships in 2-12 days

0

38

Scag 04001-82

Bolt, Hex Head 1/2-13 x 4-1/2"

$6.49

$

In Stock, Qty 7

0

39

Scag 04062-04

Hair Pin Cotter

$1.49

$

In Stock, Qty 20+

0

40

Scag 483345

Pin Assembly w/Lanyard

$11.99

$

In Stock, Qty 6

0

41

Scag 452062

Arm Weldment, LH

$47.99

$

Usually ships in 2-12 days

0

42

Scag 483763

Spring, Deck Lift

$52.99

$

Usually ships in 2-12 days

0

43

Scag 43805

Spacer

$10.99

$

Usually ships in 2-12 days

0

44

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

45

Scag 04021-20

Nut, Elastic Stop 1"-14

$4.99

$

In Stock, Qty 20+

0

46

Scag 481657

Bearing w/Race
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

47

Scag 481025

Seal, 2" OD x 1.625 ID

$4.99

$

In Stock, Qty 20+

0

48

Scag 451658

Caster Yoke Weldment

$111.99

$

In Stock, only 1 left!

0

49

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

$5.99

$

In Stock, Qty 20+

0

50

Scag 43583

Sleeve, Caster Wheel

$13.99

$

In Stock, Qty 20+

0

51

Scag 9278

Caster Wheel Assembly, 13 x 6.5

$191.99

$

In Stock, Qty 20+

0

52

Scag 43584

Seal

$2.99

$

In Stock, Qty 20+

0

53

Scag 482622

Roller Bearing, Short

$9.99

$

In Stock, Qty 20+

0

54

Scag 482621

Bearing w/Race

$20.99

$

In Stock, Qty 20+

0

55

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, only 1 left!

0

56

Scag 41020

Weight

$114.99

$

Usually ships in 2-12 days

0

57

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4" (One Weight)

$2.49

$

In Stock, Qty 6

0

57

Scag 04001-82

Bolt, Hex Head 1/2-13 x 4-1/2" (Two Weights Installed)

$6.49

$

In Stock, Qty 7

0

57

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2" (Three Weights Installed)

$4.49

$

In Stock, Qty 13

0

58

Scag 425209

Reinforcement, Bearing

$8.49

$

In Stock, Qty 12

0

59

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

60

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

61

Scag 452164

Fender Weldment

$99.99

$

Usually ships in 2-12 days

0
