SVR61V-801FX - Scag V-Ride 61" Stand-On Mower, Kawasaki 801FX (SN: H4000001 - H4099999) SVR-61 Hydraulic And Engine Components Parts Diagram

V-Ride 61" Stand-On Mower, Kawasaki 801FX

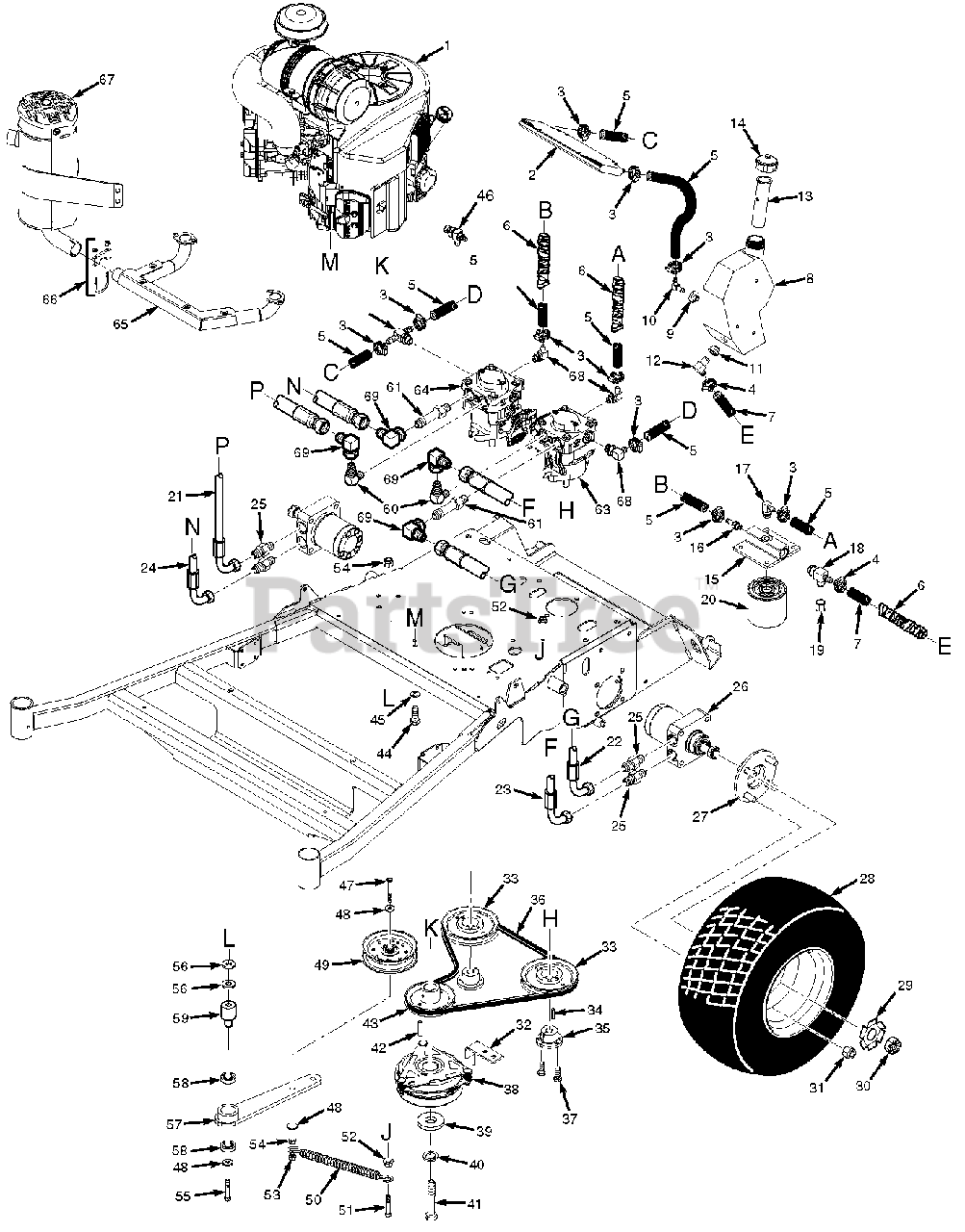

SVR-61 Hydraulic And Engine Components Parts Diagram

  • Title

1

Scag 484219

Engine, 29hp Kawasaki FX

$

$

Currently unavailable

2

Scag 484317

Cooler, Transmission (61V)

$186.99

$

Usually ships in 2-12 days

0

3

Scag 48136-13

Clamp, .69 Max Dia.

$7.49

$

In Stock, Qty 20+

0

4

Scag 48136-05

Clamp, .87 Max Dia.

$3.99

$

In Stock, only 2 left!

0

5

Scag 48811

Hose, 3/8 Pushlock

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 482839

Heatshield, Flexible

$

$

Currently unavailable

7

Scag 48351

Hose, 1/2 Pushlock

Note: (order by inch)

$0.99

$

In Stock, Qty 12

0

8

Scag 462176

Hydraulic Tank Assy.

Note: (incl. # 9 through 13)

$215.99

$

In Stock, only 1 left!

0

9

Scag 482571

Bushing, .56 Dia, Viton

$12.99

$

In Stock, Qty 20+

0

10

Scag 482572

Fitting, 90 Degree - .38 Hose

$9.99

$

Usually ships in 2-12 days

0

11

Scag 482573

Bushing, .78 Dia. Viton

$13.99

$

In Stock, only 2 left!

0

12

Scag 482574

Fitting, 90 Degree - .50 Hose

$18.99

$

In Stock, only 1 left!

0

13

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

14

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

15

Scag 482417

Filter Head

$125.99

$

Usually ships in 2-12 days

0

16

Scag 482800-02

Fitting

$16.99

$

Usually ships in 2-12 days

0

17

Scag 482266-01

Elbow, 90 Degree

$31.99

$

Usually ships in 2-12 days

0

18

Scag 482481

Tee Fitting, 3/4 O-Ring

$38.99

$

Usually ships in 2-12 days

0

19

Scag 48571-02

Cap, 3/4" JIC

$5.99

$

Usually ships in 2-12 days

0

20

Scag 48462-01

Oil Filter

$25.99

$

In Stock, Qty 20+

0

21

Scag 484510

Hose Assembly

$75.99

$

Usually ships in 2-12 days

0

22

Scag 484507

Hose Assembly

$72.99

$

Usually ships in 2-12 days

0

23

Scag 484508

Hose Assembly

$93.99

$

Usually ships in 2-12 days

0

24

Scag 484509

Hose Assembly

$83.99

$

Usually ships in 2-12 days

0

25

Scag 48572-02

Fitting, Union 1/2 x 5/8

$12.99

$

Usually ships in 2-12 days

0

26

Scag 483388

Wheel Motor

$565.99

$

Usually ships in 2-12 days

0

27

Scag 462275

Wheel Hub

$123.99

$

In Stock, only 1 left!

0

28

Scag 484056

Wheel Assembly

$256.99

$

In Stock, only 1 left!

0

28

Scag 481868

Rim w/Valve Stem

$185.99

$

Usually ships in 2-12 days

0

28

Scag 484057

Tire, 20 x 10.5-8 4-Ply

$204.99

$

Usually ships in 2-12 days

0

29

Scag 422214

Lockwasher, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

30

Scag 48679

Hex Castle Nut, 3/4-28

$26.99

$

Usually ships in 2-12 days

0

31

Scag 04028-02

Wheel Nut

$1.49

$

In Stock, Qty 20+

0

32

Scag 452162

Anti-Rotation Bracket
(Superseded to 452923)

$20.99

$

In Stock, only 2 left!

0

33

Scag 482649

Pulley, 5.45 OD - Tapered Bore

$48.99

$

In Stock, only 1 left!

0

34

Scag 04063-14

Key, 5 x 5 x 25mm

$0.99

$

In Stock, Qty 5

0

35

Scag 482085

Tapered Hub, 15mm Bore

$27.99

$

Usually ships in 2-12 days

0

36

Scag 483520

Belt, Pump Drive

$23.99

$

In Stock, Qty 20+

0

37

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Gr. 8

$0.99

$

In Stock, Qty 20+

0

38

Scag 462339

Clutch w/Tag

$457.99

$

In Stock, only 1 left!

0

39

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

40

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

41

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" Patch

$1.99

$

In Stock, Qty 12

0

42

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

43

Scag 483802

Pulley, 4.75 OD - 1.125" Bore

$76.99

$

Usually ships in 2-12 days

0

44

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

45

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

46

Scag 484089

Oil Drain

$30.99

$

Usually ships in 2-12 days

0

47

Scag 04001-161

Bolt, Hex Head 3/8-16 x 2-3/4"

$3.99

$

In Stock, only 2 left!

0

48

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

49

Scag 483213

Pulley, 4-1/2" Idler

$52.99

$

Usually ships in 2-12 days

0

50

Scag 483526

Spring, Transmission

$25.99

$

In Stock, only 3 left!

0

51

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

52

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

53

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

54

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

55

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

56

Scag 04041-12

Flatwasher, 3/8-.375 x 1-1/2 x .059

$0.99

$

In Stock, Qty 9

0

57

Scag 462229

Idler Arm Assy

Note: (incl. # 58)

$67.99

$

Usually ships in 2-12 days

0

58

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

59

Scag 43734

Idler Pivot, Long

$34.99

$

In Stock, only 1 left!

0

60

Scag 48350-05

Elbow, 90 Degree - 1/2 x 1/2

$32.99

$

Usually ships in 2-12 days

0

61

Scag 484512

Fitting, Union 3/4-16 JIC x O-Ring

$16.99

$

Usually ships in 2-12 days

0

62

Scag 483280

Tubing, Oil Drain

Note: (order by inch)

$3.49

$

Usually ships in 2-12 days

0

63

Scag 484277

Pump, LH - 12cc
(Superseded to 484487)

$1076.99

$

Usually ships in 2-12 days

0

64

Scag 484278

Pump, RH - 12cc
(Superseded to 484488)

$1076.99

$

Usually ships in 2-12 days

0

65

Scag 484198

Exhaust Manifold, 29FX Kawasaki

$100.99

$

Usually ships in 2-12 days

0

66

Scag 481259

Clamp, Muffler 1.25 Dia.

$5.99

$

Usually ships in 2-12 days

0

67

Scag 484644

Muffler, 29FX Kawasaki

$173.99

$

Usually ships in 2-12 days

0

68

Scag 482266-01

Elbow, 90 Degree

$31.99

$

Usually ships in 2-12 days

0

69

Scag 481203-02

Elbow, 1/2 JIC Female to 1/2 JIC Male

$12.99

$

In Stock, only 1 left!

0
