SVR61V-29FX - Scag V-Ride 61" Stand-On Mower, 29hp Kawasaki (SN: F2900001 - F2999999) SVR-61V Sheet Metal Components Parts Diagram

V-Ride 61" Stand-On Mower, 29hp Kawasaki

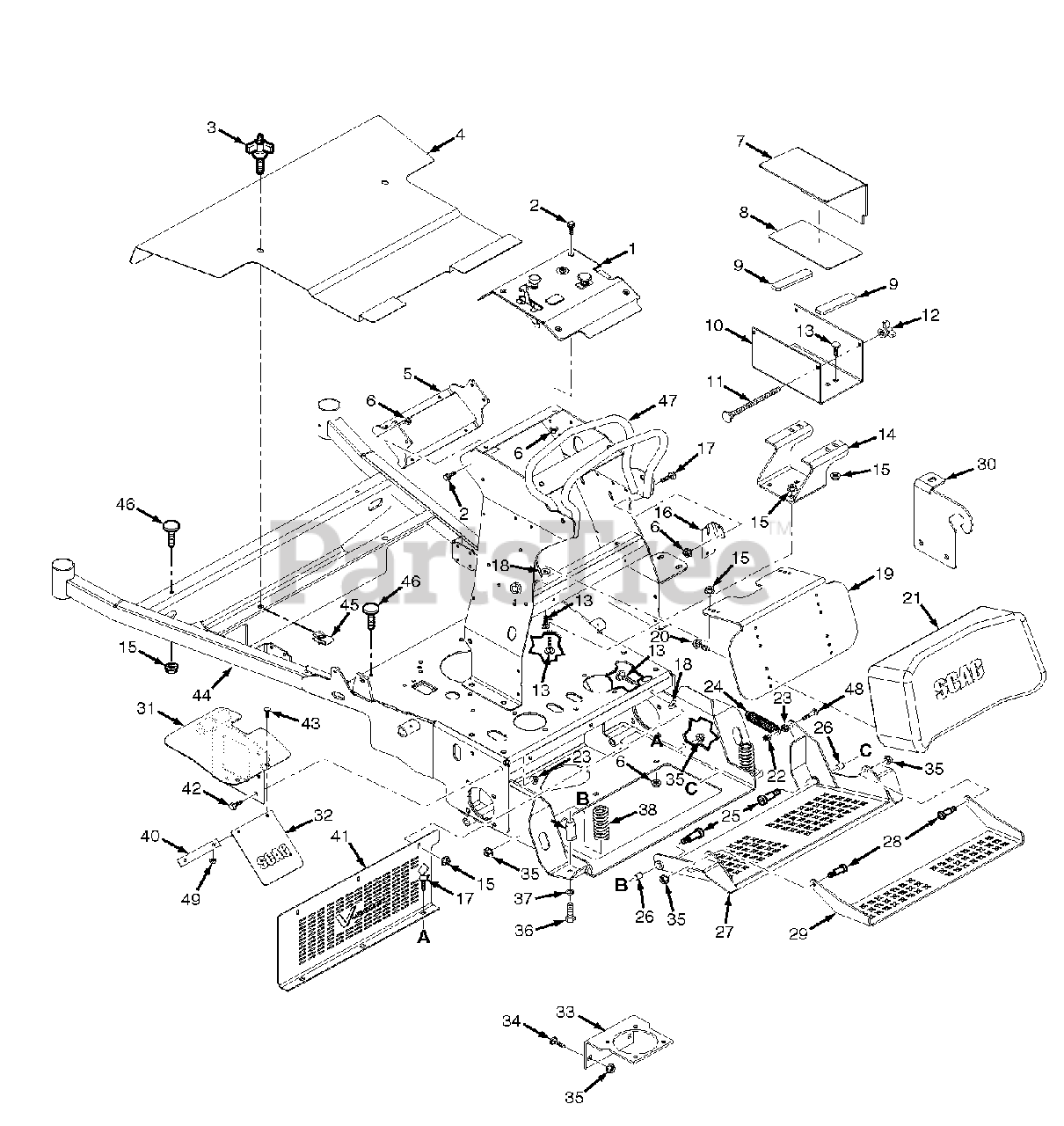

SVR-61V Sheet Metal Components Parts Diagram

  • Title

1

Scag 462240

Instrument Panel w/Decal

$74.99

$

Usually ships in 2-12 days

0

2

Scag 04001-06

Bolt, Hex Head 1/4-20 x .63

$0.99

$

In Stock, only 3 left!

0

3

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

4

Scag 491616

Belt Cover w/Decals
(Superseded to 462640)

Note: 61V

$137.99

$

Usually ships in 2-12 days

0

5

Scag 425504

Bracket, Oil Cooler

Note: 48V & 52V Only

$47.99

$

In Stock, only 1 left!

0

6

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

7

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

8

Scag 48099

Insulation, Battery Cover

$5.99

$

Usually ships in 2-12 days

0

9

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

10

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

11

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

12

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 17

0

13

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 425085

Bracket, Battery Support
(Superseded to 426190)

$93.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 425307

Bracket, Neutral Switch

$12.99

$

Usually ships in 2-12 days

0

17

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04024-03

Nut, Push On 5/16"

$1.49

$

In Stock, Qty 14

0

19

Scag 425148

Bracket, Knee Pad

$65.99

$

Usually ships in 2-12 days

0

20

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 483963

Knee Pad

$144.99

$

Usually ships in 2-12 days

0

22

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

24

Scag 48929

Spring

$53.99

$

Usually ships in 2-12 days

0

25

Scag 04009-09

Bolt, Shoulder 1/2 x 1"

$4.49

$

Usually ships in 2-12 days

0

26

Scag 483453-19

Bearing

$7.99

$

Usually ships in 2-12 days

0

27

Scag 462252

Footplate Assembly

Note: (Incl. # 26)

$300.99

$

Usually ships in 2-12 days

0

28

Scag 04009-15

Bolt, Shoulder 3/8 x 1/4"

$6.99

$

Usually ships in 2-12 days

0

29

Scag 425447

Footplate Extension

$68.99

$

Usually ships in 2-12 days

0

30

Scag 425501

Brake Shaft Support

$19.99

$

Usually ships in 2-12 days

0

31

Scag 452164

Fender Weldment

$99.99

$

Usually ships in 2-12 days

0

32

Scag 481714

Mudflap

$11.99

$

Usually ships in 2-12 days

0

33

Scag 425084

Bracket, Oil Filter Base

$28.99

$

Usually ships in 2-12 days

0

34

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

37

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

38

Scag 484041

Spring, Foot Platform

$24.99

$

Usually ships in 2-12 days

0

39

Scag 43814

Pin, Spring Mount

$21.99

$

Usually ships in 2-12 days

0

40

Scag 425534

Strap, Mudflap

$6.49

$

Usually ships in 2-12 days

0

41

Scag 425463

Guard, Foot

$88.99

$

Usually ships in 2-12 days

0

42

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

44

Scag 462335

Mainframe Assembly w/Decals

Note: (61)

$1443.99

$

Usually ships in 2-12 days

0

45

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

46

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

47

Scag 452165

Handle Weldment
(Superseded to 462544)

$568.99

$

Usually ships in 2-12 days

0

48

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 9

0

49

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+
