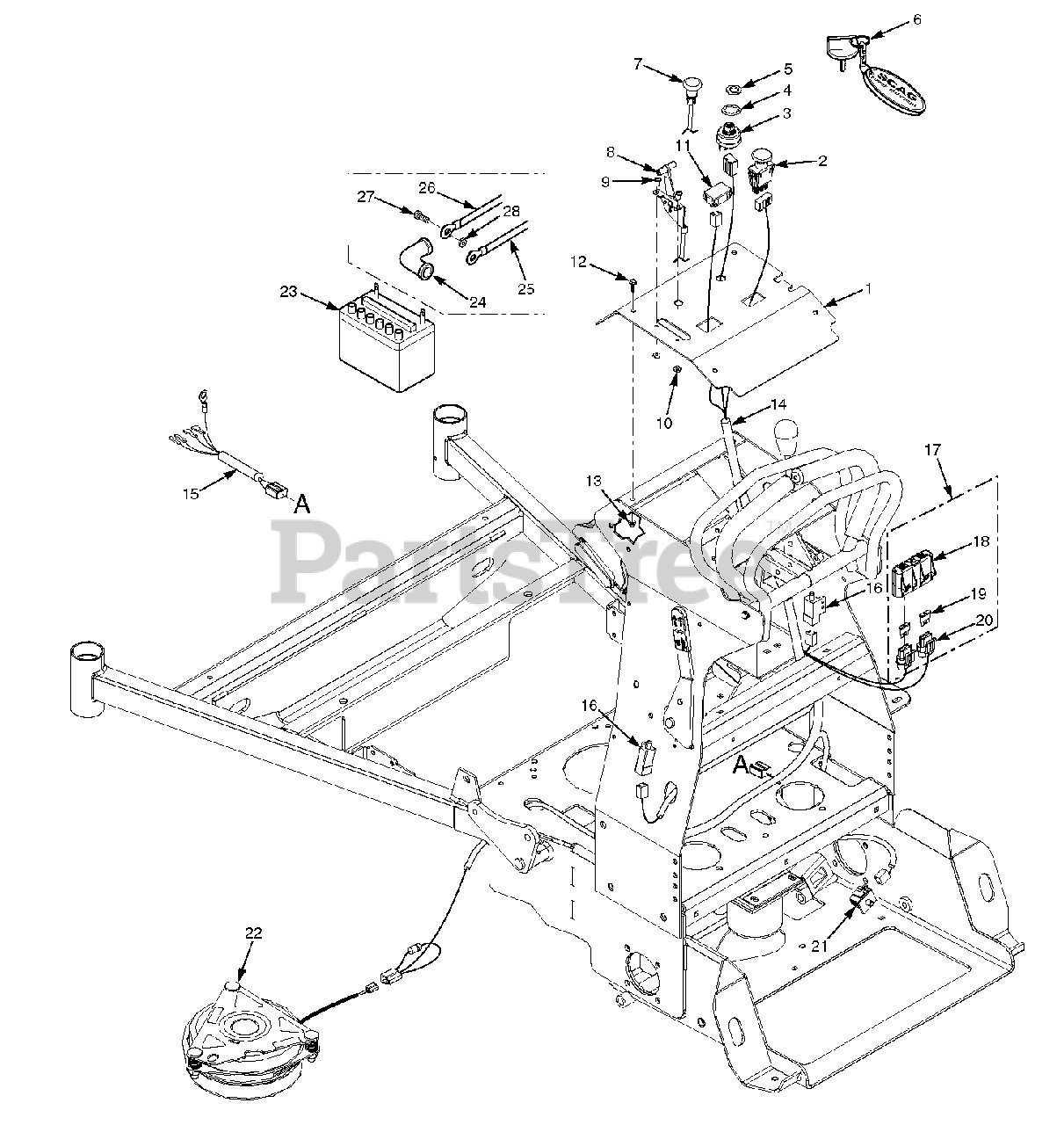

SVR61V-29FX - Scag V-Ride 61" Stand-On Mower, 29hp Kawasaki (SN: F2900001 - F2999999) Electrical System Parts Diagram

V-Ride 61" Stand-On Mower, 29hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Scag 462240

Instrument Panel w/Decal

$74.99

$

Usually ships in 2-12 days

0

2

Scag 483957

Switch, PTO - 10 Amp
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

3

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

4

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 6

0

5

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

6

Scag 462069

Key Chain w/ Keys

$8.49

$

In Stock, Qty 20+

0

Scag 483609

Key w/Shroud

$2.99

$

In Stock, Qty 9

0

7

Scag 483976

Choke Control, SVR

$22.99

$

In Stock, only 2 left!

0

8

Scag 483975

Throttle Control, SVR

$24.99

$

In Stock, only 3 left!

0

9

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

10

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 11

0

11

Scag 483537

Hourmeter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

12

Scag 04001-06

Bolt, Hex Head 1/4-20 x .63

$0.99

$

In Stock, only 3 left!

0

13

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

14

Scag 484157

Wire Harness, SVR
(Superseded to 484351)

$353.99

$

Usually ships in 2-12 days

0

15

Scag 482543

Wire Harness Adapter

Note: Kawasaki

$30.99

$

In Stock, only 1 left!

0

16

Scag 481637

Switch, Interlock

$9.99

$

In Stock, Qty 20+

0

17

Scag 483642

Double Fuse Assy.

Note: (Incl. #18, 19, 20)

$43.99

$

Usually ships in 2-12 days

0

18

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

19

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

20

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

Scag 482588

Clip

Note: (Not shown)

$1.99

$

Usually ships in 2-12 days

0

21

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

0

22

Scag 462339

Clutch w/Tag

$457.99

$

In Stock, only 1 left!

0

23

Battery

Note: (Not avail. through Scag)

$

$

Not available

24

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

25

Scag 48029-07

Cable, Battery Black 18"

$11.99

$

Usually ships in 2-12 days

0

26

Scag 48029-06

Cable, Battery Red 18"

$12.99

$

Usually ships in 2-12 days

0

27

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

28

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0
