SVR48V-691FX - Scag V-Ride 48" Stand-On Mower, Kawasaki 691FX (SN: G1100001 - G1199999) 48V & 52V Cutter Decks Parts Diagram

V-Ride 48" Stand-On Mower, Kawasaki 691FX

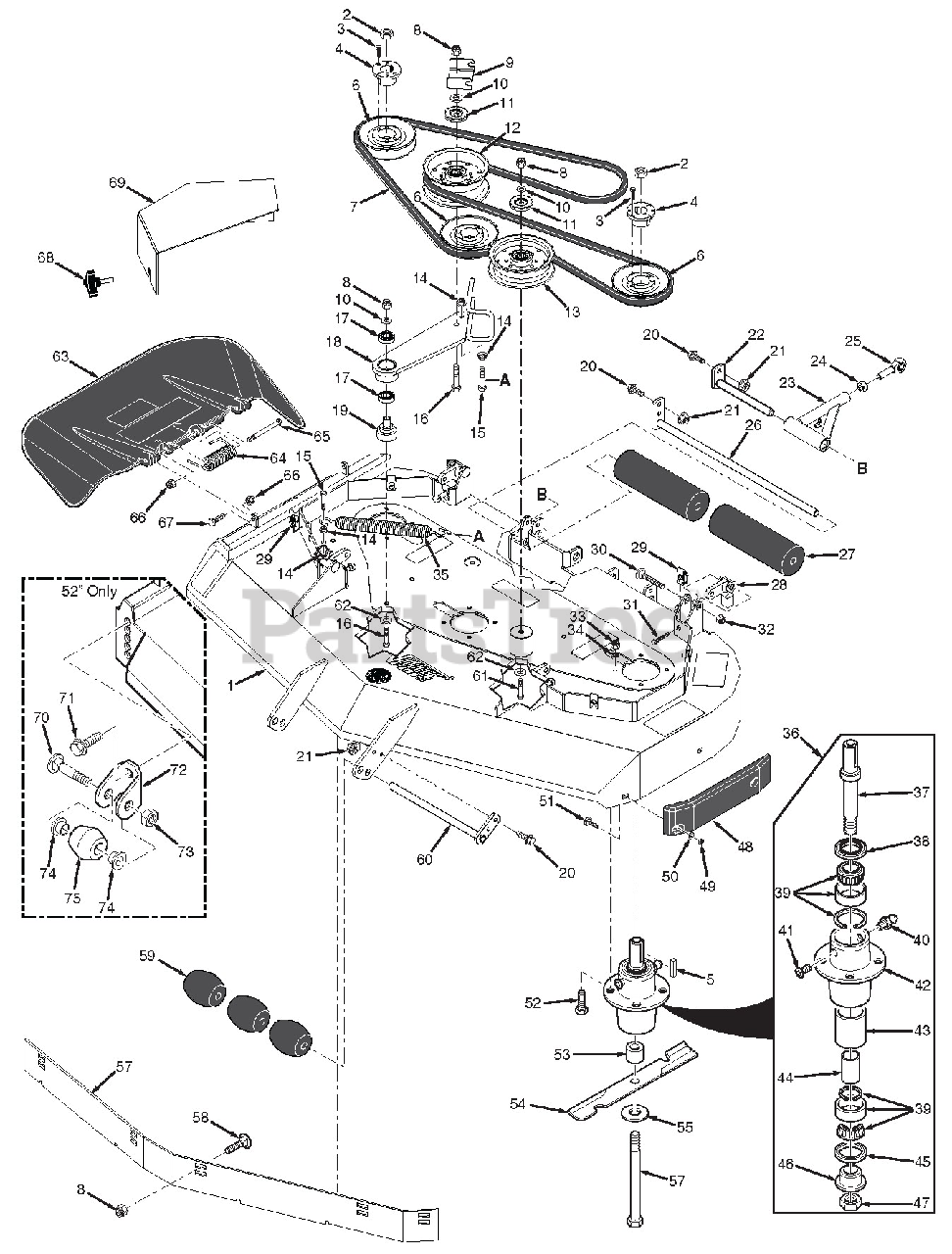

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 462237

Cutter Deck w/Decals (48V)

$1382.99

$

Usually ships in 2-12 days

0

1

Scag 462362

Cutter Deck w/Decals (52V)

$1426.99

$

Usually ships in 2-12 days

0

2

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

5

Scag 04063-08

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 20+

0

6

Scag 483282

Pulley, 5.13 OD (48V)

$36.99

$

Usually ships in 2-12 days

0

6

Scag 483284

Pulley, 5.73 OD (52V)

$37.99

$

In Stock, only 1 left!

0

7

Scag 483966

Belt, Cutter Deck (48V)

$86.99

$

In Stock, Qty 18

0

7

Scag 484100

Belt, Cutter Deck (52V)

$93.99

$

Usually ships in 2-12 days

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

10

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

11

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

12

Scag 483210

Pulley, 5" Idler

$55.99

$

In Stock, only 2 left!

0

13

Scag 483215

Pulley, 5" Idler

$60.99

$

In Stock, Qty 20+

0

14

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

17

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

18

Scag 462234

Idler Arm Assembly - 48V

Note: (Incl. # 17)

$86.99

$

Usually ships in 2-12 days

0

18

Scag 462235

Idler Arm Assembly - 52V

Note: (Incl. #17)

$99.99

$

Usually ships in 2-12 days

0

19

Scag 43681

Pivot, Idler

$23.99

$

In Stock, only 1 left!

0

20

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 451724

Shaft Weldment, Pusharm Mount

$35.99

$

In Stock, only 2 left!

0

23

Scag 461755

Pusharm Assembly, LH
(Superseded to 462712)

$128.99

$

In Stock, only 1 left!

0

23

Scag 461756

Pusharm Assembly, RH
(Superseded to 462713)

$140.99

$

Usually ships in 2-12 days

0

24

Scag 04020-08

Nut, 1/2-20 UNF

$0.99

$

Usually ships in 2-12 days

0

25

Scag 48542

Rod End, 1/2-20 RH

$40.99

$

In Stock, only 2 left!

0

26

Scag 452076

Shaft Weldment

$53.99

$

In Stock, only 1 left!

0

27

Scag 483997

Guide Roller

$30.99

$

In Stock, only 2 left!

0

28

Scag 483361

Lever, Deck Level

$21.99

$

In Stock, only 1 left!

0

29

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

30

Scag 04003-42

Bolt, Carriage 7/16-14

$2.49

$

In Stock, only 3 left!

0

31

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special

$1.49

$

In Stock, Qty 8

0

32

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

33

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

35

Scag 484020

Spring, Cutter Deck

$63.99

$

In Stock, only 1 left!

0

36

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

37

Scag 43589

Shaft, Spindle

$58.99

$

In Stock, only 1 left!

0

38

Scag 481024

Seal, Upper

$4.99

$

In Stock, Qty 20+

0

39

Scag 481022

Bearing Assembly

$59.99

$

In Stock, Qty 15

0

40

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

41

Scag 48677

Valve Grease Relief

$

$

Not available

42

Scag 43644

Housing, Spindle

$58.99

$

In Stock, only 2 left!

0

43

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

44

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

45

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

46

Scag 43297

Bushing, Lower

$9.99

$

In Stock, only 2 left!

0

47

Scag 481035

Nut, Special 1-1/16" - 18

$7.99

$

In Stock, only 3 left!

0

48

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

0

49

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

50

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

51

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

52

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

54

Scag 482877

Cutter Blade, 16-1/2" (48V)

$22.99

$

In Stock, Qty 20+

0

54

Scag 482878

Cutter Blade, 18" (52V)

$23.99

$

In Stock, Qty 20+

0

55

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

56

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

57

Scag 424839

Baffle, Flange 48V

$84.99

$

In Stock, only 1 left!

0

57

Scag 424840

Baffle, Flange 52V

$101.99

$

Usually ships in 2-12 days

0

58

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

59

Scag 482295

Wheel Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

60

Scag 45944

Shaft Weldment

$21.99

$

In Stock, Qty 20+

0

61

Scag 04001-47

Bolt, Carriage 3/8-16 x 5"

$3.49

$

Usually ships in 2-12 days

0

62

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

In Stock, Qty 8

0

63

Scag 461844

Discharge Chute Assembly - 48V

$66.99

$

In Stock, only 2 left!

0

63

Scag 461845

Discharge Chute Assembly - 52V

$66.99

$

In Stock, only 1 left!

0

64

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

0

65

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

66

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

67

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

68

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

69

Scag 425095

Belt Cover, RH (48V)

$48.99

$

Usually ships in 2-12 days

0

69

Scag 425364

Belt Cover, RH (52V)

$93.99

$

Usually ships in 2-12 days

0

69

Scag 425094

Belt Cover, LH (48V)

$61.99

$

Usually ships in 2-12 days

0

69

Scag 425363

Belt Cover, LH (52V)

$48.99

$

Usually ships in 2-12 days

0

70

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

71

Scag 04017-27

Bolt, Hex Serr. Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

72

Scag 422478

Anti-Scalp Wheel Bracket

$28.99

$

In Stock, Qty 20+

0

73

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

74

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

75

Scag 481632

Anti-Scalp Wheel

$21.99

$

In Stock, Qty 20+
