SVR36A-541FS - Scag V-Ride 36" Stand-On Mower, Kawasaki 541FS (SN: J3900001 - J3999999) SVR Sheet Metal Components Parts Diagram

V-Ride 36" Stand-On Mower, Kawasaki 541FS

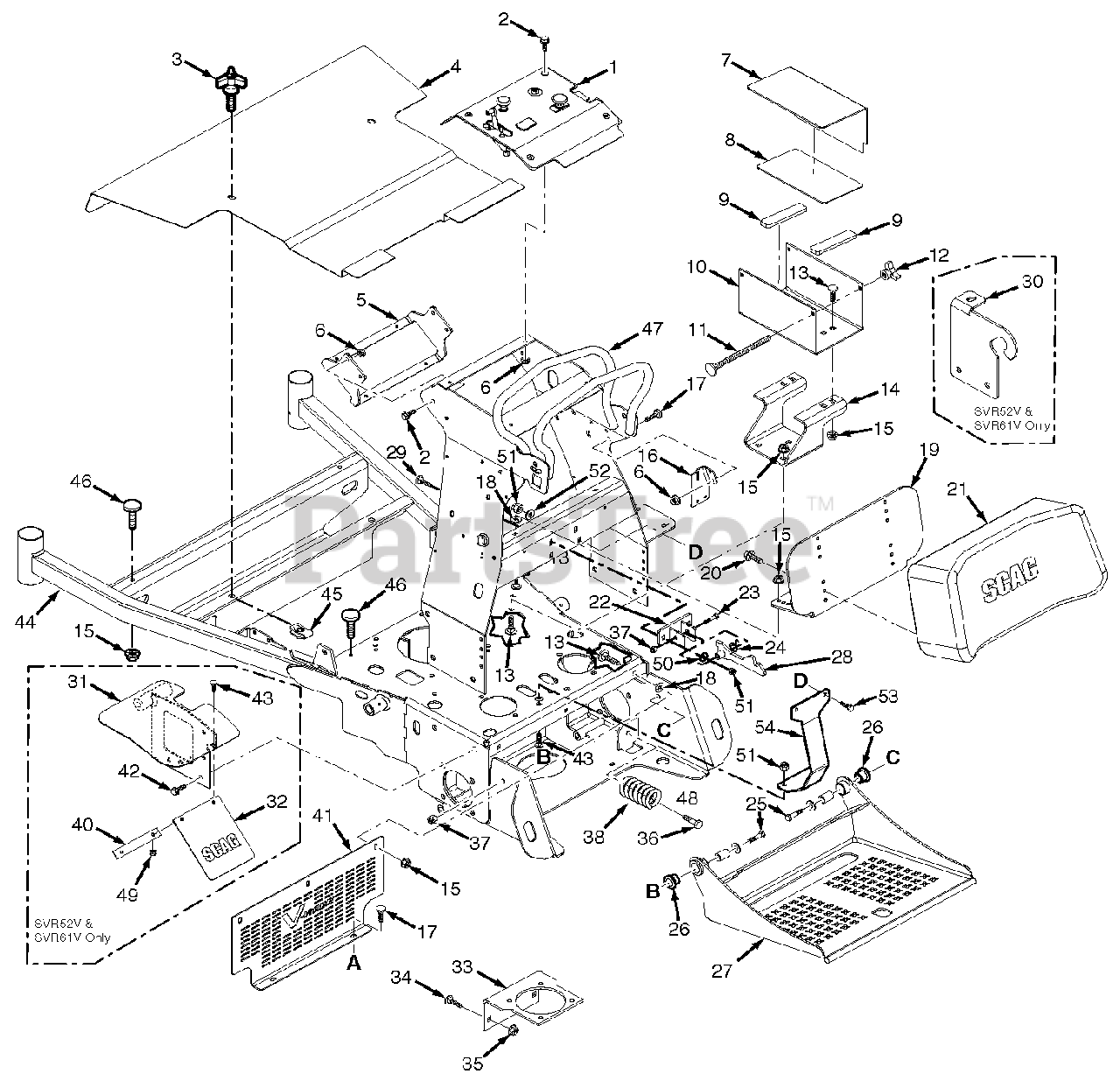

SVR Sheet Metal Components Parts Diagram

  • Title

1

Scag 462240

Instrument Panel w/Decal

$74.99

$

Usually ships in 2-12 days

0

2

Scag 04001-06

Bolt, Hex Head 1/4-20 x .63

$0.99

$

In Stock, only 3 left!

0

3

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

4

Scag 491536

Belt Cover w/Decals - 36

$91.99

$

In Stock, only 1 left!

0

4

Scag 491537

Belt Cover w/ Decals - 48 / 52
(Superseded to 462455)

$100.99

$

Usually ships in 2-12 days

0

4

Scag 491616

Belt Cover w/Decals - 61
(Superseded to 462640)

$137.99

$

Usually ships in 2-12 days

0

5

Scag 425229

Bracket, Oil Cooler - 48 / 52

$36.99

$

Usually ships in 2-12 days

0

5

Scag 425504

Bracket, Oil Cooler - 61

$47.99

$

In Stock, only 1 left!

0

6

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

7

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

8

Scag 48099

Insulation, Battery Cover

$5.99

$

Usually ships in 2-12 days

0

9

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

10

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

11

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

12

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 17

0

13

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 425085

Bracket, Battery Support
(Superseded to 426190)

$93.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 425307

Bracket, Neutral Switch

$12.99

$

Usually ships in 2-12 days

0

17

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04024-03

Nut, Push On 5/16"

$1.49

$

In Stock, Qty 14

0

19

Scag 425148

Bracket, Knee Pad

$65.99

$

Usually ships in 2-12 days

0

20

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 483963

Knee Pad

$144.99

$

Usually ships in 2-12 days

0

22

Scag 491937

Latch Assembly

Note: (incl. #22, 23, 24, 28, 37)

$69.99

$

Usually ships in 2-12 days

0

22

Scag 452318

Mounting Bracket Weldment, Latch

$49.99

$

Usually ships in 2-12 days

0

23

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 484492

Spring, Latch

$5.99

$

Usually ships in 2-12 days

0

25

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 20+

0

26

Scag 483453-04

Bearing

$3.99

$

In Stock, Qty 20+

0

27

Scag 462428

Footplate Assembly - 36

Note: (Incl. # 26)

$301.99

$

Usually ships in 2-12 days

0

27

Scag 462429

Footplate Assembly - 48 / 52

Note: (Incl. # 26)

$296.99

$

Usually ships in 2-12 days

0

27

Scag 462430

Footplate Assembly - 61

Note: (Incl. # 26)

$351.99

$

Usually ships in 2-12 days

0

28

Scag 452317

Latch Weldment

$27.99

$

Usually ships in 2-12 days

0

29

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

30

Scag 425501

Brake Shaft Support (61 only)

$19.99

$

Usually ships in 2-12 days

0

31

Scag 452164

Fender Weldment (61 only)

$99.99

$

Usually ships in 2-12 days

0

32

Scag 481714

Mudflap (61 only)

$11.99

$

Usually ships in 2-12 days

0

33

Scag 425084

Bracket, Oil Filter Base

$28.99

$

Usually ships in 2-12 days

0

34

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

38

Scag 484479

Spring, Foot Platform

$41.99

$

Usually ships in 2-12 days

0

39

Scag 43814

Pin, Spring Mount

$21.99

$

Usually ships in 2-12 days

0

40

Scag 425534

Strap, Mudflap (61 only)

$6.49

$

Usually ships in 2-12 days

0

41

Scag 425806

Guard, Foot - 36

$78.99

$

Usually ships in 2-12 days

0

41

Scag 425769

Guard, Foot - 48 / 52

$85.99

$

Usually ships in 2-12 days

0

41

Scag 425808

Guard, Foot - 61

$93.99

$

Usually ships in 2-12 days

0

42

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

44

Scag 462539

Mainframe Assembly w/Decals - 36

$

$

Not available

44

Scag 462540

Mainframe Assembly w/Decals - 48

$

$

Not available

44

Scag 462541

Mainframe Assembly w/Decals - 52

$

$

Not available

44

Scag 462542

Mainframe Assembly w/Decals - 61

$1445.99

$

Usually ships in 2-12 days

0

45

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

46

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

47

Scag 452371

Handle Weldment - 36

$644.99

$

Usually ships in 2-12 days

0

47

Scag 452372

Handle Weldment - 48

$402.99

$

Usually ships in 2-12 days

0

47

Scag 452373

Handle Weldment - 52

$404.99

$

In Stock, only 1 left!

0

47

Scag 452374

Handle Weldment - 61

$513.99

$

In Stock, only 1 left!

0

48

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4"

Note: Grade 8

$0.99

$

In Stock, Qty 9

0

49

Scag 04021-04

Nut, Center Lock 5/16-18 (61 only)

$0.99

$

In Stock, Qty 20+

0

50

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

51

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

52

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

54

Scag 425945

Brace, Handle

$27.99

$

Usually ships in 2-12 days

0
