SVR36A-541FS - Scag V-Ride 36" Stand-On Mower, Kawasaki 541FS (SN: J3900001 - J3999999) Electrical System Recoil Start Models Parts Diagram

V-Ride 36" Stand-On Mower, Kawasaki 541FS

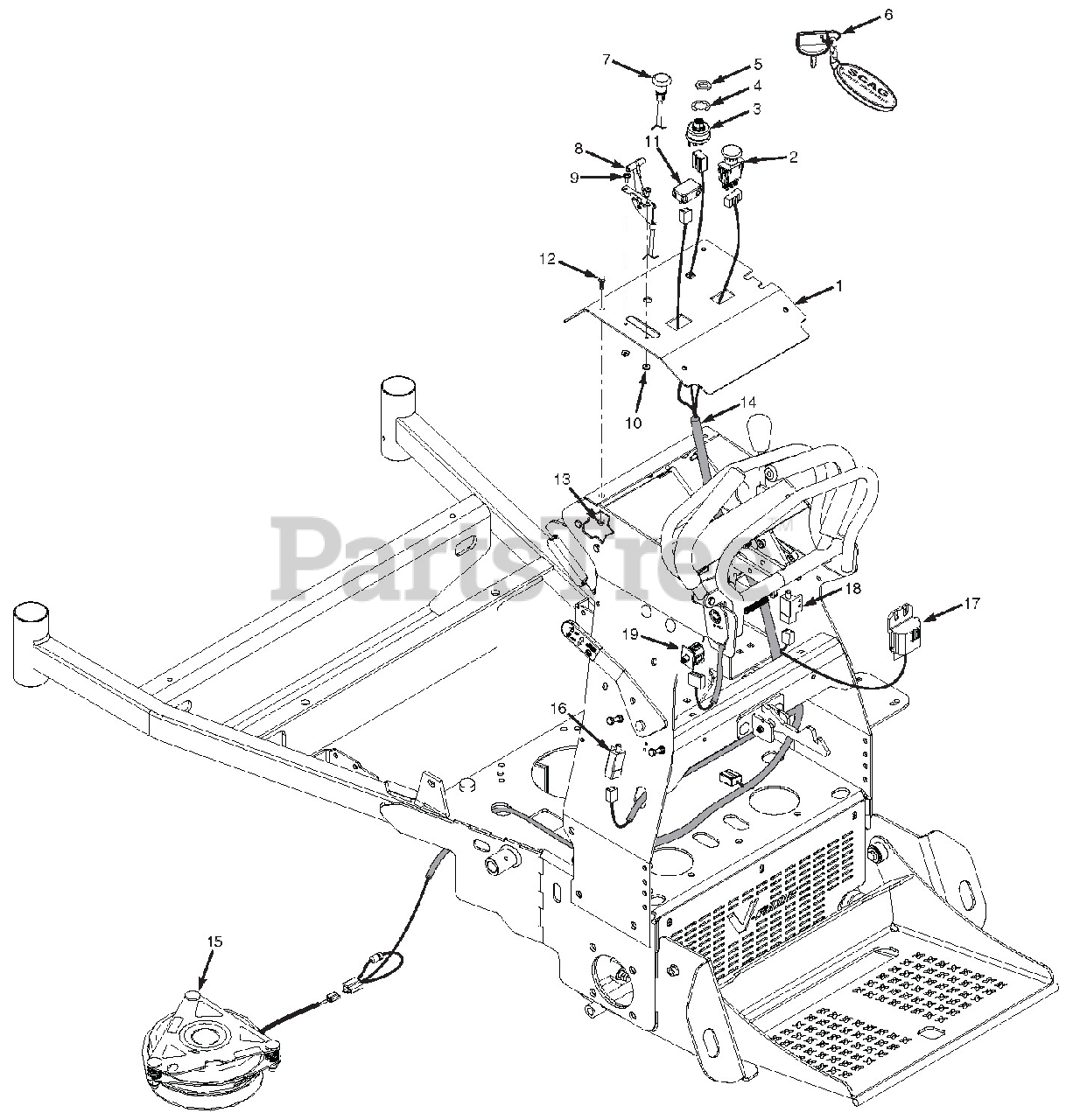

Electrical System Recoil Start Models Parts Diagram

  • Title

1

Scag 462240

Instrument Panel w/Decal

$74.99

$

Usually ships in 2-12 days

0

2

Scag 483957

Switch, PTO - 10 Amp
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

3

Scag 48609

Key Switch

$13.99

$

In Stock, only 1 left!

0

4

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 6

0

5

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

6

Scag 462069

Key Chain w/ Keys

$8.49

$

In Stock, Qty 20+

0

6

Scag 483609

Key w/Shroud

$2.99

$

In Stock, Qty 9

0

7

Scag 483976

Choke Control, SVR

$22.99

$

In Stock, only 2 left!

0

8

Scag 483975

Throttle Control, SVR

$24.99

$

In Stock, only 3 left!

0

9

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

10

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 11

0

11

Scag 484566

Hourmeter

$41.99

$

Usually ships in 2-12 days

0

12

Scag 04001-06

Bolt, Hex Head 1/4-20 x .63

$0.99

$

In Stock, only 3 left!

0

13

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

14

Scag 484725

Wire Harness, SVR Recoil Start

$245.99

$

Usually ships in 2-12 days

0

15

Scag 462166

Clutch w/Tag (36A, 48V, 52V)

$388.99

$

In Stock, only 1 left!

0

16

Scag 481546

Switch, Interlock

$12.99

$

Usually ships in 2-12 days

0

17

Scag 484369

Module, Safe Start

$34.99

$

Usually ships in 2-12 days

0

18

Scag 481545

Switch, Interlock

$16.99

$

In Stock, only 2 left!

0

19

Scag 484497

Switch, Double Pole - Plunger

$16.99

$

In Stock, only 1 left!

0
