SVR36A-541FS - Scag V-Ride 36" Stand-On Mower, Kawasaki 541FS (SN: J3900001 - J3999999) 36A Cutter Deck Parts Diagram

V-Ride 36" Stand-On Mower, Kawasaki 541FS

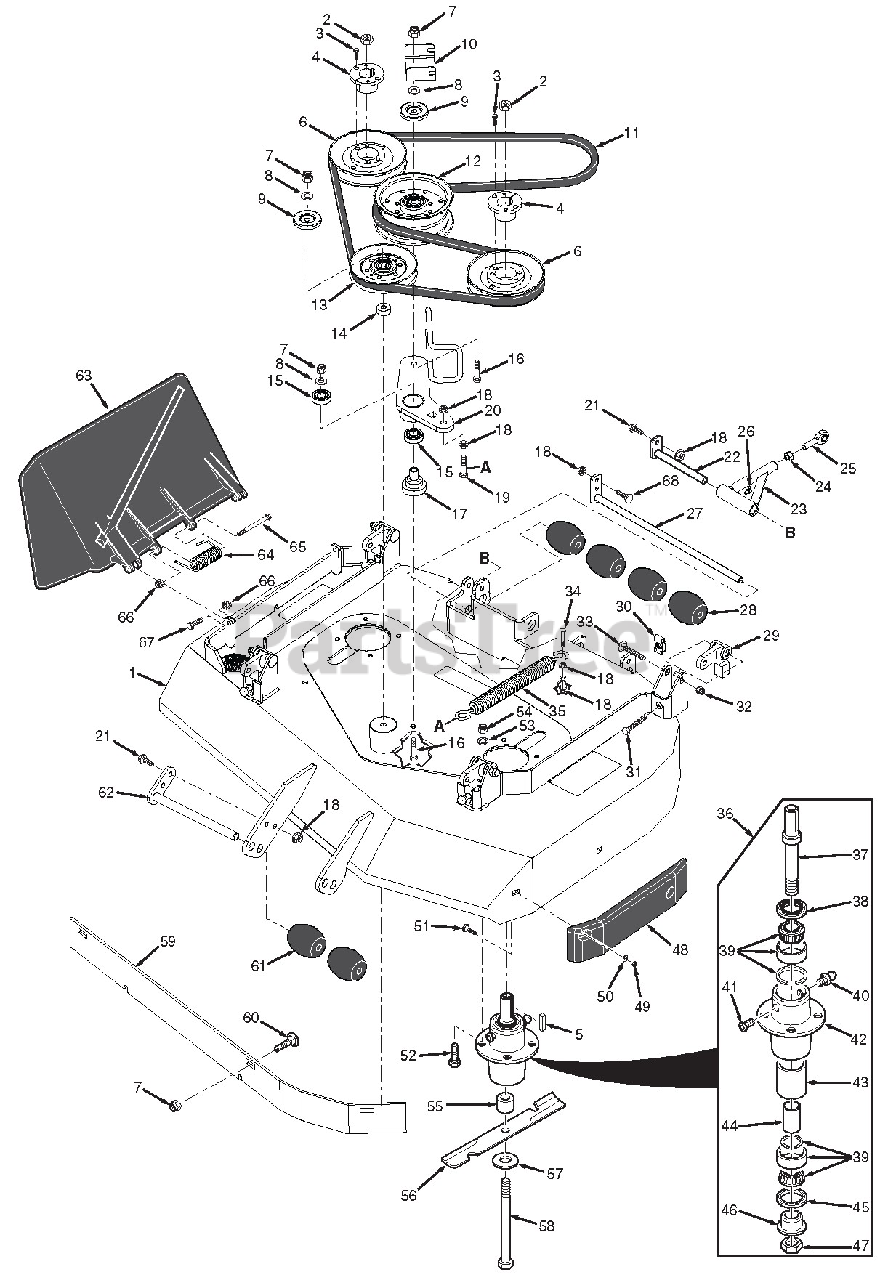

36A Cutter Deck Parts Diagram

  • Title

1

Scag 462361

Cutter Deck w/Decals - 36A

$1248.99

$

Usually ships in 2-12 days

0

2

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub, 1.125" Bore

$31.99

$

In Stock, Qty 20+

0

5

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

6

Scag 483284

Pulley, 5.73 OD Tapered Bore

$37.99

$

In Stock, only 1 left!

0

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

9

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

0

10

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

11

Scag 483969

Belt, Cutter Deck

$53.99

$

In Stock, Qty 6

0

12

Scag 483210

Pulley, 5" Idler

$56.99

$

In Stock, Qty 6

0

13

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 14

0

14

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

15

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

16

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

17

Scag 43816

Pivot, Idler

$26.99

$

Usually ships in 2-12 days

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-136

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

20

Scag 462233

Idler Arm Assy.

$80.99

$

Usually ships in 2-12 days

0

21

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

22

Scag 451724

Shaft Weldment, Pusharm Mount

$36.99

$

In Stock, only 4 left!

0

23

Scag 461755

Pusharm Assy., LH
(Superseded to 462712)

$131.99

$

In Stock, only 2 left!

0

23

Scag 461756

Pusharm Assy., RH
(Superseded to 462713)

$143.99

$

Usually ships in 2-12 days

0

24

Scag 04020-08

Nut, 1/2-20 UNF

$0.99

$

In Stock, only 2 left!

0

25

Scag 48542

Rod End, 1/2-20 RH

$41.99

$

In Stock, only 3 left!

0

26

Scag 48114-08

Grease Fitting

$4.49

$

Usually ships in 2-12 days

0

27

Scag 452076

Shaft Weldment

$54.99

$

In Stock, only 1 left!

0

28

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

29

Scag 483361

Lever, Deck Level

$22.99

$

In Stock, only 1 left!

0

30

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

31

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special

$1.49

$

In Stock, Qty 8

0

32

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

33

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

34

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

0

35

Scag 484020

Spring

$65.99

$

In Stock, only 1 left!

0

36

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

37

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, only 1 left!

0

38

Scag 481024

Seal, Upper

$4.99

$

In Stock, Qty 20+

0

39

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

40

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

41

Scag 48677

Valve, Grease Relief

$9.49

$

Usually ships in 2-12 days

0

42

Scag 43644

Housing, Spindle

$60.99

$

In Stock, only 2 left!

0

43

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

44

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

45

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

46

Scag 43297

Bushing, Lower

$9.99

$

In Stock, only 2 left!

0

47

Scag 481035

Nut, Special 1-1/16" - 18

$7.99

$

In Stock, only 3 left!

0

48

Scag 483174

Pad, Deck Wear

$34.99

$

In Stock, only 2 left!

0

49

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

50

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

51

Scag 04003-12

Bolt, Carriage 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

52

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

54

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

55

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

56

Scag 482878

Cutter Blade, 18"

$24.99

$

In Stock, Qty 20+

0

57

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

58

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

59

Scag 423783

Baffle, Flange 36A

$77.99

$

Usually ships in 2-12 days

0

60

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

61

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

62

Scag 451926

Shaft Weldment

$26.99

$

In Stock, only 1 left!

0

63

Scag 461356

Discharge Chute Assembly
(Superseded to 461295)

$70.99

$

In Stock, Qty 8

0

64

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

65

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

66

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

67

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

68

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0
