SVP4200 (9883-0) - Generac 4,200 Watt Portable Generator Generator Parts Diagram

4,200 Watt Portable Generator

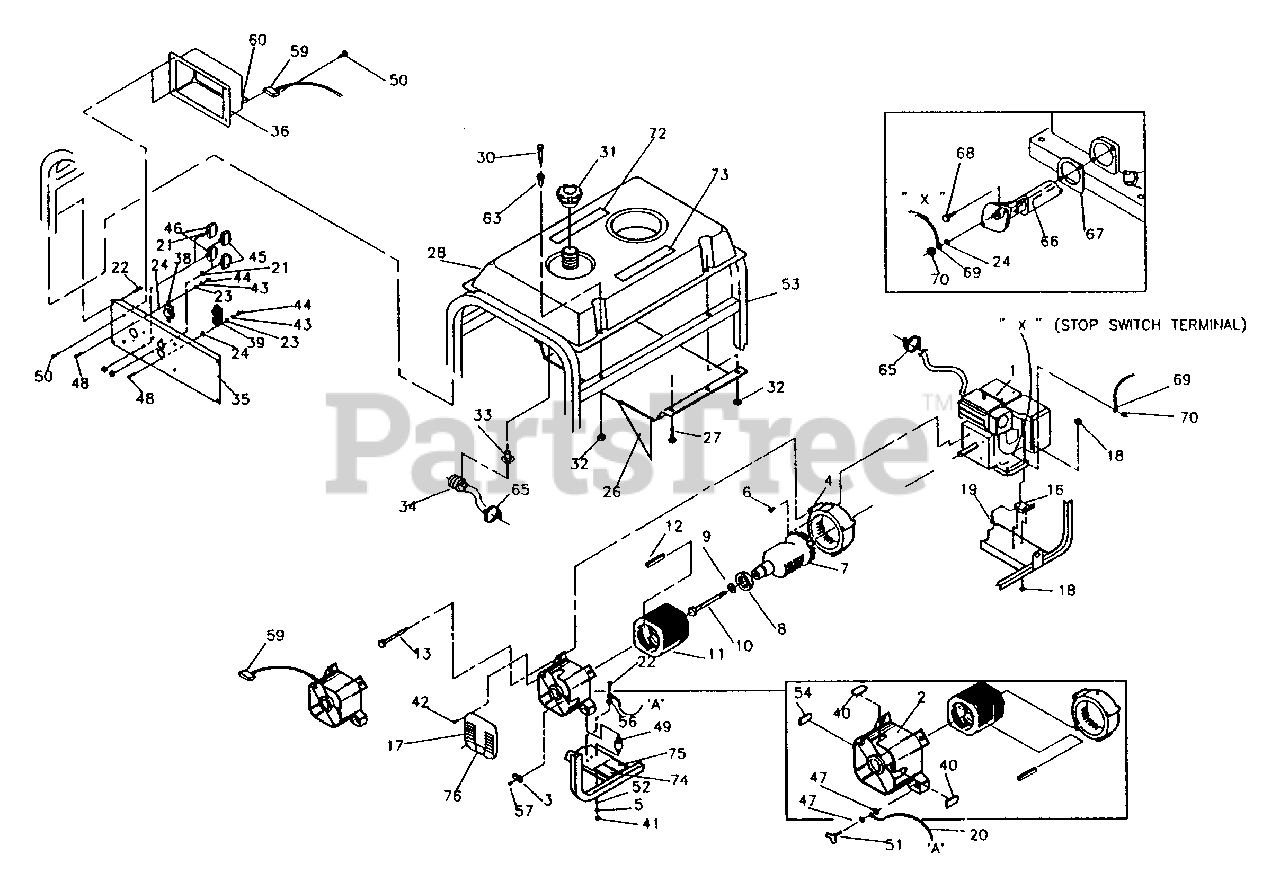

Generator Parts Diagram

  • Title

1

Briggs & Stratton 91009

Briggs & Stratton Engine

$

$

Currently unavailable

2

Briggs & Stratton 66825C

Rear Bearing Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 91825

Brush & Bridge Rectifier Ass'y.

$

$

Not available

4

Briggs & Stratton 66365G

Adaptor Housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 86307

5/16-24 x 3/4 SEMS Screw
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 91836G

Rotor Assembly

$

$

Currently unavailable

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special Washer

$

$

Currently unavailable

10

Briggs & Stratton 36180

Rotor Bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 96381G

Stator Assembly
(Superseded to 96381GGS)

$761.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 81917

M4 x 10 Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308

Stator Bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

45 deg. Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 76222

M8-1.25 x 40MM Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

14353621

Ground Wire

$

$

Not available

21

Briggs & Stratton 82881

7/16" Shakeproof Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86292

#10 Self Drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 78951A

Heat Shield

$

$

Currently unavailable

27

Briggs & Stratton 56892

10-24 x 3/8 Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

5 Gal. Gas Tank

$

$

Currently unavailable

30

Briggs & Stratton 78831B

M6-1.0 x 60 SEMS Screw
(Superseded to 78831BGS)

$

$

Not available

31

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 5

0

32

Briggs & Stratton 77395

M6 Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78299

Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 96367

Control Panel

$

$

Currently unavailable

36

Briggs & Stratton 81919

Control Panel Back
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240 Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 63025

120V 15A Outlet
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 84242

R.B.C. Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 25244

5/16-1B Hex nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5-0.80 x 10 Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

#8 Lock Washer

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 75207D

15A Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 75207

20A Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 14

0

47

Briggs & Stratton 26850

1/4" Shakeproof

$

$

Not available

48

Briggs & Stratton 75475

M4-0.7 x 10 Screw

$

$

Not available

49

Briggs & Stratton 82857

Rubber Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 82308

Self Tapping Screw
(Superseded to 82308GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 86494

M6-1.0 x 16 Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

53

Briggs & Stratton 91020

Cradle
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 22769

#10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66849

M5-0.8 x 16 Taptite
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 22695

6-Pin Male Connector
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22694

6-Pin Connector
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 83465

Mount. Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 48031C

1/4" Hose Clamp

$

$

Not available

66

Briggs & Stratton 88977

Low Oil Shutdown Switch

$

$

Currently unavailable

67

Briggs & Stratton 91841

LOS Gasket

$

$

Not available

68

Briggs & Stratton 24679

#10-32 x 3/4" Screw
(Superseded to 24679GS)

$3.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 91842A

Low oil shutdown Wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22471

#8-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 94479

Decal - Danger
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 94480

Decal - Operation
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

74

Briggs & Stratton 74728

Decal - Ground (English)
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 76247

Decal - Ground (French)
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 25717

Nameplate CSA

$

$

Currently unavailable
