SV740-0040 - Kohler Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW Fuel System Parts Diagram

Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW

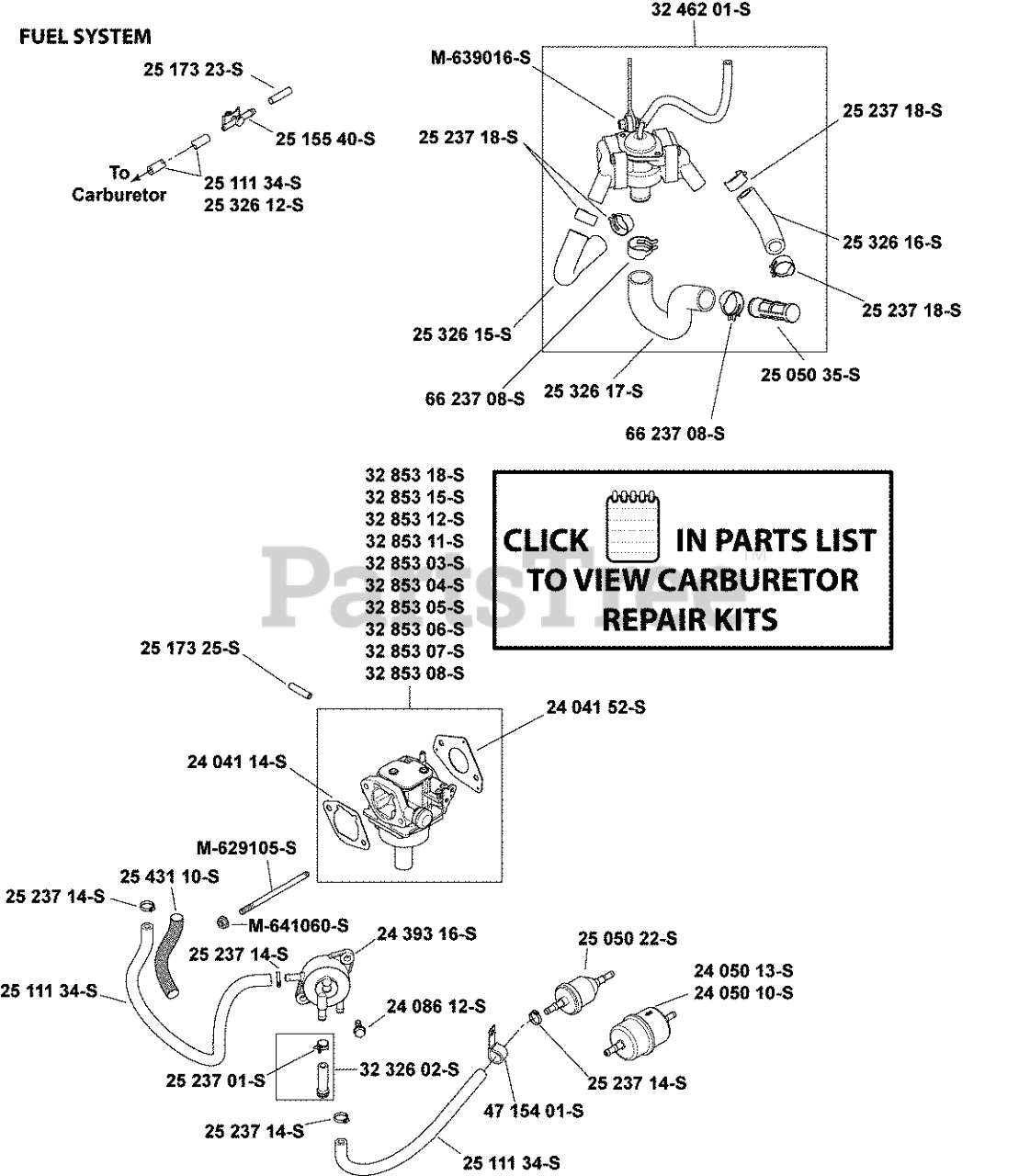

Fuel System Parts Diagram

  • Title

3285312-S

Kohler 32 853 12-S

KIT,CARB (KEIHIN) 22mm

Note: (includes 24 041 52-S, 24 041 14-S)

$359.99

$

Usually ships in 2-5 days

0

2404152-S

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 7

0

2404114-S

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

M-629105-S

Kohler M-629105-S

STUD, M6X1.0X106 - (#2507225S)
(Superseded to 25 072 25-S)

$14.99

$

In Stock, only 2 left!

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2405013-S

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2523714-S

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

4715401-S

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

2408612-S

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

2439316-S

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

2408605-S

Kohler 24 086 05-S

SCREW, THROTTLE STOP

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0
