SV740-0040 - Kohler Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW Blower Housing Group 6-32-1 Parts Diagram

Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW

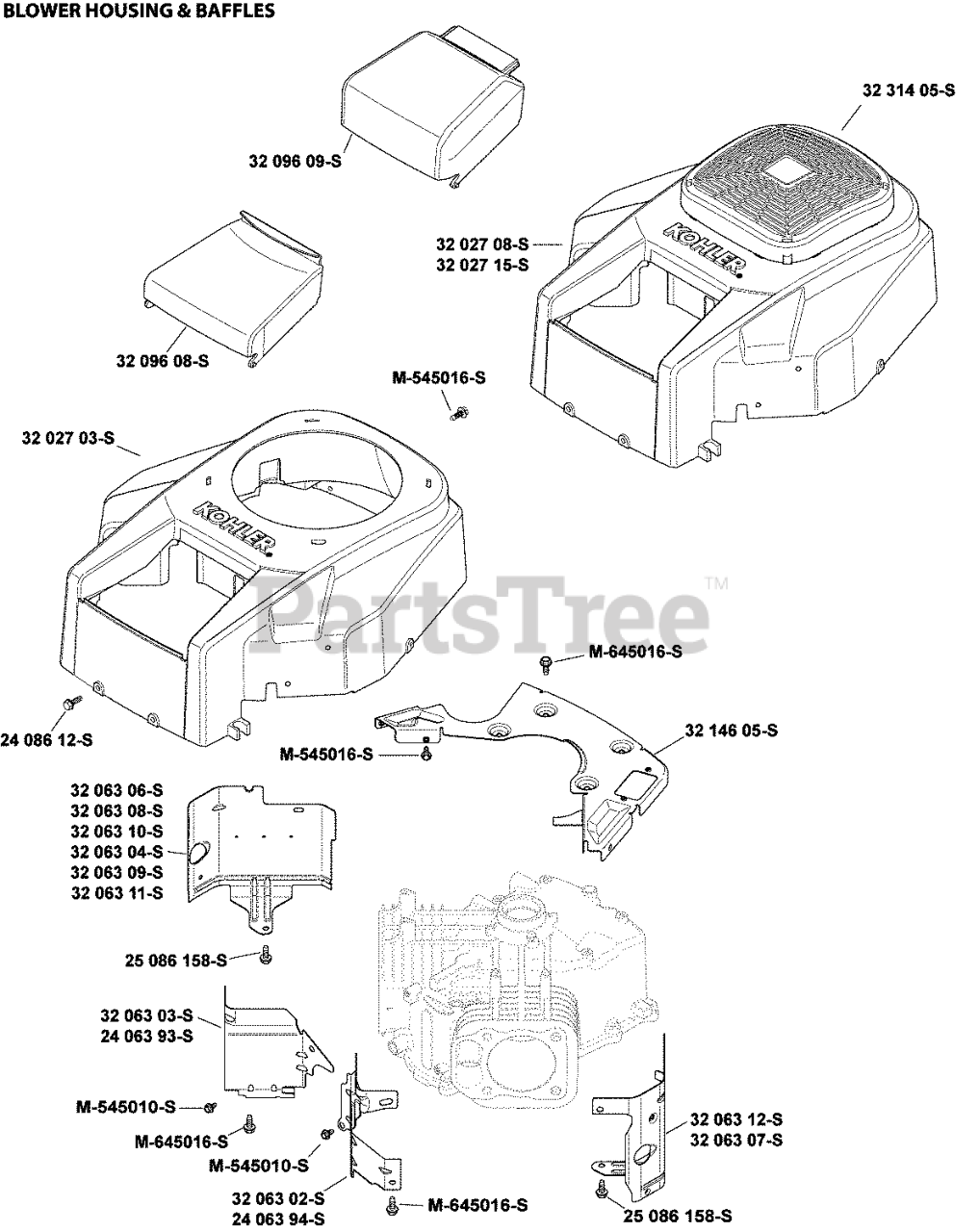

Blower Housing Group 6-32-1 Parts Diagram

  • Title

3202703-S

Kohler 32 027 03-S

KIT, HOUSING BLOWER-(#DSC)

$

$

Not available

3209608-S

Kohler 32 096 08-S

COVER, AIR CLEANER

$7.49

$

In Stock, Qty 8

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

3214605-S

Kohler 32 146 05-S

KIT, BACKING PLATE - DISCONTINUED

$

$

Not available

3206312-S

Kohler 32 063 12-S

BAFFLE, CYL BARREL - #2 SIDE

$19.99

$

Usually ships in 2-5 days

0

2406394-S

Kohler 24 063 94-S

BAFFLE, VALLEY #2 CYLINDER

$9.49

$

Usually ships in 2-5 days

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

2406393-S

Kohler 24 063 93-S

BAFFLE, VALLEY #1 CYLINDER USE 24 063 114-S
(Superseded to 24 063 114-S)

$6.49

$

In Stock, only 1 left!

0

3206310-S

Kohler 32 063 10-S

BAFFLE, CYL BARREL - #1 SIDE

$15.99

$

Usually ships in 2-5 days

0

2408612-S

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
