SV740-0010 - Kohler Courage Twin Engine, Made for Cub Cadet, 27hp, 20.1kW Engine Controls 9-32-9 Parts Diagram

Courage Twin Engine, Made for Cub Cadet, 27hp, 20.1kW

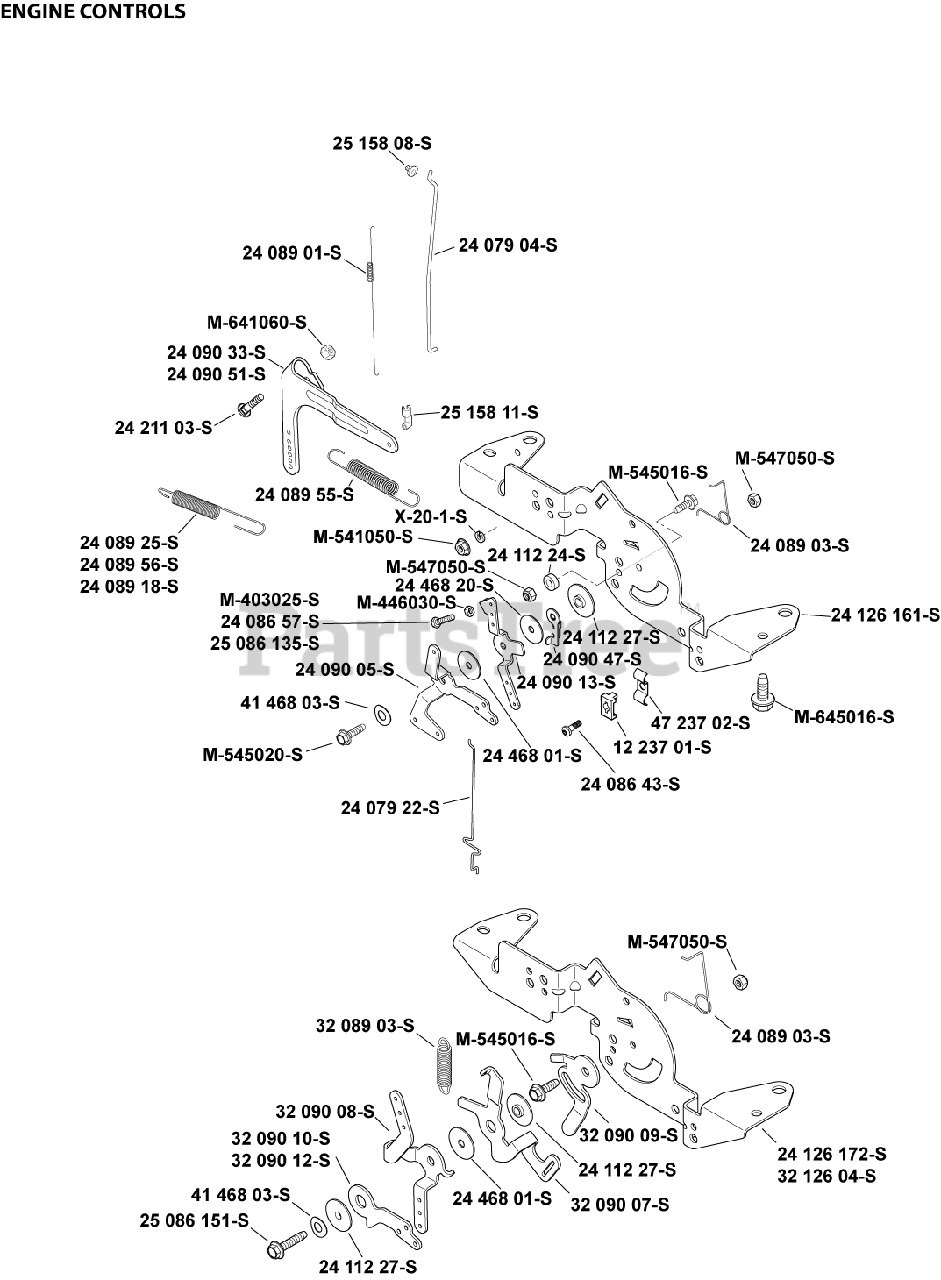

Engine Controls 9-32-9 Parts Diagram

  • Title

2421103-S

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

2409051-S

Kohler 24 090 51-S

LEVER, GOVERNOR-USE 24 090 57-S
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2408901-S

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

2515808-S

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

2407904-S

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 6

0

2515811-S

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

M-547050-S

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

2408903-S

Kohler 24 089 03-S

SPRING, CHOKE RETURN

$2.99

$

In Stock, Qty 12

0

3212604-S

Kohler 32 126 04-S

BRACKET, CONTROL USE 32 126 18-s
(Superseded to 32 126 18-S)

$11.99

$

In Stock, only 2 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

4723702-S

Kohler 47 237 02-S

CLAMP, DUAL CONDUIT

$10.99

$

Usually ships in 2-5 days

0

2408643-S

Kohler 24 086 43-S

SCREW, LBD THD FRM M5x0.8x16 - USE 25 086 405-S
(Superseded to 25 086 405-S)

$2.49

$

In Stock, only 2 left!

0

2407922-S

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

2411227-S

Kohler 24 112 27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, only 2 left!

0

2409047-S

Kohler 24 090 47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, Qty 11

0

2409013-S

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

2446801-S

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

M-545020-S

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

4146803-S

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

2409005-S

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

M-403025-S

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

M-446030-S

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

2446820-S

Kohler 24 468 20-S

WASHER, FLAT 5 MM

$2.49

$

In Stock, only 1 left!

0

2408955-S

Kohler 24 089 55-S

SPRING, GOVERNED IDLE

$2.49

$

In Stock, Qty 6

0

2408918-S

Kohler 24 089 18-S

SPRING, GOVERNOR (PURPLE)

$7.49

$

In Stock, Qty 10

0
