SV720-0013 - Kohler Courage Twin Engine, Made for Troy-Bilt, 23hp, 17.2kW Blower Housing & Baffles 6-32-3 Parts Diagram

Courage Twin Engine, Made for Troy-Bilt, 23hp, 17.2kW

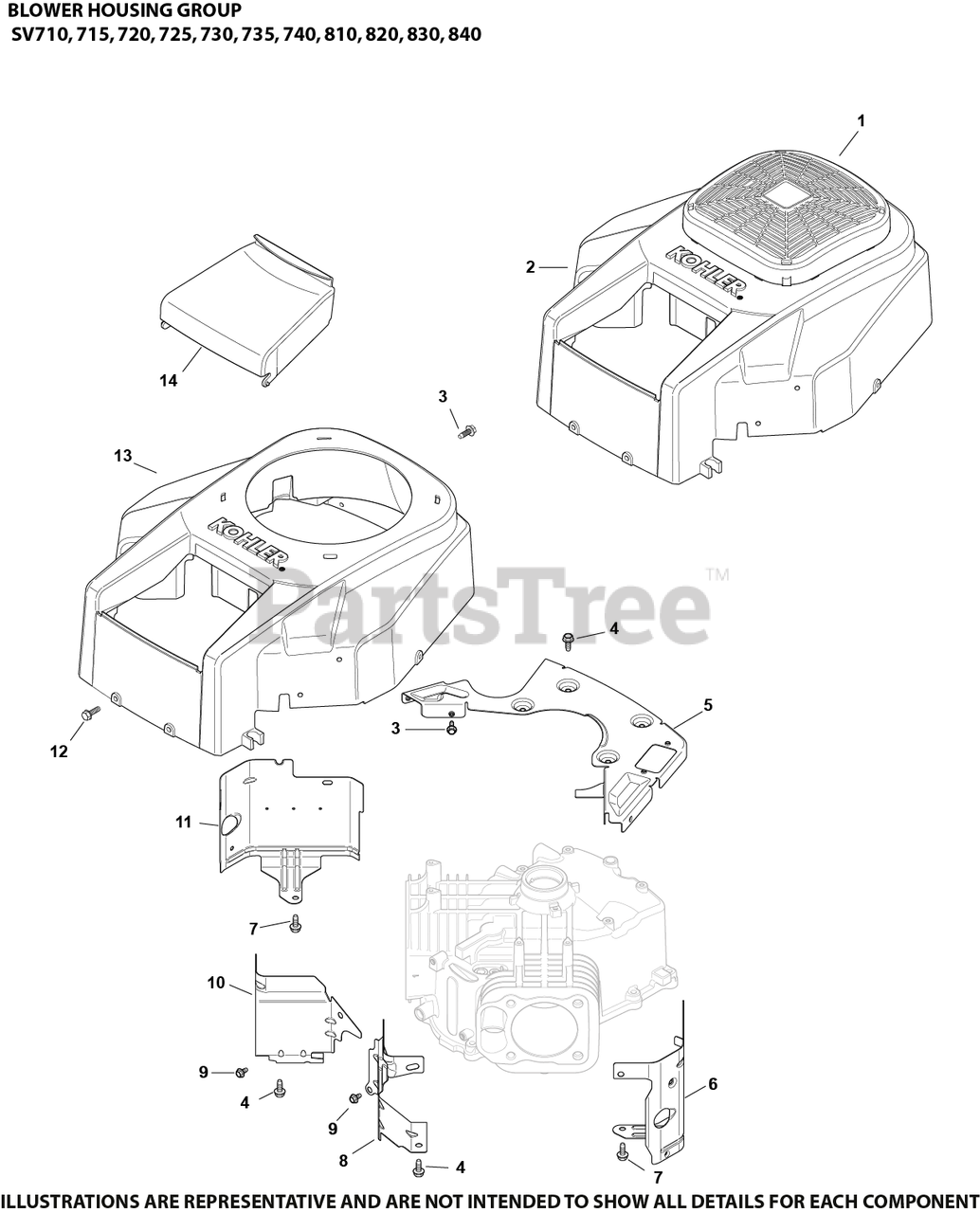

Blower Housing & Baffles 6-32-3 Parts Diagram

  • Title

1

Kohler 32 314 05-S

GUARD, FIXED

$

$

Not available

2

Kohler 32 027 08-S

KIT, BLWER HOUSING-FIXED GUARD - DISCONTINUED

$

$

Not available

3

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

5

Kohler 32 146 05-S

KIT, BACKING PLATE - DISCONTINUED

$

$

Not available

6

Kohler 32 063 12-S

BAFFLE, CYL BARREL - #2 SIDE

$19.99

$

Usually ships in 2-5 days

0

7

Kohler 25 086 406-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 9

0

8

Kohler 24 063 94-S

BAFFLE, VALLEY #2 CYLINDER

$9.49

$

Usually ships in 2-5 days

0

9

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

10

Kohler 24 063 93-S

BAFFLE, VALLEY #1 CYLINDER
(Superseded to 24 063 114-S)

$6.49

$

In Stock, only 1 left!

0

11

Kohler 32 063 10-S

BAFFLE, CYL BARREL - #1 SIDE

$15.99

$

Usually ships in 2-5 days

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

14

Kohler 32 096 08-S

COVER, AIR CLEANER

$7.49

$

In Stock, Qty 8

0

3211311-S

Kohler 32 113 11-S

DECAL, FIXED GUARD

Note: NOT ILLUSTRATED

$5.99

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
