SV710-3002 - Kohler Courage Twin Engine, Basic Version, 20hp, 14.9kW Lubrication Group 3-32- 22 Parts Diagram

Courage Twin Engine, Basic Version, 20hp, 14.9kW

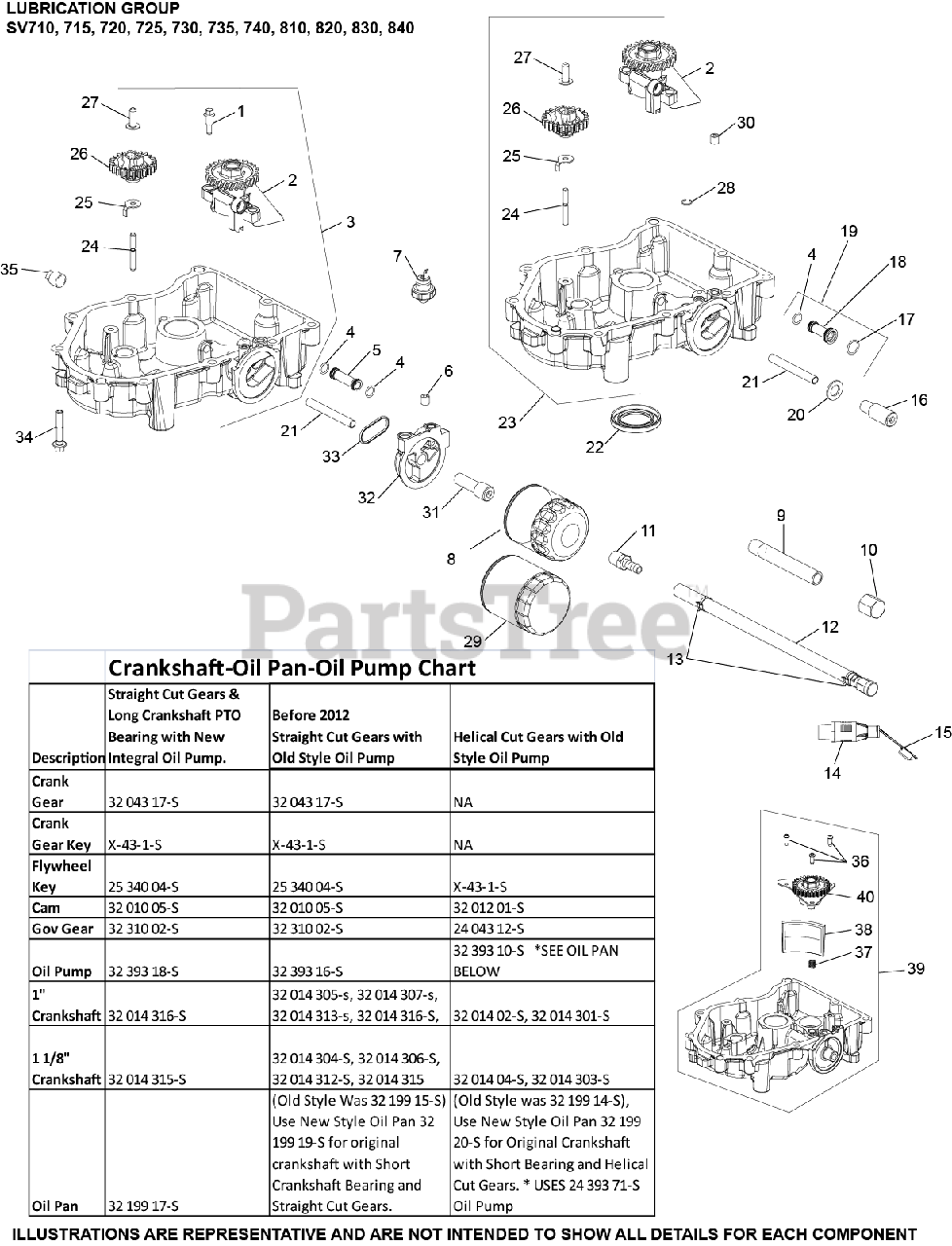

Lubrication Group 3-32- 22 Parts Diagram

  • Title
2

Kohler 32 393 16-S

PUMP, OIL ASSEMBLY - DISCONTINUED

Note: (Before S/N 4228800011)

$

$

Not available

4

Kohler 24 153 01-S

O-RING, OIL PICK-UP

Note: (Before S/N 4228800011)

$2.49

$

In Stock, Qty 8

0

6

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

8

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

16

Kohler 32 136 05-S

NIPPLE, OIL FILTER - DISCONTINUED

Note: (Before S/N 4228800011)

$

$

Not available

17

Kohler 32 153 05-S

O-RING

Note: (Before S/N 4228800011)

$2.49

$

In Stock, only 2 left!

0

18

Kohler 32 123 06-S

TUBE, OIL FEED

Note: (Before S/N 4228800011)

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 32 123 09-S

OIL FEED TUBE ASSEMBLY

Note: (Before S/N 4228800011)

$2.99

$

Usually ships in 2-5 days

0

20

Kohler 32 468 02-S

WASHER, FLAT

Note: (Before S/N 4228800011)

$2.99

$

Usually ships in 2-5 days

0

21

Kohler 32 123 01-S

TUBE, OIL FEED - FILTER TO PAN

Note: (Before S/N 4228800011)

$

$

Not available

22

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

23

Kohler 32 199 14-S

OIL PAN ASSEMBLY - (#3219920S)
(Superseded to 32 199 20-S)

Note: (Before S/N 4228800011)

$

$

Not available

24

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 10

0

25

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

26

Kohler 32 310 02-S

KIT, GOVERNOR GEAR

$9.49

$

In Stock, only 1 left!

0

27

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

28

Kohler 32 018 01-S

RETAINER, PIN - DISCONTINUED

$

$

Not available

30

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

34

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

35

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

36

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

Note: (After S/N 4228800001)

$2.49

$

In Stock, only 2 left!

0

37

Kohler 32 089 06-S

SPRING, COMPRESSION
(Superseded to 24 089 74-S)

Note: (After S/N 4228800001)

$2.49

$

In Stock, only 2 left!

0

38

Kohler 32 162 06-S

SCREEN, OIL

Note: (After S/N 4228800001)

$5.49

$

In Stock, only 2 left!

0

39

Kohler 32 199 17-S

PAN ASSEMBLY, OIL
(Superseded to 32 199 24-S)

Note: (After S/N 4228800001)

$

$

Not available

40

Kohler 32 393 18-S

PUMP ASSEMBLY, OIL

Note: (After S/N 4228800001)

$30.99

$

In Stock, only 1 left!

0
