SV710-3002 - Kohler Courage Twin Engine, Basic Version, 20hp, 14.9kW Fuel System Group 8-32-36 Parts Diagram

Courage Twin Engine, Basic Version, 20hp, 14.9kW

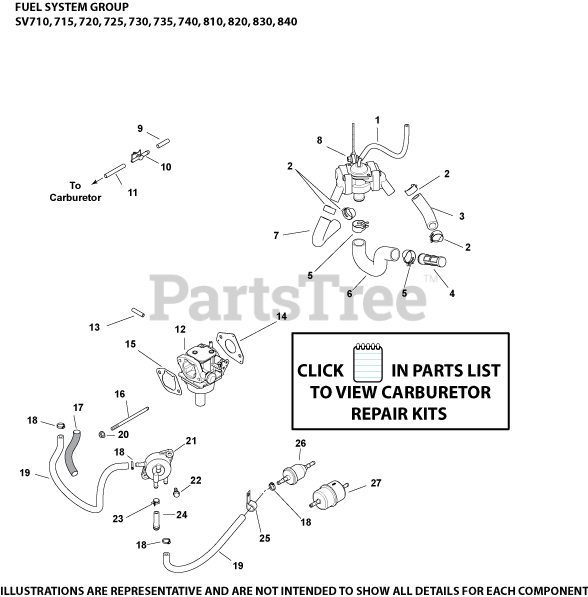

Fuel System Group 8-32-36 Parts Diagram

  • Title
12

Kohler 32 853 22-S

KIT, CARBURETOR

$359.99

$

In Stock, only 2 left!

0

14

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 8

0

15

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

16

Kohler M-629105-S

STUD, M6X1.0X106 - (#2507225S)
(Superseded to 25 072 25-S)

$14.99

$

In Stock, only 2 left!

0

18

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

19

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

20

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

21

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

22

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

25

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

26

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

2408605-S

Kohler 24 086 05-S

SCREW, THROTTLE STOP

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0
