SV710-3002 - Kohler Courage Twin Engine, Basic Version, 20hp, 14.9kW Cylinder Head/Breather Group 4-32-4 SV710-840 Parts Diagram

Courage Twin Engine, Basic Version, 20hp, 14.9kW

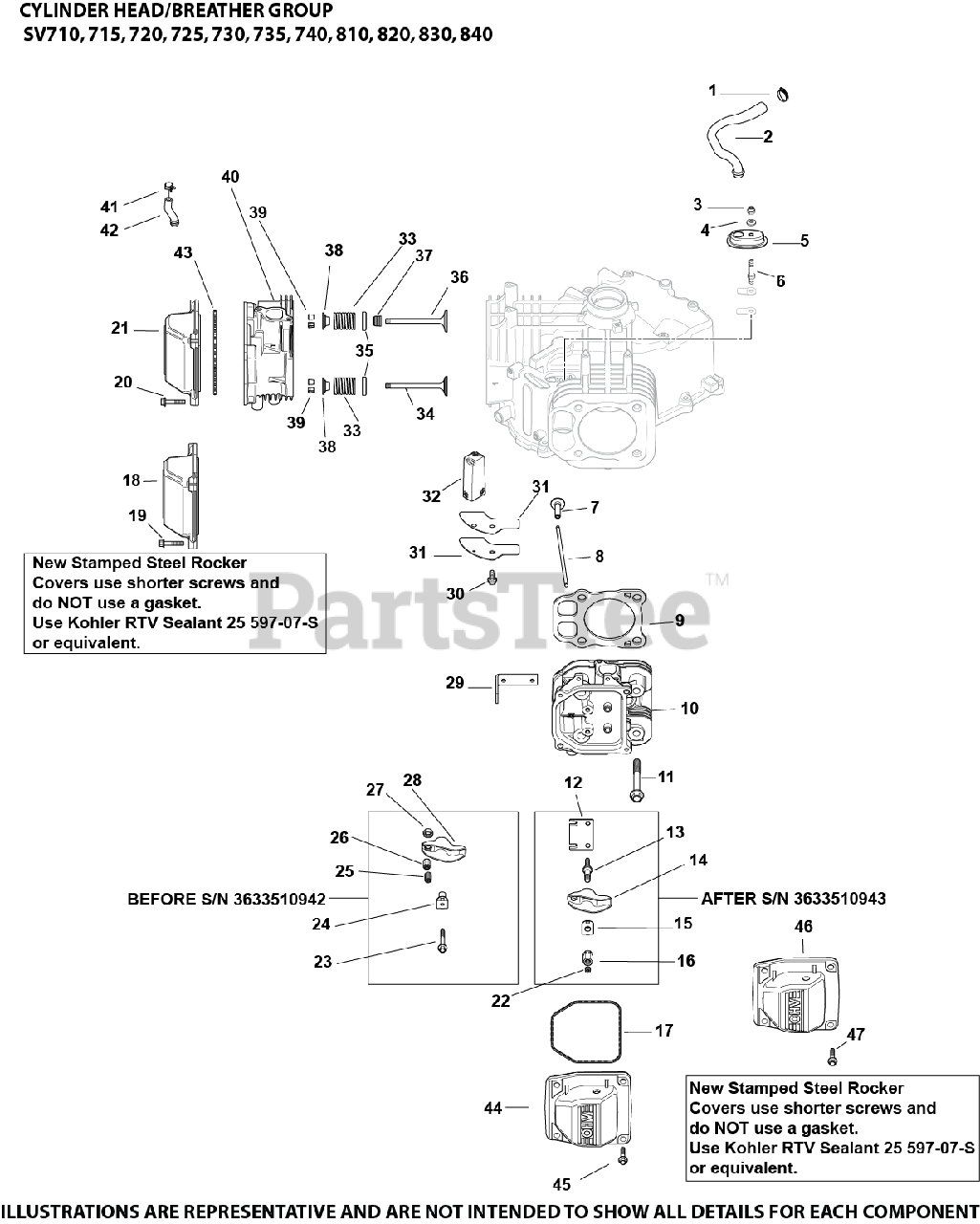

Cylinder Head/Breather Group 4-32-4 SV710-840 Parts Diagram

  • Title

1

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

2

Kohler 32 326 06-S

KIT, BREATHER HOSE

$18.99

$

In Stock, only 1 left!

0

3

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

4

Kohler 32 468 01-S

WASHER, SEALING

$2.99

$

In Stock, only 1 left!

0

5

Kohler 32 081 02-S

KIT, BREATHER HOUSING

$2.49

$

In Stock, only 1 left!

0

6

Kohler 32 072 03-S

STUD, BREATHER COVER

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 32 019 02-S

TAPPET

$13.99

$

In Stock, only 3 left!

0

8

Kohler 32 411 02-S

ROD, PUSH

Note: (Before S/N 3633510942)

$3.49

$

Usually ships in 2-5 days

0

8

Kohler 32 411 04-S

ROD, PUSH

Note: (after S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

9

Kohler 32 841 02-S

KIT, CYLINDER HEAD GASKET

$19.99

$

In Stock, Qty 18

0

10

Kohler 32 318 20-S

USE 32 318 22-S -HEAD ASSEMBLY, CYLINDER (#2)
(Superseded to 32 818 02-S)

$198.99

$

In Stock, only 1 left!

0

11

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 5

0

12

Kohler 32 146 09-S

PLATE, GUIDE

$2.99

$

In Stock, only 3 left!

0

13

Kohler 32 072 04-S

STUD, ROCKER

Note: (after S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

14

Kohler 32 186 03-S

ARM, ROCKER

$6.49

$

In Stock, only 1 left!

0

15

Kohler 25 599 01-S

PIVOT, ROCKER ARM

Note: (after S/N 3633510943)

$2.99

$

In Stock, only 2 left!

0

16

Kohler 32 100 05-S

HEX NUT ASSEMBLY

Note: (AFTER S/N 3633510943)

$3.99

$

In Stock, Qty 7

0

18

Kohler 25 096 09-S

COVER, ROCKER STAMPED STEEL

$14.99

$

In Stock, Qty 5

0

19

Kohler 25 086 374-S

SCREW, PAN HEAD USE 25 086 660-S
(Superseded to 25 086 660-S)

$2.49

$

In Stock, Qty 20+

0

22

Kohler 25 086 168-S

SCREW, SET

$4.49

$

In Stock, only 2 left!

0

23

Kohler 32 086 04-S

SCREW, FLG M6X1.0X45
(Superseded to 25 086 764-S)

Note: (Before S/N 3633510942)

$2.49

$

In Stock, only 2 left!

0

24

Kohler 24 599 02-S

PIVOT, ROCKER ARM

Note: (Before S/N 3633510942)

$2.49

$

In Stock, Qty 8

0

25

Kohler 32 086 03-S

SCREW, SET

Note: (Before S/N 3633510942)

$3.49

$

Usually ships in 2-5 days

0

26

Kohler 25 100 38-S

NUT, HEX

Note: (Before S/N 3633510942)

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 32 100 04-S

NUT, M10X0.75

Note: (Before S/N 3633510942)

$39.99

$

Usually ships in 2-5 days

0

28

Kohler 32 755 06-S

KIT, ROCKER ARM

Note: (Before S/N 3633510942)

$31.99

$

In Stock, only 1 left!

0

29

Kohler 25 445 03-S

STRAP, LIFT

$

$

Not available

30

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

31

Kohler 32 096 04-S

COVER, BREATHER

$2.99

$

Usually ships in 2-5 days

0

32

Kohler 32 050 05-S

FILTER, BREATHER

$2.99

$

In Stock, Qty 6

0

33

Kohler 32 089 05-S

SPRING, VALVE - USE 25 089 17-S
(Superseded to 25 089 17-S)

$2.49

$

Usually ships in 2-5 days

0

34

Kohler 32 016 01-S

VALVE, EXHAUST

$15.99

$

In Stock, Qty 12

0

36

Kohler 32 017 01-S

VALVE, INTAKE

$8.49

$

Usually ships in 2-5 days

0

37

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 18

0

38

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

39

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 7

0

40

Kohler 32 318 19-S

USE 32 318 21-S-HEAD ASSEMBLY, CYLINDER (#1)
(Superseded to 32 818 01-S)

$198.99

$

Usually ships in 2-5 days

0

41

Kohler 25 237 01-S

CLAMP, HOSE

$3.49

$

Usually ships in 2-5 days

0

42

Kohler 32 326 07-S

KIT, FUEL PUMP HOSE

$4.49

$

In Stock, Qty 6

0

46

Kohler 25 096 10-S

COVER, ROCKER STAMPED STEEL
(Superseded to 32 755 42-S)

$11.99

$

In Stock, only 3 left!

0

47

Kohler 25 086 374-S

SCREW, PAN HEAD USE 25 086 660-S
(Superseded to 25 086 660-S)

$2.49

$

In Stock, Qty 20+

0

3275503-S

Kohler 32 755 03-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED (Services 1 Head. Quantities listed are for both heads)

$69.99

$

In Stock, only 1 left!

0

275067-S

Kohler 275067-S

SPACER (.010")

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 2 left!

0
