SV710-3002 - Kohler Courage Twin Engine, Basic Version, 20hp, 14.9kW Air Intake Group 10-32-6 Parts Diagram

Courage Twin Engine, Basic Version, 20hp, 14.9kW

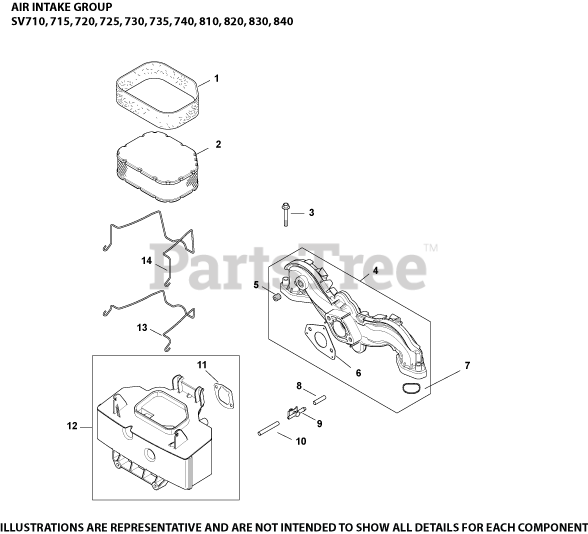

Air Intake Group 10-32-6 Parts Diagram

  • Title

1

Kohler 32 083 05-S

PRE-CLEANER, ELEMENT

$6.99

$

In Stock, only 1 left!

0

2

Kohler 32 083 03-S

ELEMENT, AIR FILTER - Also available Retail Packaged 32 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 6

0

3

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

4

Kohler 24 164 91-S

KIT, INTAKE MANIFOLD USE 24 164 266-S
(Superseded to 24 164 278-S)

$184.99

$

In Stock, only 1 left!

0

5

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

6

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 8

0

7

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0

8

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

9

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

10

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

11

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

12

Kohler 32 094 08-S

BASE, AIR CLEANER - DISCONTINUED

$

$

Not available

13

Kohler 32 344 02-S

LATCH, AIR CLEANER ELEMENT - DISCONTINUED

$

$

Not available
