SV600-0211 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Fuel System 8-20-21 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

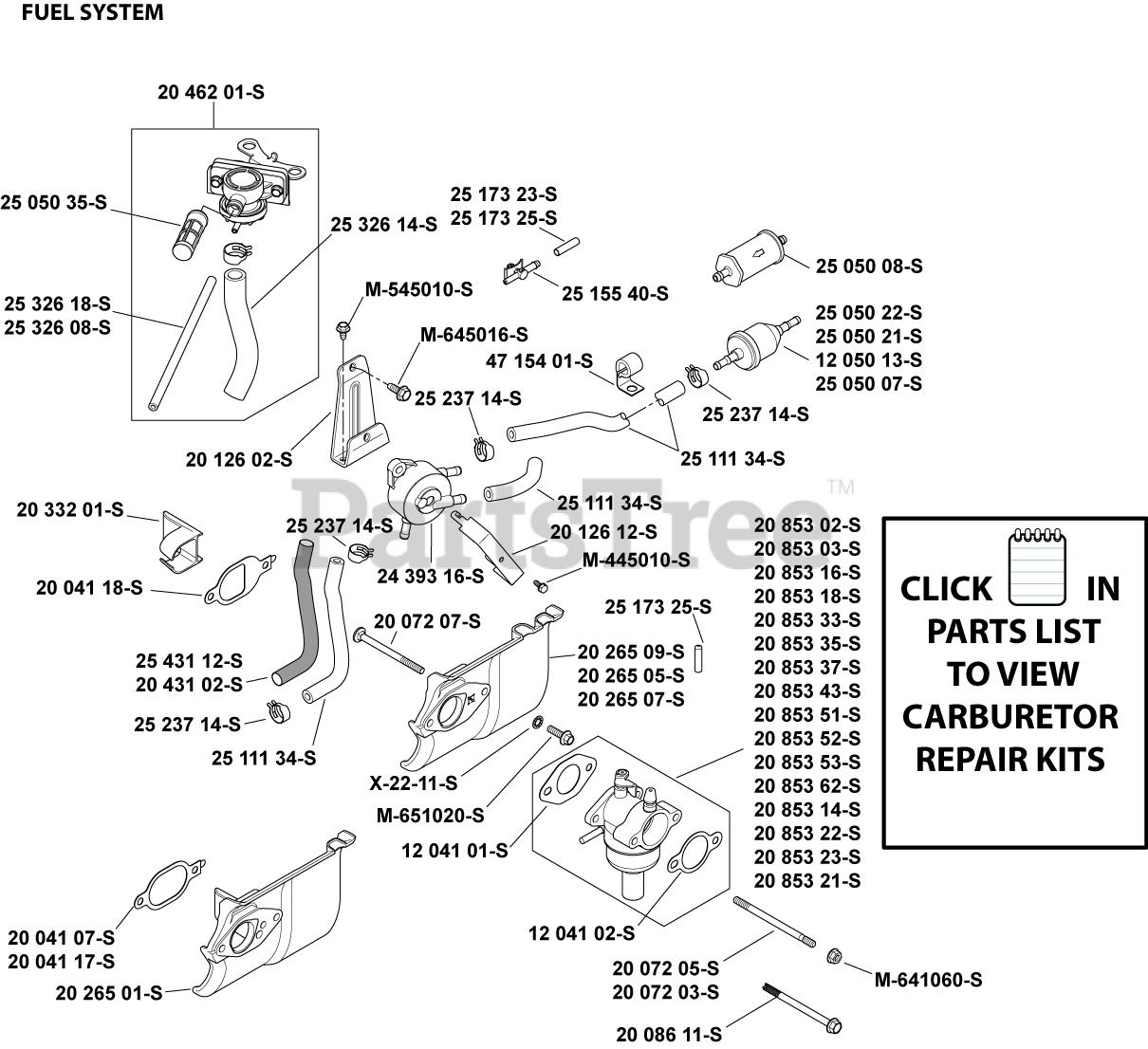

Fuel System 8-20-21 Parts Diagram

  • Title

2004107-S

Kohler 20 041 07-S

GASKET, HEAT DEFLECTOR - USE 20 041 17-S
(Superseded to 20 041 17-S)

$7.49

$

In Stock, only 2 left!

0

2033201-S

Kohler 20 332 01-S

INSERT, INTAKE PORT

$2.99

$

In Stock, Qty 10

0

2026501-S

Kohler 20 265 01-S

DEFLECTOR, HEAT-USE 20 265 09-S
(Superseded to 20 265 09-S)

$29.99

$

Usually ships in 2-5 days

0

M-651020-S

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

2085314-S

Kohler 20 853 14-S

CARB KIT-USE 20 853 33-S
(Superseded to 20 853 33-S)

Note: (INCLUDES 12 041 01-S,12 041 02-S)

$176.99

$

In Stock, only 3 left!

0

1204101-S

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 15

0

1204102-S

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 7

0

2007205-S

Kohler 20 072 05-S

STUD, CARB MOUNTING-USE 20 072 10-S
(Superseded to 20 072 10-S)

$4.99

$

In Stock, Qty 9

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

2012602-S

Kohler 20 126 02-S

BRACKET, FUEL PUMP MOUNTING

$8.99

$

Usually ships in 2-5 days

0

2439316-S

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

2523714-S

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

2505022-S

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

2543112-S

Kohler 25 431 12-S

SLEEVE, FUEL LINE

$10.99

$

In Stock, only 1 left!

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
