SV600-0211 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Crankcase 2-20-16 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

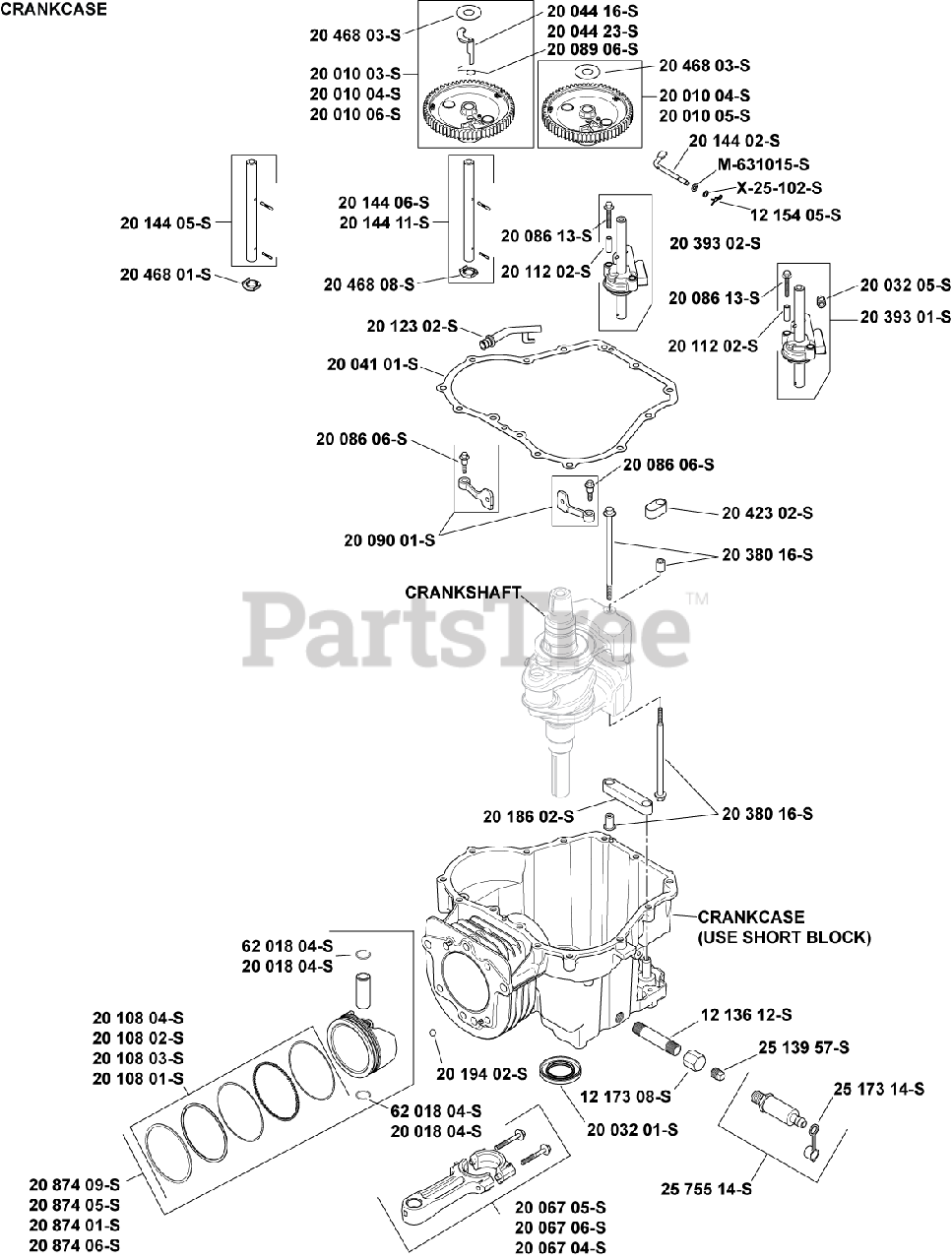

Crankcase 2-20-16 Parts Diagram

  • Title

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2003201-S

Kohler 20 032 01-S

SEAL, OIL - USE 20 032 08-S
(Superseded to 20 032 08-S)

$9.49

$

In Stock, Qty 11

0

2006705-S

Kohler 20 067 05-S

ROD, CONNECTING ASSEMBLY

$80.99

$

Usually ships in 2-5 days

0

2087409-S

Kohler 20 874 09-S

KIT, PISTON W/RING SET -USE 20 874 15-S
(Superseded to 20 874 16-S)

$114.99

$

Usually ships in 2-5 days

0

2010804-S

Kohler 20 108 04-S

RING SET (94MM)

$63.99

$

In Stock, only 1 left!

0

6201804-S

Kohler 62 018 04-S

RETAINER, PISTON PIN

$2.99

$

In Stock, only 3 left!

0

2009001-S

Kohler 20 090 01-S

KIT, CAM LEVER ASSY - USE(#20 090 12-S)
(Superseded to 20 090 12-S)

Note: (includes 20 086 06-S)

$5.49

$

In Stock, only 2 left!

0

2008606-S

Kohler 20 086 06-S

SCREW, SHD THD FRM M6X1X26

$3.99

$

In Stock, Qty 15

0

2004101-S

Kohler 20 041 01-S

GASKET, CLOSURE PLATE USE 20 041 21-S
(Superseded to 20 041 21-S)

$

$

Not available

2012302-S

Kohler 20 123 02-S

TUBE, DRAINBACK

$4.99

$

In Stock, Qty 10

0

1215405-S

Kohler 12 154 05-S

CLIP, HITCH PIN

$2.49

$

Usually ships in 2-5 days

0

M-631015-S

Kohler M-631015-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

X-25-102-S

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

2014402-S

Kohler 20 144 02-S

SHAFT, GOVERNOR CROSS

$14.99

$

In Stock, only 1 left!

0

2039302-S

Kohler 20 393 02-S

KIT, OIL PUMP ASSEMBLY

Note: (includes 20 041 01-S, 20 112 02-S, 20 086 13-S)

$41.99

$

In Stock, only 1 left!

0

2011202-S

Kohler 20 112 02-S

SPACER, OIL PUMP SCREW - (#2008612S)
(Superseded to 20 086 12-S)

$2.49

$

Usually ships in 2-5 days

0

2008613-S

Kohler 20 086 13-S

SCREW, OIL PUMP USE 20 086 12-S
(Superseded to 20 086 12-S)

$2.49

$

Usually ships in 2-5 days

0

2014411-S

Kohler 20 144 11-S

KIT,CAM CENTER SHAFT (EXHAUST)

Note: (includes 20 468 08-S)

$20.99

$

In Stock, only 1 left!

0

2046808-S

Kohler 20 468 08-S

WASHER, THRUST

$2.99

$

In Stock, only 1 left!

0

2001004-S

Kohler 20 010 04-S

KIT, CAMSHAFT ASSEMBLY

Note: (includes 20 468 03-S, 20 044 16-S, 20 089 06-S)

$

$

Not available

2008906-S

Kohler 20 089 06-S

SPRING, ACR

$2.99

$

Usually ships in 2-5 days

0

2004416-S

Kohler 20 044 16-S

WEIGHT, ACR - USE 20 044 32-S
(Superseded to 20 044 32-S)

$13.99

$

In Stock, only 1 left!

0

2046803-S

Kohler 20 468 03-S

WASHER, THRUST -ACR

$2.49

$

In Stock, Qty 10

0

2001004-S

Kohler 20 010 04-S

KIT, CAMSHAFT ASSEMBLY

Note: (includes 20 468 03-S)

$

$

Not available

2046803-S

Kohler 20 468 03-S

WASHER, THRUST -ACR

$2.49

$

In Stock, Qty 10

0

2513957-S

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0
