SV600-0009 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Oil Pan/Lubrication 3-20-10 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

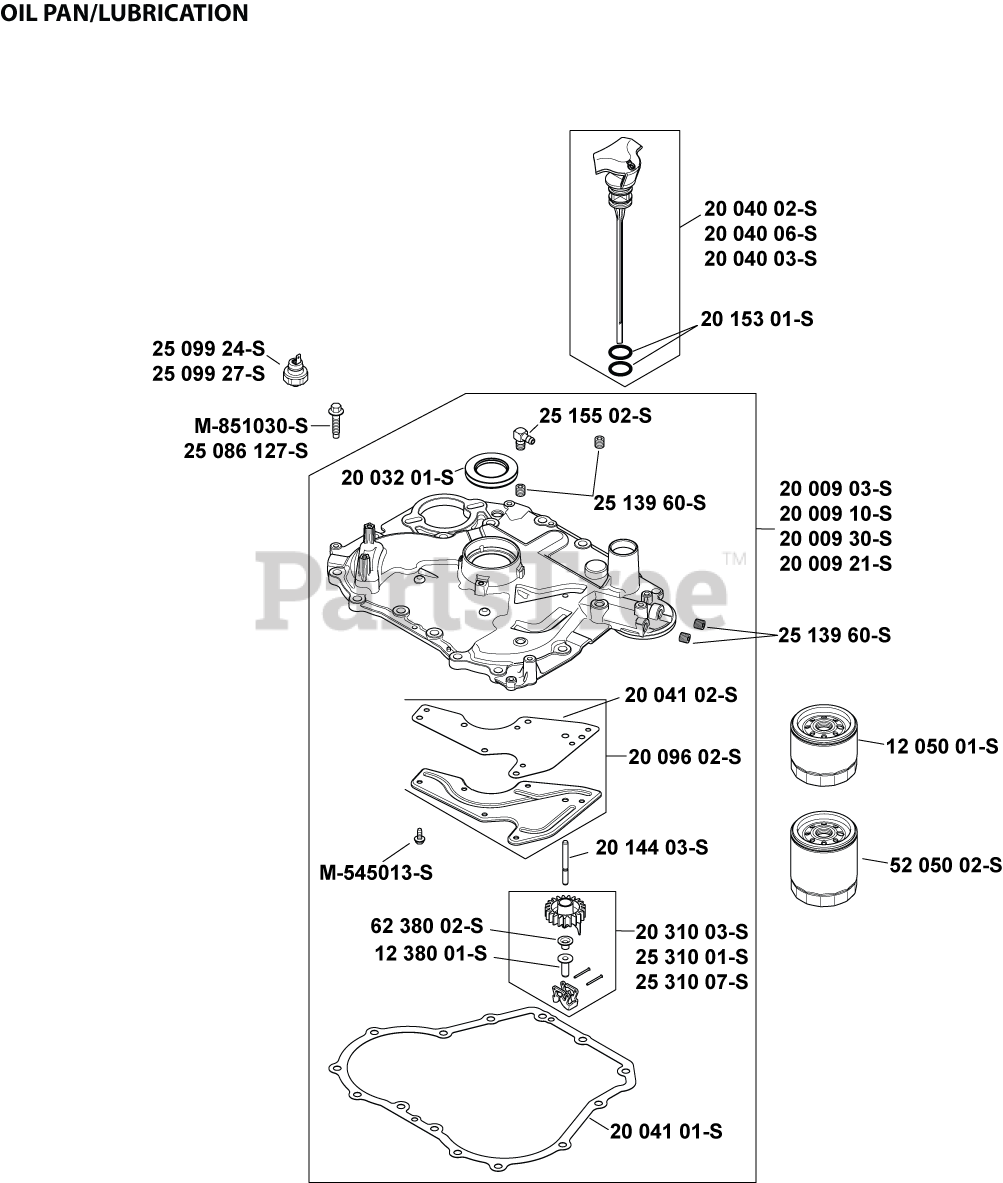

Oil Pan/Lubrication 3-20-10 Parts Diagram

  • Title

2004003-S

Kohler 20 040 03-S

BLADE,DIPSTICK CUB YELLW-USE 20 040 07-S
(Superseded to 20 040 08-S)

Note: (includes 20 153 01-S)

$7.99

$

In Stock, Qty 9

0

2015301-S

Kohler 20 153 01-S

O-RING, DIPSTICK SEAL-USE 25 153 09-S
(Superseded to 25 153 09-S)

$3.49

$

In Stock, only 1 left!

0

2000910-S

Kohler 20 009 10-S

KIT, CLOSURE PLATE ASSEMBLY

Note: (Before S/N 3634500011) (INCLUDES 25 139 60-S, 20 096 02-S, 20 041 02-S, 20 144 03-S, 25 310 07-S, 12 380 01-S, 20 041 01-S, M-545013-S, 20 032 01-S, 25 155 02-S)

$194.99

$

In Stock, only 1 left!

0

2000921-S

Kohler 20 009 21-S

PLATE, CLOSURE ASSY - USE 20 009 30-S
(Superseded to 20 009 35-S)

Note: (After S/N 3634500001) (INCLUDES 25 139 60-S, 20 096 02-S, 20 041 02-S, 20 144 03-S, 25 310 07-S, 12 380 01-S, 20 041 01-S, M-545013-S, 20 032 01-S, 25 155 02-S)

$238.99

$

Usually ships in 2-5 days

0

2513960-S

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

5205002-S

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

2004101-S

Kohler 20 041 01-S

GASKET, CLOSURE PLATE USE 20 041 21-S
(Superseded to 20 041 21-S)

$

$

Not available

2009602-S

Kohler 20 096 02-S

KIT, OIL PASSAGE COVER

Note: (includes 20 041 02-S)

$

$

Not available

2004102-S

Kohler 20 041 02-S

GASKET, OIL PASSAGE

$3.49

$

In Stock, Qty 6

0

2014403-S

Kohler 20 144 03-S

SHAFT, GOVERNOR CROSS

$2.49

$

In Stock, only 4 left!

0

2531001-S

Kohler 25 310 01-S

GOVR GEAR ASSY USE 25 310 07-S
(Superseded to 25 310 09-S)

Note: (includes 12 380 01-S)

$13.99

$

In Stock, only 4 left!

0

1238001-S

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

M-545013-S

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 9

0

25086127-S

Kohler 25 086 127-S

HEX FLANGE SCREW - (#25086421S)
(Superseded to 25 086 421-S)

$2.49

$

In Stock, only 3 left!

0

2003201-S

Kohler 20 032 01-S

SEAL, OIL - USE 20 032 08-S
(Superseded to 20 032 08-S)

$9.49

$

In Stock, Qty 11

0

2509927-S

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 5

0

2515502-S

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0
