SV600-0009 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Ignition/Electrical 5-20-21 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

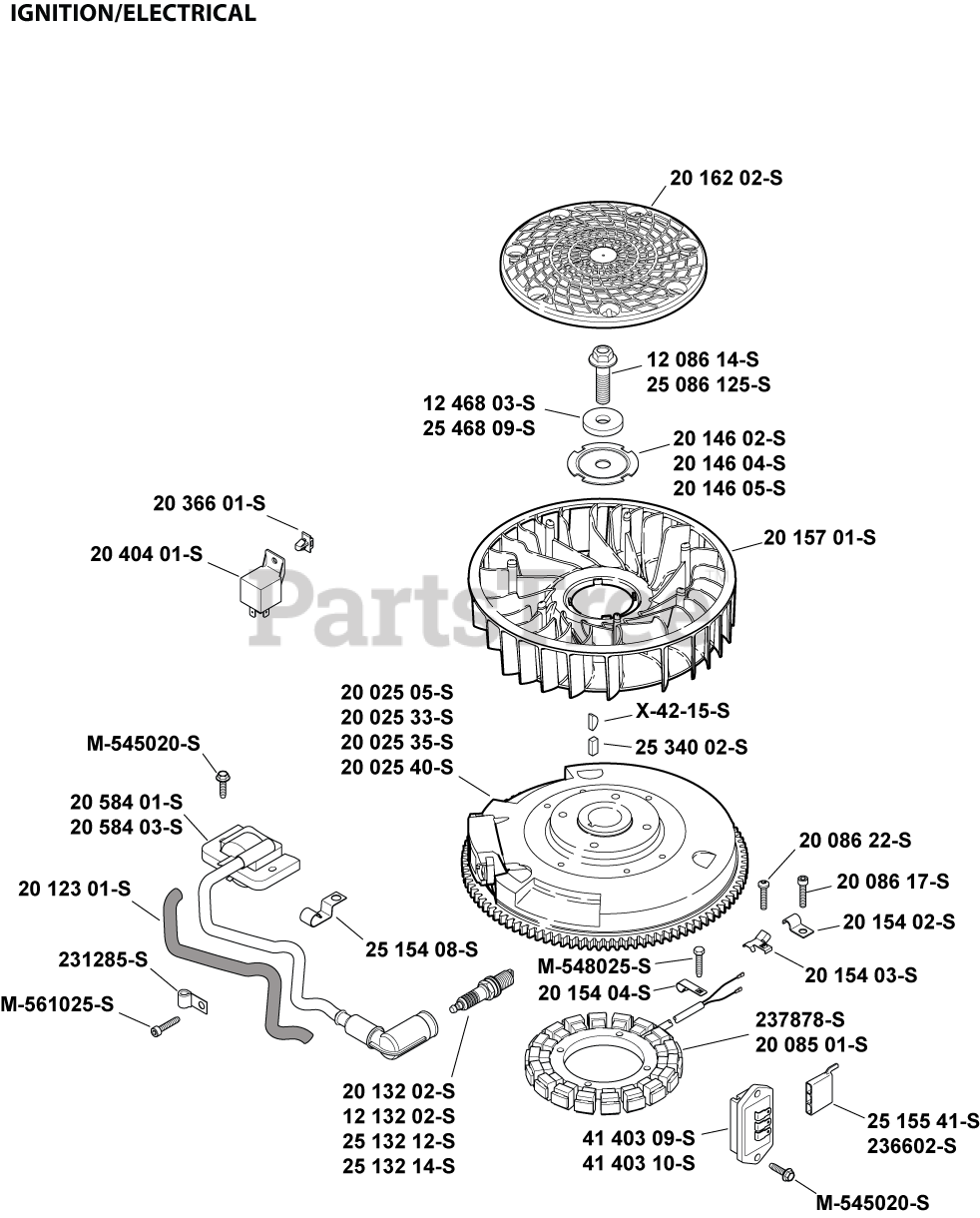

Ignition/Electrical 5-20-21 Parts Diagram

  • Title
2016202-S

Kohler 20 162 02-S

SCREEN, GRASS

$7.99

$

In Stock, Qty 5

0

25086125-S

Kohler 25 086 125-S

SCREW, HEX FLANGE-USE 25 086 362-S
(Superseded to 25 086 362-S)

$3.99

$

In Stock, Qty 7

0

2546809-S

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

2014605-S

Kohler 20 146 05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, Qty 11

0

2015701-S

$24.99

$

In Stock, only 1 left!

0

2534002-S

Kohler 25 340 02-S

KEY, STRAIGHT FLYWHEEL-USE 25 340 04-S
(Superseded to 25 340 04-S)

$3.99

$

In Stock, Qty 10

0

2002540-S

Kohler 20 025 40-S

FLYWHEEL - USE 20 025 46-S
(Superseded to 20 025 44-S)

$251.99

$

In Stock, only 1 left!

0

2008622-S

Kohler 20 086 22-S

SCREW - USE M-548025-S
(Superseded to M-548025-S)

$2.49

$

In Stock, only 2 left!

0

2015404-S

Kohler 20 154 04-S

CLIP, WIRE

$2.99

$

Usually ships in 2-5 days

0

237878-S

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

2515541-S

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

M-545020-S

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

4140310-S

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$

$

Not available

1213202-S

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

2058403-S

Kohler 20 584 03-S

MODULE, IGNITION (CDI FIXED)

$32.99

$

In Stock, only 3 left!

0

M-561025-S

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

2023701-S

Kohler 20 237 01-S

CLAMP, CABLE

Note: NOT ILLUSTRATED

$

$

Not available

2017606-S

Kohler 20 176 06-S

HARNESS, WIRE-6 PIN-USE 20 176 11-S
(Superseded to 20 176 18-S)

Note: NOT ILLUSTRATED

$

$

Not available

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
