SV600-0009 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Head/Valve/Breather 4-20-1 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

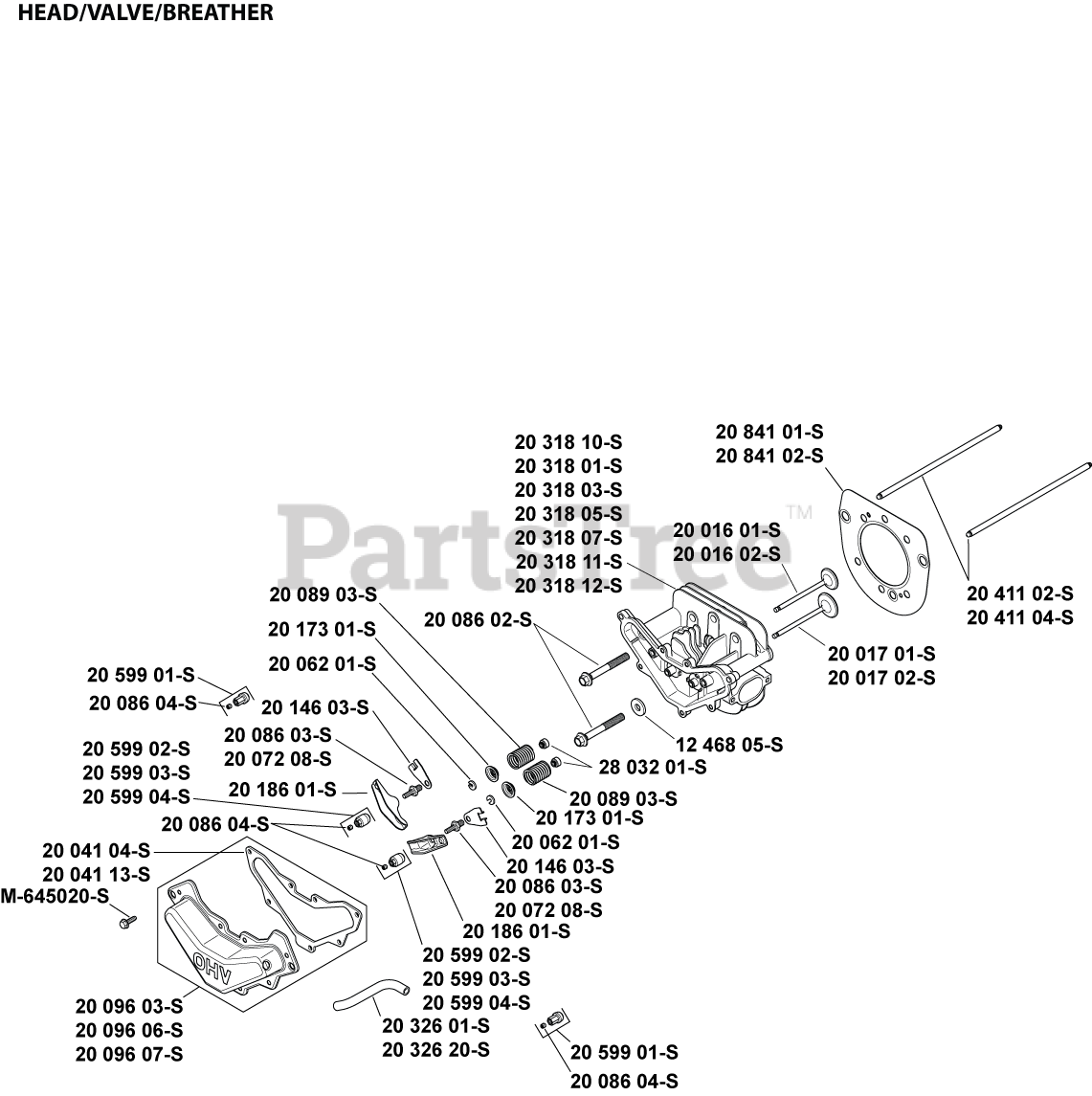

Head/Valve/Breather 4-20-1 Parts Diagram

  • Title

2009607-S

Kohler 20 096 07-S

COVER, VALVE ASSEMBLY - USE 20 096 14-S
(Superseded to 20 096 14-S)

Note: (INCLUDES 20 041 13-S)

$47.99

$

In Stock, only 3 left!

0

2004113-S

Kohler 20 041 13-S

GASKET, VALVE COVER

$13.99

$

In Stock, Qty 18

0

M-645020-S

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

2032620-S

Kohler 20 326 20-S

HOSE, BREATHER USE 20 326 03-S
(Superseded to 20 094 11-S)

$14.99

$

In Stock, only 4 left!

0

2059904-S

Kohler 20 599 04-S

ROCKER PIVOT ASSEMBLY

Note: (INCLUDES 20 086 04-S)

$6.49

$

In Stock, only 3 left!

0

2008604-S

Kohler 20 086 04-S

SCREW, SET

$2.99

$

In Stock, only 2 left!

0

2018601-S

Kohler 20 186 01-S

ARM, ROCKER

$8.99

$

In Stock, Qty 7

0

2007208-S

Kohler 20 072 08-S

STUD, ROCKER

$2.49

$

In Stock, only 2 left!

0

2014603-S

Kohler 20 146 03-S

PLATE, PUSH ROD GUIDE

$2.49

$

In Stock, only 1 left!

0

2006201-S

Kohler 20 062 01-S

LOCK, RETAINER

$2.49

$

In Stock, only 1 left!

0

2017301-S

Kohler 20 173 01-S

CAP, VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

2008903-S

Kohler 20 089 03-S

SPRING, VALVE

$5.49

$

In Stock, only 2 left!

0

1246805-S

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.49

$

Usually ships in 2-5 days

0

2008602-S

Kohler 20 086 02-S

SCREW, CYLINDER HEAD (M10 X 80)

$3.99

$

In Stock, Qty 17

0

2001601-S

Kohler 20 016 01-S

VALVE, EXHAUST

$34.99

$

Usually ships in 2-5 days

0

2001701-S

Kohler 20 017 01-S

VALVE, INTAKE

$28.99

$

In Stock, only 1 left!

0

2084101-S

Kohler 20 841 01-S

KIT, CYLINDER HEAD GASKET

Note: (INCLUDES 12 041 01-S, 12 041 02-S, 12 468 05-S, 20 041 12-S, 20 041 13-S, 20 041 17-S, 20 041 18-S, 20 086 02-S, 25 086 87-S & X-21-1-S)

$38.99

$

In Stock, only 4 left!

0

2041104-S

Kohler 20 411 04-S

PUSHROD, FLANGED TIP-USE 20 411 05-S
(Superseded to 20 411 05-S)

$8.49

$

In Stock, Qty 8

0

2031811-S

Kohler 20 318 11-S

HEAD, CYLINDER-USE 20 318 14-S
(Superseded to 20 318 14-S)

Note: (includes 25 086 87-S, X-21-1-S)

$263.99

$

In Stock, only 1 left!

0

2059903-S

Kohler 20 599 03-S

PIVOT, ROCKER ARM-USE 20 599 04-S
(Superseded to 20 599 04-S)

Note: (INCLUDES 20 086 04-S)

$6.49

$

In Stock, only 3 left!

0

1204101-S

Kohler 12 041 01-S

GASKET, CARBURETOR

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 14

0

1204102-S

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 5

0

2508687-S

Kohler 25 086 87-S

SCREW, HEX SOCKET HEAD CAP

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 3 left!

0

X-21-1-S

Kohler X-21-1-S

WASHER, SPRING LOCK 5/16"

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 3 left!

0

2004112-S

Kohler 20 041 12-S

GASKET, EXHAUST

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2004118-S

Kohler 20 041 18-S

GASKET, HEAT DEFLECTOR

Note: NOT ILLUSTRATED

$6.99

$

In Stock, Qty 13

0

2004117-S

Kohler 20 041 17-S

GASKET, HEAT DEFLECTOR

Note: NOT ILLUSTRATED

$7.49

$

In Stock, only 2 left!

0
