SV25550HV (7085642) - Giant-Vac Push Vacuum, 5.5hp COMMERCIAL COMPONENTS Parts Diagram

Push Vacuum, 5.5hp

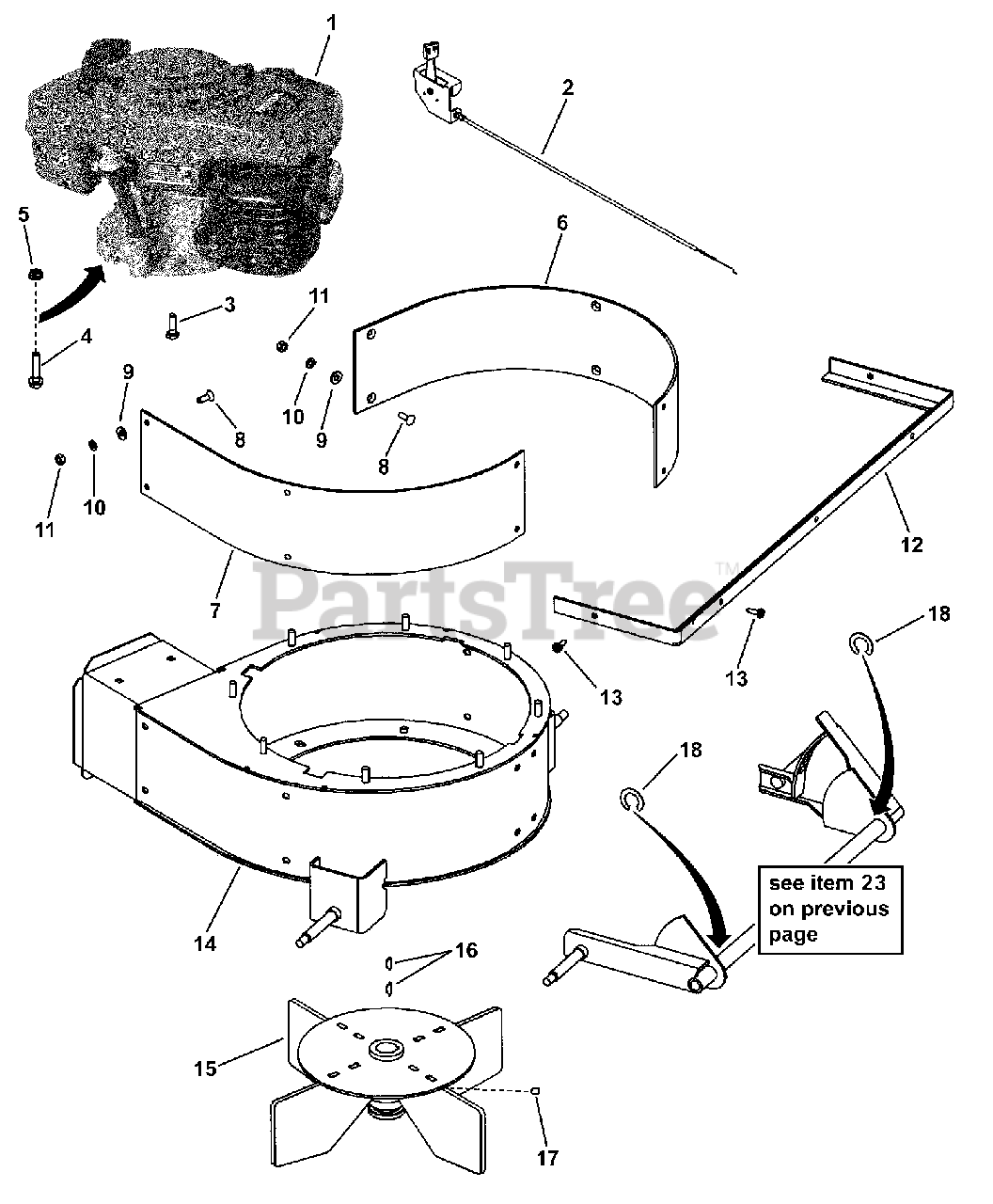

COMMERCIAL COMPONENTS Parts Diagram

  • Title

1

GXV160-K1N1-AH

* ENGINE, 5.5HP Honda GXV, Recoil Start

$

$

Not available

2

Giant-Vac 7075940

CABLE, Throttle, Honda
(Superseded to 7075940YP)

$26.99

$

Usually ships in 2-12 days

0

3

Giant-Vac 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, only 1 left!

0

4

Giant-Vac 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

5

Giant-Vac 7090585

NUT, 5/16-18 Hex Flange Lock
(Superseded to 7090585MA)

$3.99

$

In Stock, Qty 7

0

6

Giant-Vac 7075890

LINER, Vacuum Housing L.H.
(Superseded to 7075890YP)

$61.99

$

Usually ships in 2-12 days

0

7

Giant-Vac 7075889

LINER, Vacuum Housing R.H.
(Superseded to 7075889YP)

$56.99

$

Usually ships in 2-12 days

0

8

Giant-Vac 7092103

SCREW, 1/4-20 x 3/4" Flat Head Machine

$

$

Currently unavailable

9

Giant-Vac 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Giant-Vac 7027223

WASHER, .263 Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

11

Giant-Vac 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

12

Giant-Vac 7075954

FRAME, Inlet Protection
(Superseded to 7075954YP)

$50.99

$

Usually ships in 2-12 days

0

13

Giant-Vac 7092106

SCREW, #10 x 3/4" Hex Washer
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

14

Giant-Vac 7044891

WELDMENT, Upper Housing, Commercial
(Superseded to 7044891YP)

$598.99

$

Usually ships in 2-12 days

0

15

Giant-Vac 7044932

WELDMENT, Impeller, Honda Commercial

$

$

Currently unavailable

16

Giant-Vac 7010783

KEY, #55 Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

17

Giant-Vac 7077680

SETSCREW, 1/4-20 x 3/8", Socket Head Knurled Cup Point

$

$

Not available

18

Giant-Vac 7012271

WASHER, Shim
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0
