SV25550HC (7085638) - Giant-Vac Push Vacuum, 5.5hp ENGINE, IMPELLER, HOUSING, WHEELS Parts Diagram

Push Vacuum, 5.5hp

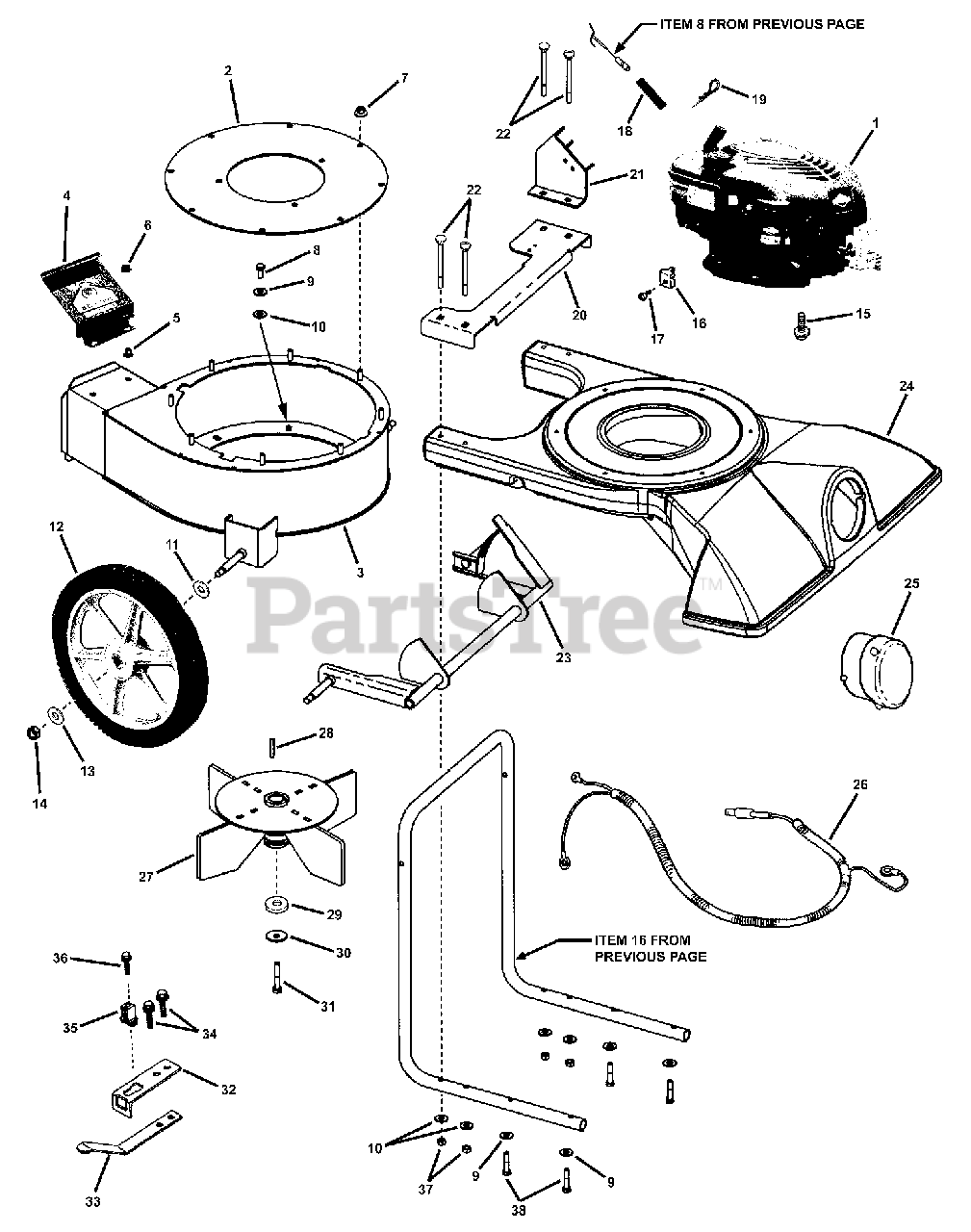

ENGINE, IMPELLER, HOUSING, WHEELS Parts Diagram

  • Title

1

123K02-0140-E1

* ENGINE, 6.5HP B&S Quantum Modular XRM, Recoil Start

Note: was 123K02-0126-E1

$

$

Not available

2

Giant-Vac 7034902

PLATE, Engine Base Vacuum Universal
(Superseded to 7034902YP)

Note: replaces 7075793

$62.99

$

Usually ships in 2-12 days

0

3

Giant-Vac 7044853

WELDMENT, Upper Housing
(Superseded to 7044853SM)

$481.99

$

Usually ships in 2-12 days

0

4

Giant-Vac 7075807

ASSEMBLY, Hinge Door
(Superseded to 7075807YP)

$59.99

$

Usually ships in 2-12 days

0

5

Giant-Vac 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, GR5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

6

Giant-Vac 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

7

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Giant-Vac 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Giant-Vac 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

11

Giant-Vac 7026257

WASHER, 1/2" Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 10

0

12

Giant-Vac 7058668

WHEEL ASSEMBLY, 14.00 x 2"
(Superseded to 7058668SM)

$74.99

$

Usually ships in 2-12 days

0

13

Giant-Vac 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Giant-Vac 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

15

Giant-Vac 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

16

Giant-Vac 7023153

CLAMP, Casing
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

17

Giant-Vac 7023154

SCREW, #10-32 x 5/8" Hex Head Self-Tap
(Superseded to 7023154YP)

$

$

Not available

18

Giant-Vac 7025062

SPRING, Compression

$

$

Currently unavailable

19

Giant-Vac 7091193

HAIRPIN, 29/32" Cotter
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

20

Giant-Vac 7075802

PLATE, Reinforcing
(Superseded to 7075802YP)

$39.99

$

Usually ships in 2-12 days

0

21

Giant-Vac 7044886

WELDMENT, Cable Anchor
(Superseded to 7044886YP)

$51.99

$

Usually ships in 2-12 days

0

22

Giant-Vac 7058271

BOLT, 5/16-18 x 3-1/2" Short Neck Carriage, GR5
(Superseded to 7058271YP)

$5.99

$

Usually ships in 2-12 days

0

23

Giant-Vac 7044885

WELDMENT, Axle Ass'y, Drag Link
(Superseded to 7044885YP)

$

$

Not available

24

Giant-Vac 7075836

HOUSING, Lower
(Superseded to 7075836SM)

$329.99

$

Usually ships in 2-12 days

0

25

Giant-Vac 7075806

PLUG, Hose Port
(Superseded to 7075806SM)

$59.99

$

Usually ships in 2-12 days

0

26

Giant-Vac 7026247

WIRE HARNESS, Interlock
(Superseded to 7026247YP)

$9.49

$

Usually ships in 2-12 days

0

27

Giant-Vac 7045218

WELDMENT, Impeller
(Superseded to 7045218SM)

$220.99

$

Usually ships in 2-12 days

0

28

Giant-Vac 7012315

KEY, 1/4" Square x 1-7/16" long
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

29

Giant-Vac 7091962

WASHER, .468 I.D. x 1-5/8" O.D. x 1/4" thick
(Superseded to 7091962SM)

$7.99

$

In Stock, only 1 left!

0

30

Giant-Vac 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

31

Giant-Vac 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

32

Giant-Vac 7032416

BRACKET, Interlock
(Superseded to 7032416YP)

$21.99

$

Usually ships in 2-12 days

0

33

Giant-Vac 7032417

SPRING, Interlock
(Superseded to 7032417YP)

$15.99

$

Usually ships in 2-12 days

0

34

Giant-Vac 7090539

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

35

Giant-Vac 7012048

INSULATOR
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

36

Giant-Vac 7090379

SCREW, # 8-18 x 3/4 Sheet Metal
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

37

Giant-Vac 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

38

Giant-Vac 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0
