SV2400 (0415-0) - Generac 2,400 Watt Portable Generator Generator SV 2400 Parts Diagram

2,400 Watt Portable Generator

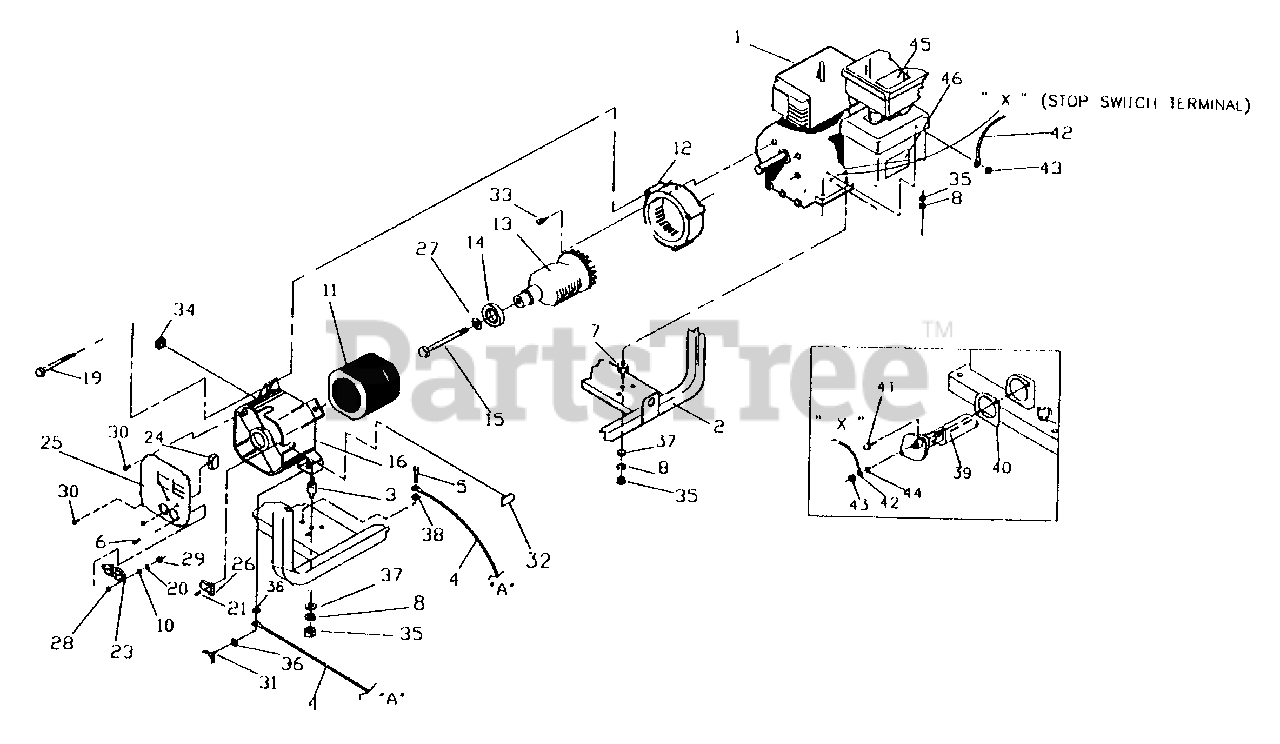

Generator SV 2400 Parts Diagram

  • Title

1

Briggs & Stratton 96297

Briggs & Stratton 5HP Engine

$

$

Currently unavailable

2

Briggs & Stratton 91018

Cradle Assembly

$

$

Not available

3

Briggs & Stratton 85652

Vibration Mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

4

14353621

Ground Wire

$

$

Not available

5

Briggs & Stratton 86292

#10 Self Drilling Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

M4-0.7 x 10 Pan Head Machine Screw

$

$

Not available

7

Briggs & Stratton 85651

Vibration Engine Mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91824

Stator Assembly
(Superseded to 7091824YP)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365F

Engine Adaptor Housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91820

Rotor Assembly

$

$

Not available

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

5/16"-24 x 6.25 Rotor Bolt

$

$

Not available

16

Briggs & Stratton 66825B

Rear Bearing Carrier

$

$

Currently unavailable

19

Briggs & Stratton 86308D

M6-1.00 x 85mm Stator Bolt
(Superseded to 86308DGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

#8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.80 x 16mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 Volts AC, 20 Amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

20 Amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72092

Receptacle Panel
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91825

Brush & Bridge Rectifier

$

$

Not available

27

Briggs & Stratton 67451

Flat Washer (Special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.80 x 10mm Taptite Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

M6-1.0 x 16 Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

RBC Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16"-24 x 3/4" Hex Head Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

36

Briggs & Stratton 26850

M6-1/4" Shakeproof Washer

$

$

Not available

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 22769

#10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 88977

Low Oil Shut Down

$

$

Currently unavailable

40

Briggs & Stratton 91841

Low Oil Shut Down Gasket

$

$

Not available

41

Briggs & Stratton 24679

#10-32 x 3/4" Hex Head Screw
(Superseded to 24679GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91842A

Low Oil Shut Down Wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22471

18-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93639

English Danger Decal

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93640

Spanish Danger Decal

$1.49

$

Usually ships in 2-12 days

0
